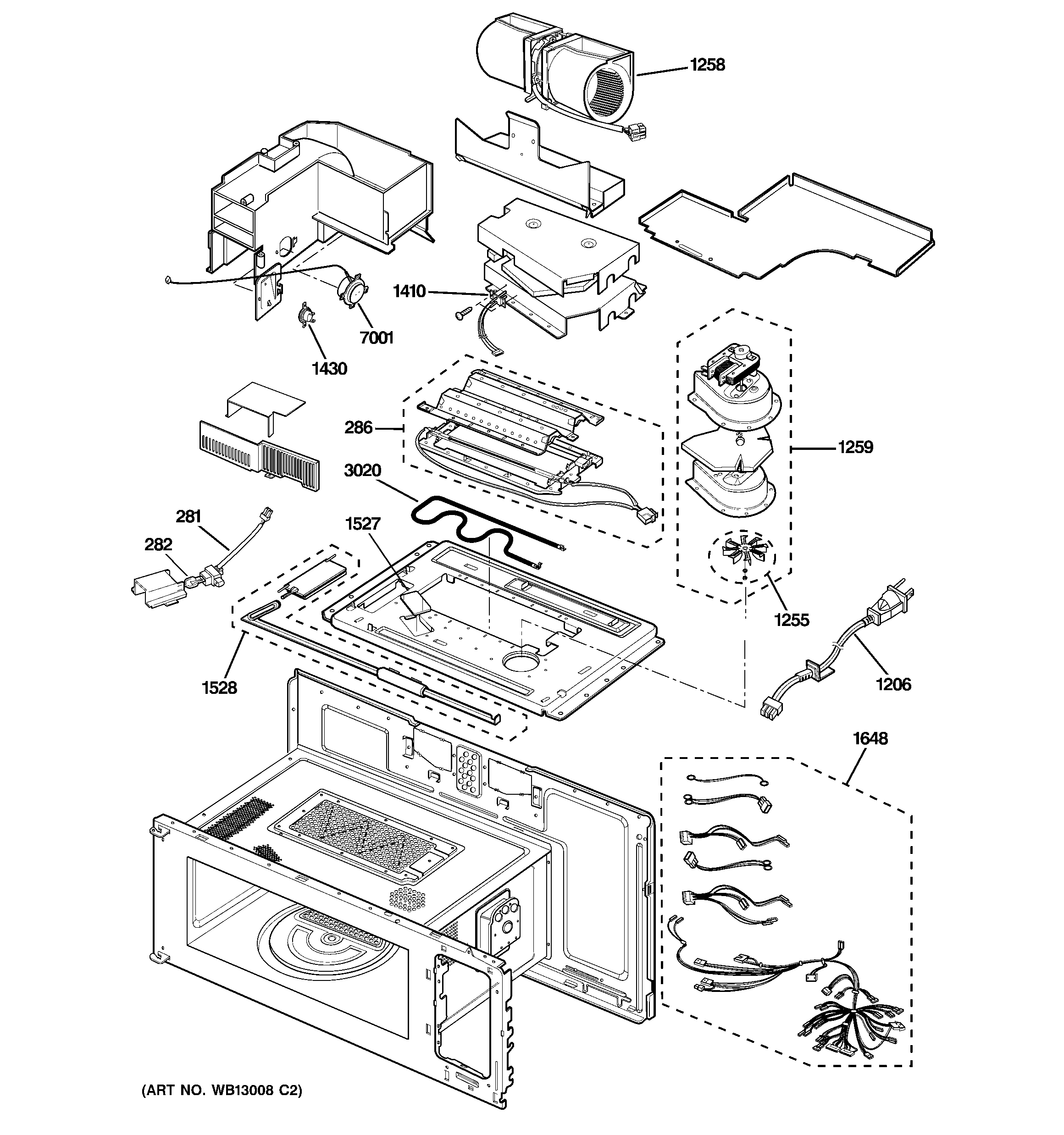

SCA1000HCC02 INTERIOR PARTS (2)
Written by
in
SCA1000HCC02 INTERIOR PARTS (2)
Products
| Position | Product |
|---|---|
| 281 | LAMP REFLECTOR ASM |
| 282 | WB25X10019 GE Range Oven Cooktop Appliance Halogen Lamp 20W 120V |
| 286 | REFLECTOR ASSY |
| 1206 | POWER CORD ASM |
| 1255 | FAN BLADE ASSY |
| 1258 | WB26X36106 GE Ventilation Motor |
| 1259 | BLOWER ASSY |
| 1410 | THERMISTOR |
| 1430 | WB20X10048 GE Oven Thermostat |
| 1527 | GEN WB06X10317 |
| 1528 | GEN WB06X10318 |
| 1648 | LEAD WIRE TOTAL ASM |
| 3020 | HEATER |
| 7001 | SENSOR ASS'Y |
