SCA1001FSS001 MICROWAVE

SCA1001FSS001 MICROWAVE

Written by

in

SCA1001FSS001 MICROWAVE

Products

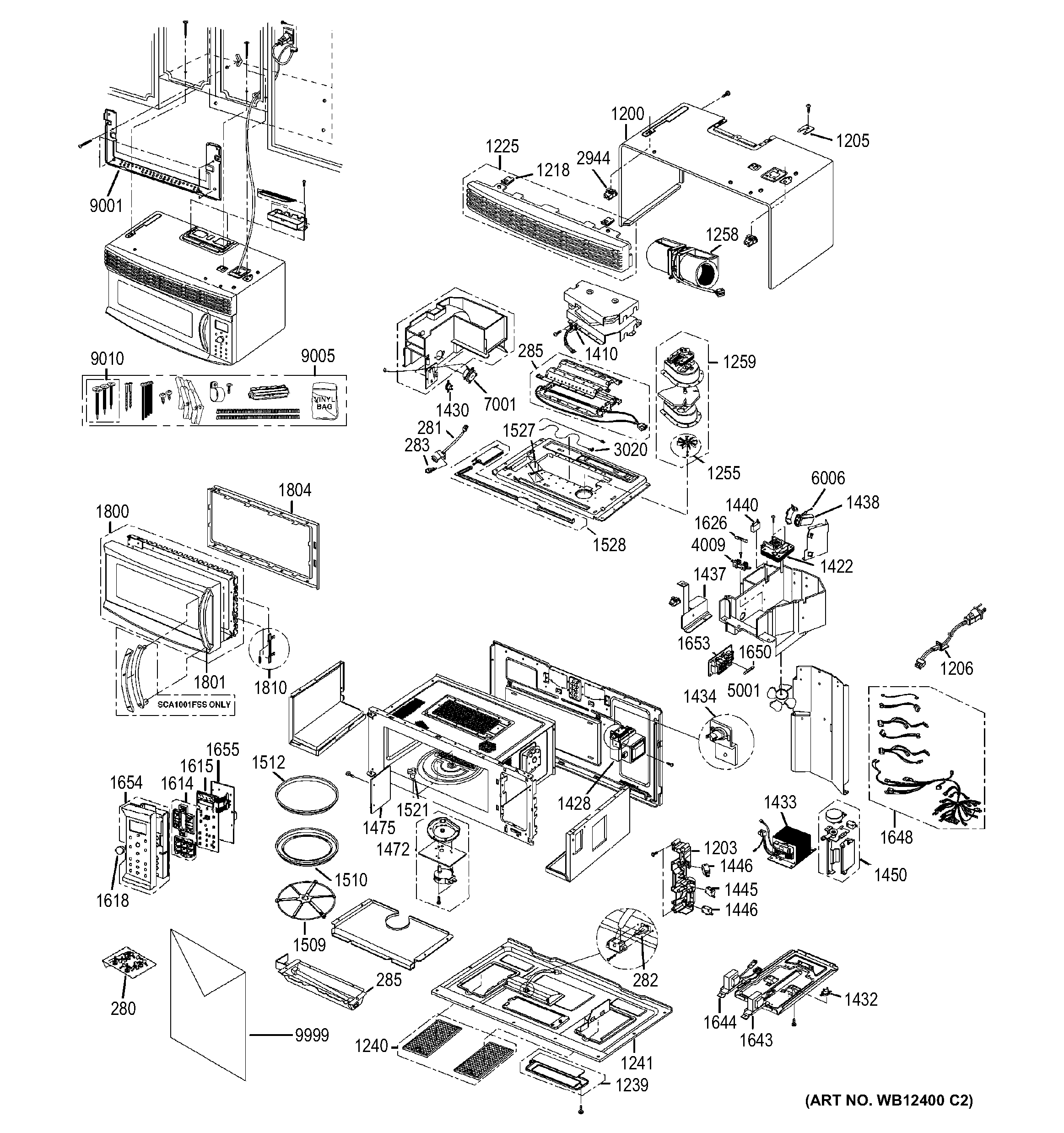

PositionProduct
280HARDWARE ASM BAG
281LAMP REFLECTOR ASSY
282WB01X10239 GE Halogen Lamp 20W 12V G4 Base
283WB36X10163 GE Halogen Lamp 10W 12V G4 2 Pin Base
285REFLECTOR ASSY
1200GEN WB56X10205
1203GEN WB06X10216
1205WB06X10308 GE Microwave Power Cord Cover
1206GEN WB18X10150
1218GEN WB02X10625
1225GEN WB07X10429
1239GEN WB36X10178
1240WB06X10309 GE Grease Filter
1241BASE PLATE
1255FAN BLADE ASSY
1258WB26X36106 GE Ventilation Motor
1259BLOWER ASSY
1410THERMISTOR
1422GEN WB26X10101
1428MAGNETRON ASM
1430WB20X10048 GE Oven Thermostat
1432GEN WB21X10045
1433GEN WB20X10022
1434MGT THERMO ASSY
1437GEN WB06X10316
1438CAPACITOR, H. V.
1440WB27X10329 GE Oven Capacitor
1445WB24X25397 GE Oven Interlock Monitor Switch
1446PRIMARY INTERLOCK SWITCH
1450GEN WB06X10314
1472GEN WB26X10099
1475GEN WB06X10311
1509GEN WB06X10315
1510WB49X10129 GE Oven Microwave Turntable Glass Cooking Tray
1512WB49X10240 GE Oven Range Cooking Tray
1521WB06X10312 GE Oven Shaft Assembly
1527GEN WB06X10317
1528GEN WB06X10318
1614BUTTON ASS'Y
1615KEY PCB ASSY
1618KNOB SS
1626WB27X10928 GE Oven Line Fuse
1643GEN WB20X10021
1644TRANSFORMER POWER
1648LEAD WIRE ASSY
1650FUSE,12A
1653RELAY PCB
1654CONTROL PANEL ASSY
1655SMART BOARD
1800DOOR ASS'Y
1801HANDLE DOOR
1804GEN WB55X10428
1810WB10X10021 GE Oven Latch and Spring
2944WB01X10124 GE Microwave Nut Assembly
3020HEATER
4009FUSE HOLDER
5001FAN
6006DIODE-CABLE
7001SENSOR ASS'Y
9001WB56X35363 GE Mounting Bracket
9005GEN WB64X10003
9010GEN WB01X10125
9999USE & CARE
9999COOKBOOK
9999INSTALLATION INSTRUCTION
9999COOKING GUIDE SHEET
9999TEMPLATE TOP
9999MINI-MANUAL
9999PM TEMPLATE
9999DVD/VHS
