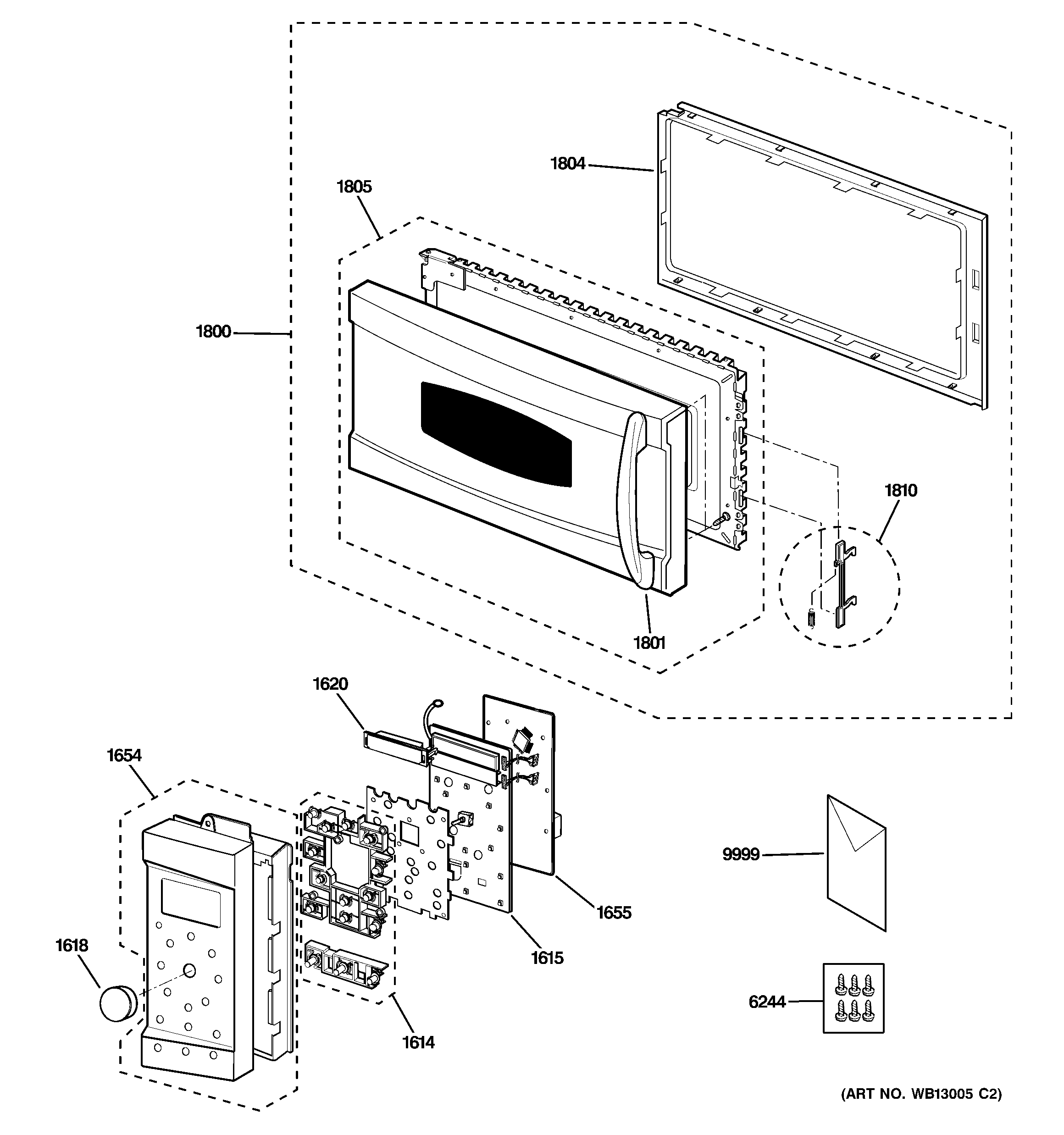

SCA1001FSS02 CONTROL PANEL & DOOR PARTS

SCA1001FSS02 CONTROL PANEL & DOOR PARTS

Written by

in

SCA1001FSS02 CONTROL PANEL & DOOR PARTS

Products

PositionProduct
1614BUTTON ASS'Y
1615KEY PCB ASSY
1618KNOB SS
1620LED HOLDER ASSY
1654CONTROL PANEL ASSY
1655SMART BOARD
1800DOOR ASS'Y
1801HANDLE DOOR
1804GEN WB55X10428
1805DOOR GROSS SUB ASM SS
1810WB10X10021 GE Oven Latch and Spring
6244WB01X32574 GE Oven Installation Hardware
9999COOKBOOK
9999MINI – MANUAL
9999MANUAL,OWNERS
9999TEMPLATE REAR
9999TEMPLATE TOP
9999INSTALLATION INSTRUCTION
