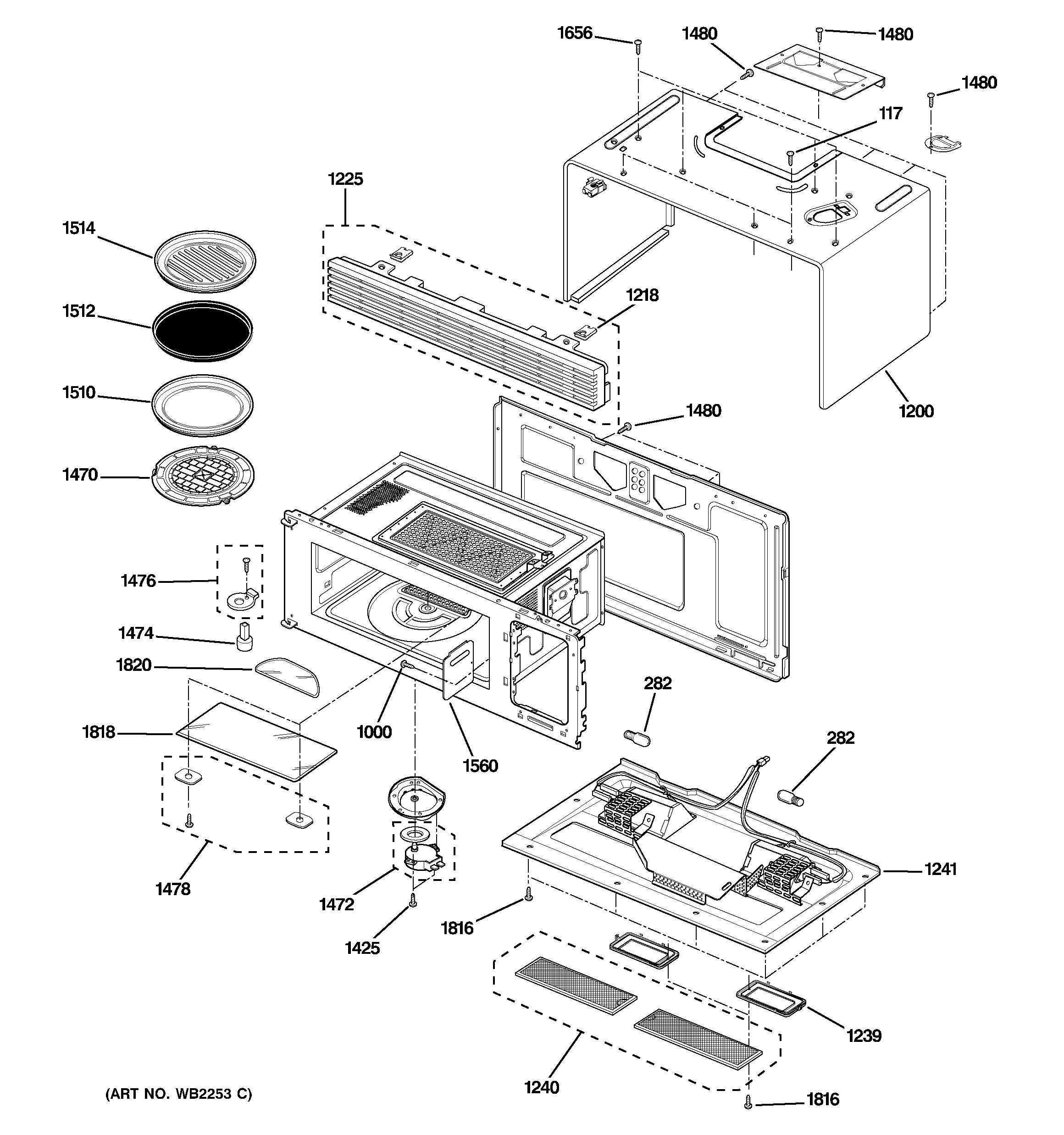

SCA2000FBB01 OVEN CAVITY PARTS

SCA2000FBB01 OVEN CAVITY PARTS

Written by

in

SCA2000FBB01 OVEN CAVITY PARTS

Products

PositionProduct
117WB01X10134 GE Oven Tapping Pan Head Screw
282WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
1000GEN WB01X10201
1200GEN WB56X10137
1218GEN WB02X10625
1225GRILLE ASM
1239COOKTOP GLASS ASM
1240GREASE FILTER ASM
1241BASE PLATE SUB ASM
1425SCREW TAPPING,PAN HEAD
1470TURNTABLE
1472MOTOR ASM
1474SHAFT – TURNTABLE
1476GEN WB36X10128
1478GEN WB36X10127
1480WB1X1514 GE Oven Screw
1510TRAY – CERAMIC
1512WB49X10240 GE Oven Range Cooking Tray
1514WB49X10241 GE Oven Non-Stick Grille Pan Tray
1560WAVE GUIDE-MICA COVER
1656WB1X1515 GE Oven Screw
1816SCREW TAPPING,TRUSS HEAD
1818WB36X10129 GE Oven Upper Glass Cover
1820LOWER GLASS COVER
