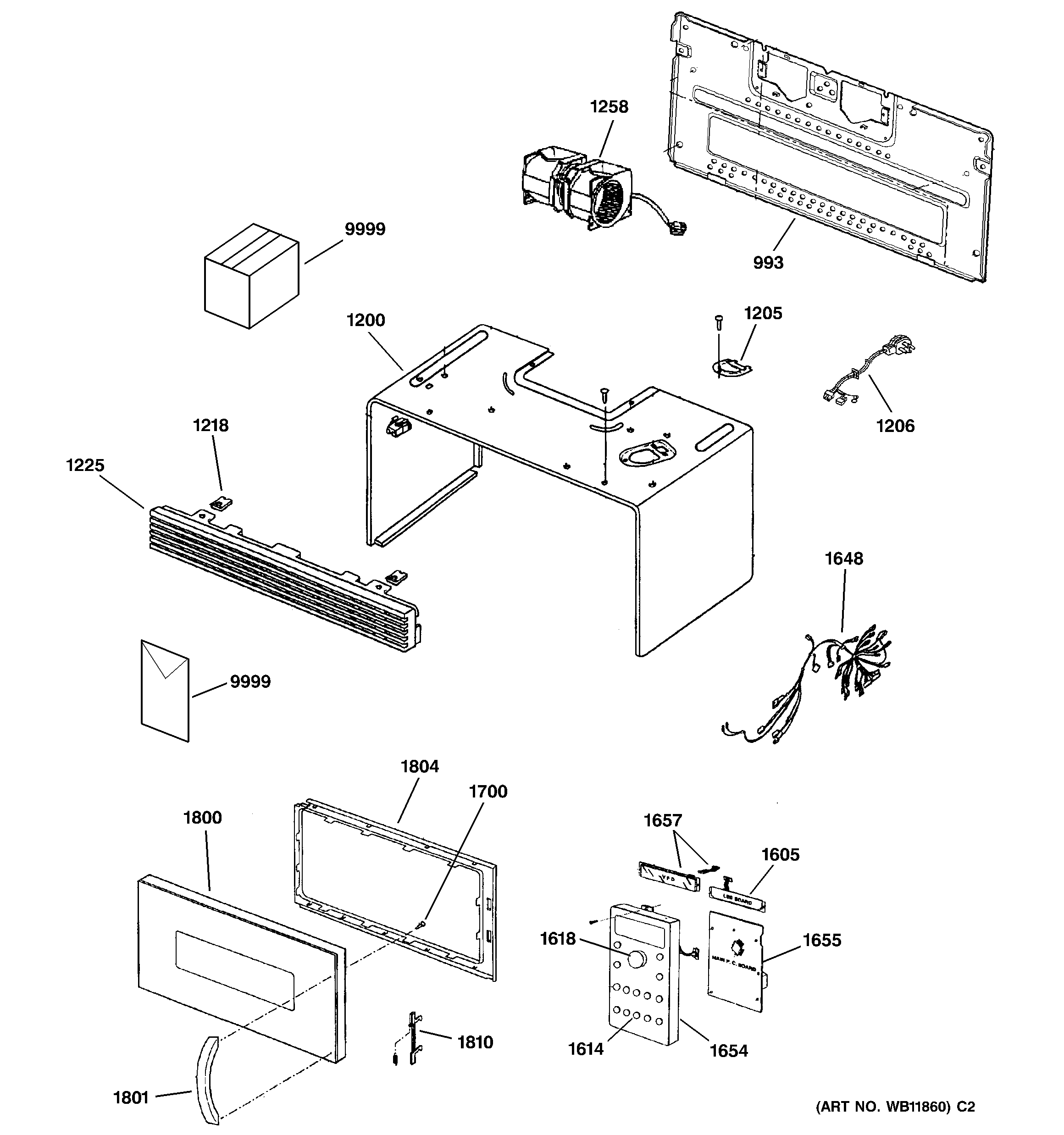

SCA2001BSS03 DOOR, CONTROLS, GRILLE & CASE

SCA2001BSS03 DOOR, CONTROLS, GRILLE & CASE

Written by

in

SCA2001BSS03 DOOR, CONTROLS, GRILLE & CASE

Products

PositionProduct
993GEN WB56X10135
1200GEN WB56X10137
1205GEN WB18X10094
1206WB18X10419 GE Oven Power Cord Assembly
1218GEN WB02X10625
1225GRILLE ASM
1258GEN WB26X10064
1605LED BOARD ASM
1614GEN WB03X10087
1618GEN WB03X10077
1648GEN WB18X10095
1654CONTROL PANEL ASS'Y
1655SMART BOARD, MAIN ASM
1657GEN WB27X10336
1700WB02X10729 GE Oven Main PCB Assembly Screw
1800GEN WB55X10326
1801GEN WB15X10042
1804GEN WB55X10297
1810WB10X10021 GE Oven Latch and Spring
9999COOK BOOK
9999GEN 49-40068
9999GEN 49-40067S-3
9999GEN 31-20919
9999GEN WB64X10003
9999TEMPLATE TOP CAB
9999GEN 28-X129
