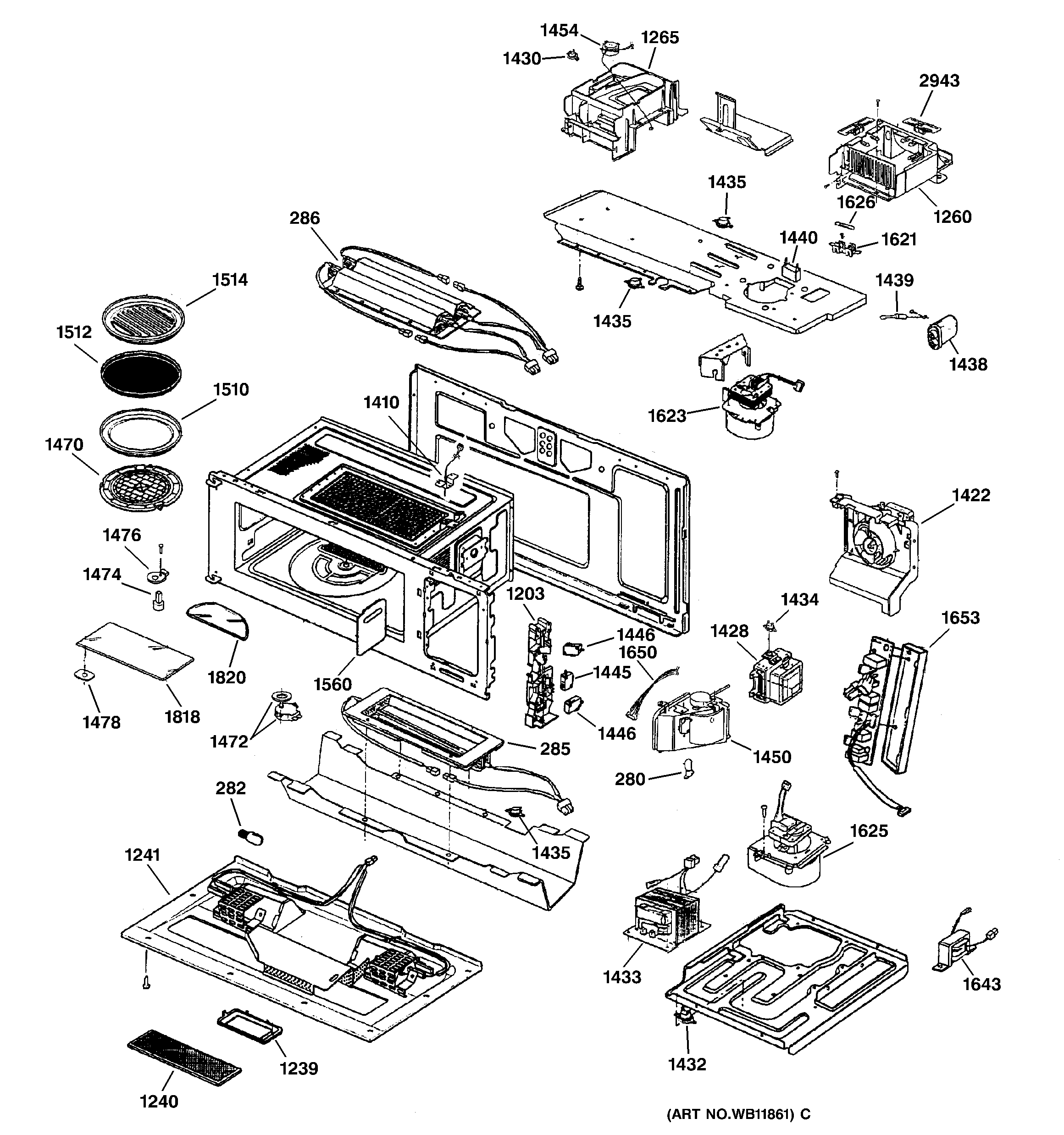

SCA2001BSS03 UNIT PARTS

SCA2001BSS03 UNIT PARTS

Written by

in

SCA2001BSS03 UNIT PARTS

Products

PositionProduct
280WB36X10131 GE Microwave Oven Cavity Lamp 30W 125V
282WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
285BTM HALOGEN LAMP ASM
286UPPER HALOGEN LAMP ASM
1203GEN WB06X10216
1239COOKTOP GLASS ASM
1240GREASE FILTER ASM
1241BASE PLATE SUB ASM
1260GEN WB38X10027
1265GEN WB38X10026
1410GEN WB27X10326
1422MAGNETRON FAN ASM
1428MAGNETRON ASM
1430WB20X10048 GE Oven Thermostat
1432GEN WB21X10045
1433GEN WB27X10331
1434TCO, MAG
1435TCO UPPER&LOWER HALOGEN
1438CAPACITOR,HIGH VOLTA
1439DIODE-CABLE
1440WB27X10329 GE Oven Capacitor
1445WB24X25397 GE Oven Interlock Monitor Switch
1446PRIMARY INTERLOCK SWITCH
1450DAMPER DOOR ASM
1454SENSOR ASS'Y
1470TURNTABLE
1472MOTOR ASM
1474SHAFT – TURNTABLE
1476GEN WB36X10128
1478GEN WB36X10127
1510TRAY – CERAMIC
1512WB49X10240 GE Oven Range Cooking Tray
1514WB49X10241 GE Oven Non-Stick Grille Pan Tray
1560WAVE GUIDE-MICA COVER
1621FUSE HOLDER
1623UPPER BLOWER
1625LOWER BLOWER
1626WB27X10928 GE Oven Line Fuse
1643TRANSFORMER,POWER
1650FUSE THERMAL
1653GEN WB27X10334
1818WB36X10129 GE Oven Upper Glass Cover
1820LOWER GLASS COVER
2943MOUNTING NUT ASM
