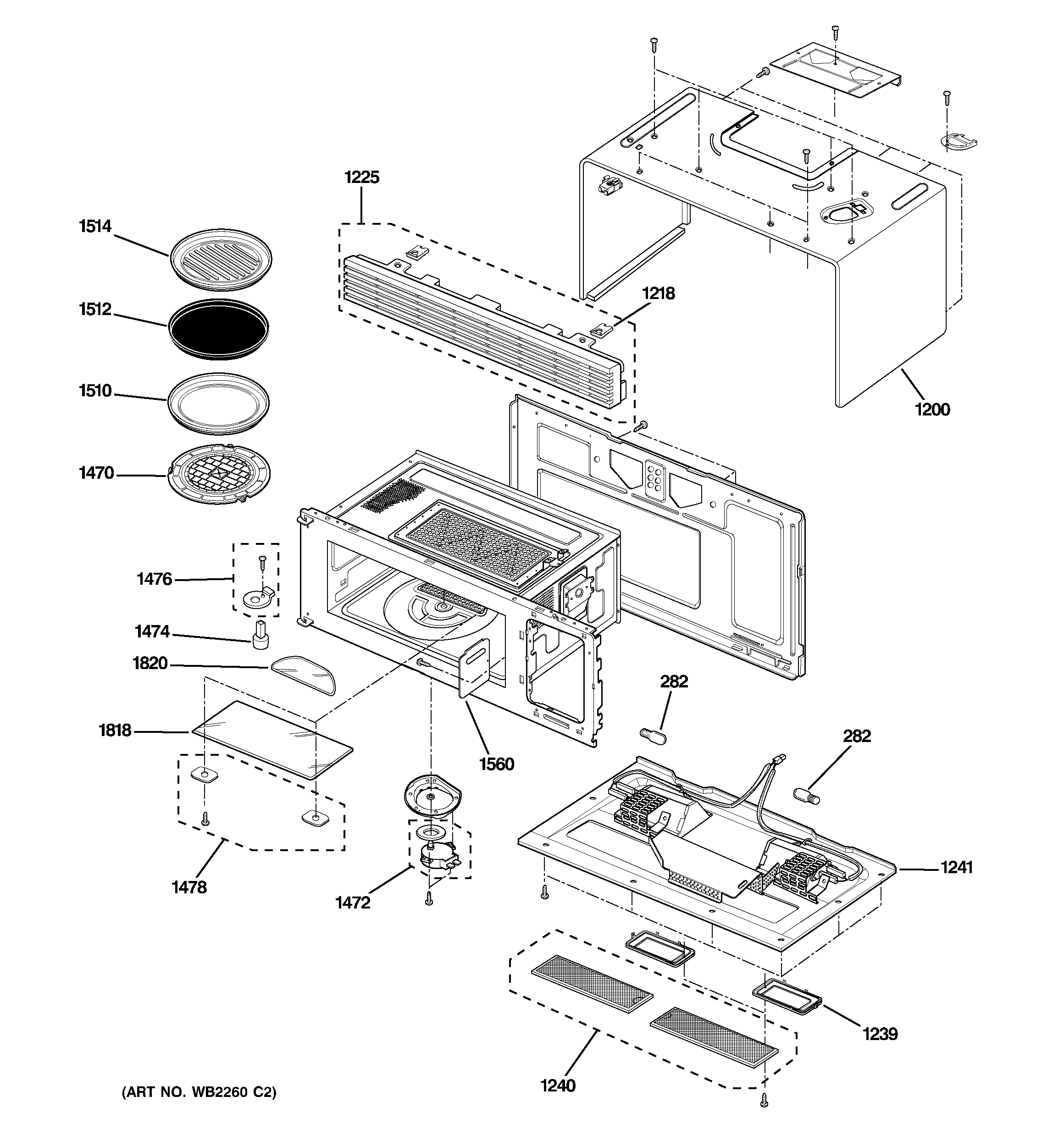

SCA2001FSS02 OVEN CAVITY PARTS

Products

Position	Product
282	WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
1200	GEN WB56X10137
1218	GEN WB06X10320
1225	GRILLE ASM
1239	COOKTOP GLASS ASM
1240	GREASE FILTER ASM
1241	BASE PLATE SUB ASM
1470	TURNTABLE
1472	MOTOR ASM
1474	SHAFT – TURNTABLE
1476	GEN WB36X10128
1478	GEN WB36X10127
1510	TRAY – CERAMIC
1512	WB49X10240 GE Oven Range Cooking Tray
1514	WB49X10241 GE Oven Non-Stick Grille Pan Tray
1560	WAVE GUIDE-MICA COVER
1818	WB36X10129 GE Oven Upper Glass Cover
1820	LOWER GLASS COVER
