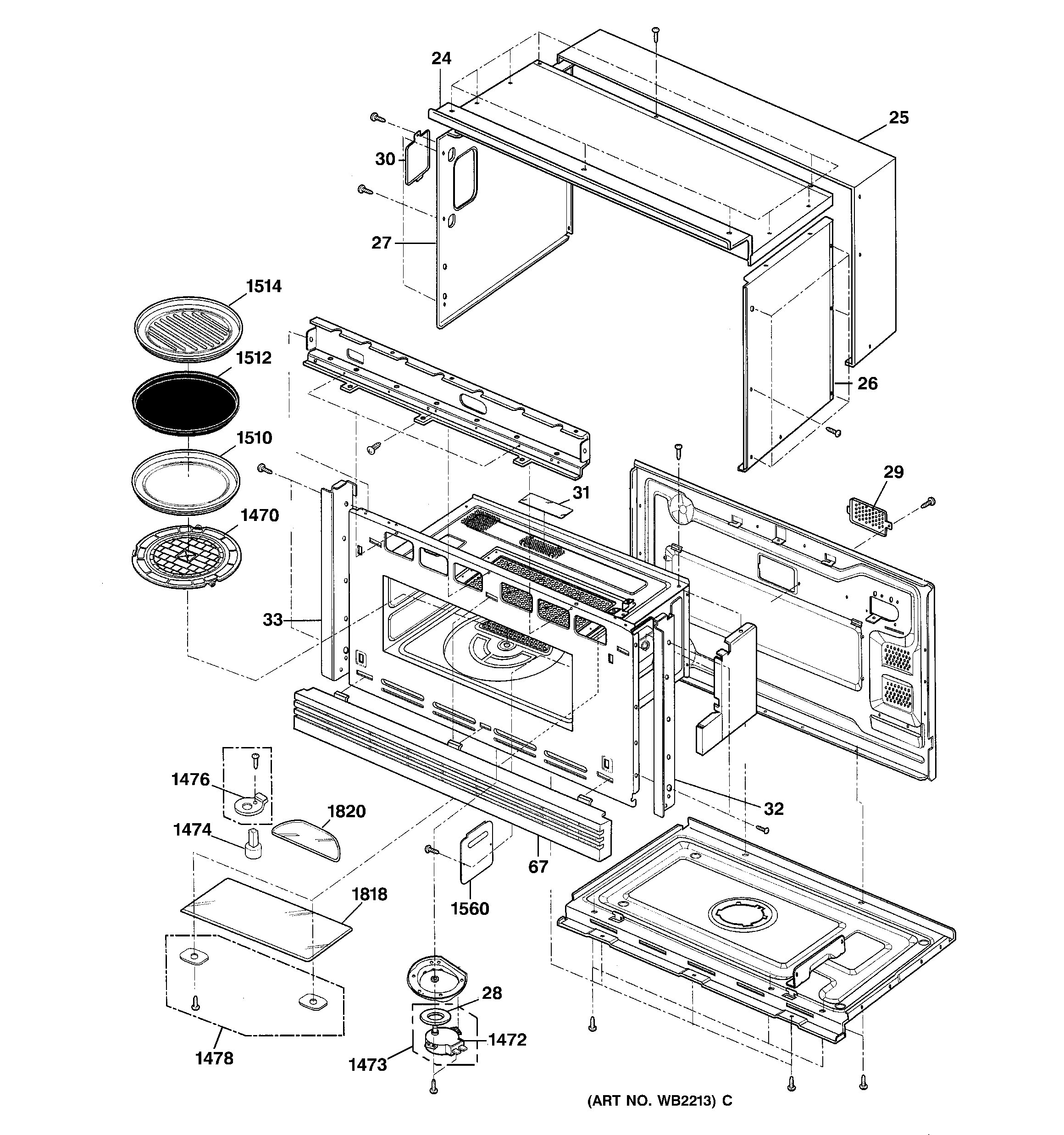

SCBC2001CSS001 OVEN CAVITY PARTS

SCBC2001CSS001 OVEN CAVITY PARTS

Written by

in

SCBC2001CSS001 OVEN CAVITY PARTS

Products

PositionProduct
24GEN WB02X10678
25GEN WB02X10679
26GEN WB02X10680
27GEN WB02X10681
28GEN WB02X10682
29GEN WB02X10683
30WB34X32584 GE Door Switch Access Cover
31GEN WB36X10161
32WB07X10376 GE Oven Right Side Trim
33GEN WB07X10377
67GEN WB07X10378
1470TURNTABLE
1472WB26X10193 GE Oven Turntable Motor
1473GEN WB26X10073
1474SHAFT – TURNTABLE
1476GEN WB36X10128
1478GEN WB36X10127
1510TRAY – CERAMIC
1512WB49X10240 GE Oven Range Cooking Tray
1514WB49X10241 GE Oven Non-Stick Grille Pan Tray
1560WAVE GUIDE-MICA COVER
1818WB36X10129 GE Oven Upper Glass Cover
1820LOWER GLASS COVER
