SCE30500W 06 – TOP ASSEMBLY – Aparts

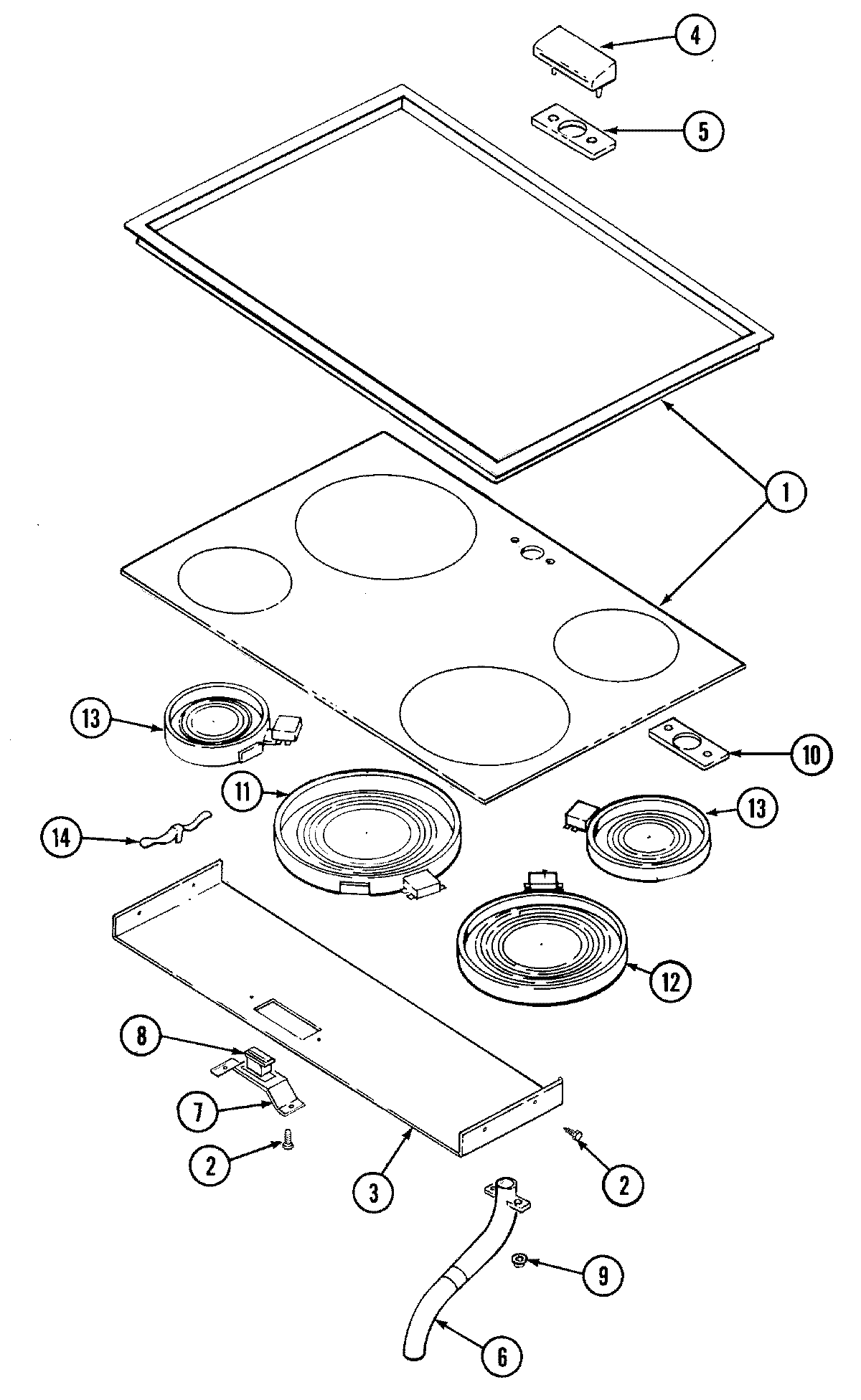

SCE30500W 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 71002241
2	WP90767 Whirlpool Screw
3	MAY 71002237
3	MAY 71002238
4	MAY Y04100311
5	MAY Y04100462
6	MAY 71002239
7	MAY 04100476
8	MAY Y04100477
9	7103P166-60 Whirlpool Nut
10	MAY Y04100478
11	W10823694 Whirlpool Surface Element
12	MAY 71001424
13	MAY 71001423
14	SPRING, ELEMENT SUPPORT
