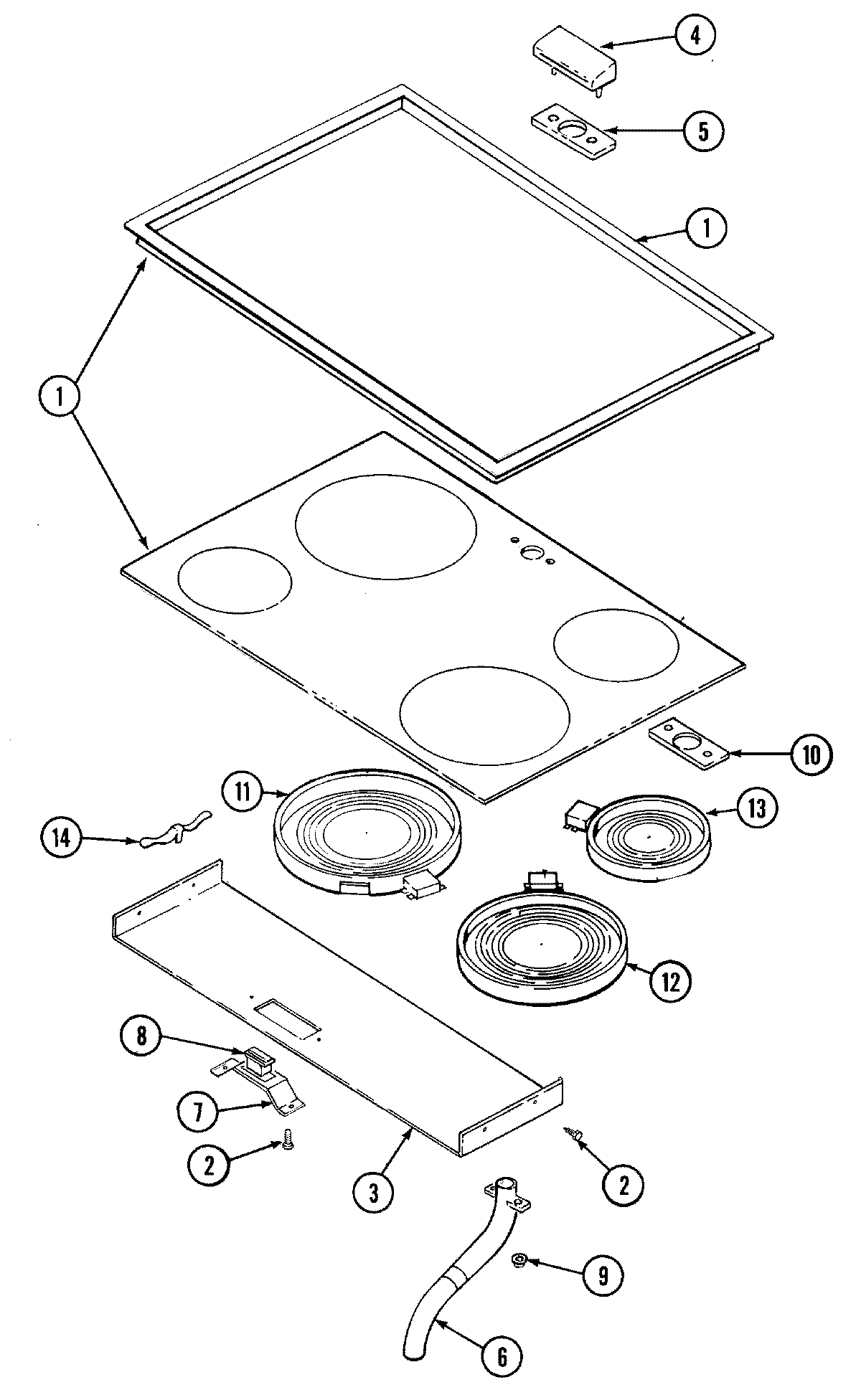

SCE30600BC 06 – TOP ASSEMBLY

SCE30600BC 06 – TOP ASSEMBLY

Written by

in

SCE30600BC 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 71002240
2WP90767 Whirlpool Screw
3MAY 71003086
3MAY 71002237
4MAY Y04100302
5MAY Y04100462
6MAY 71002239
7MAY 04100476
8MAY Y04100477
97103P166-60 Whirlpool Nut
10MAY Y04100478
11W10823694 Whirlpool Surface Element
12MAY 71001424
13MAY 71001423
14SPRING, ELEMENT SUPPORT
14MAY 402013-1
