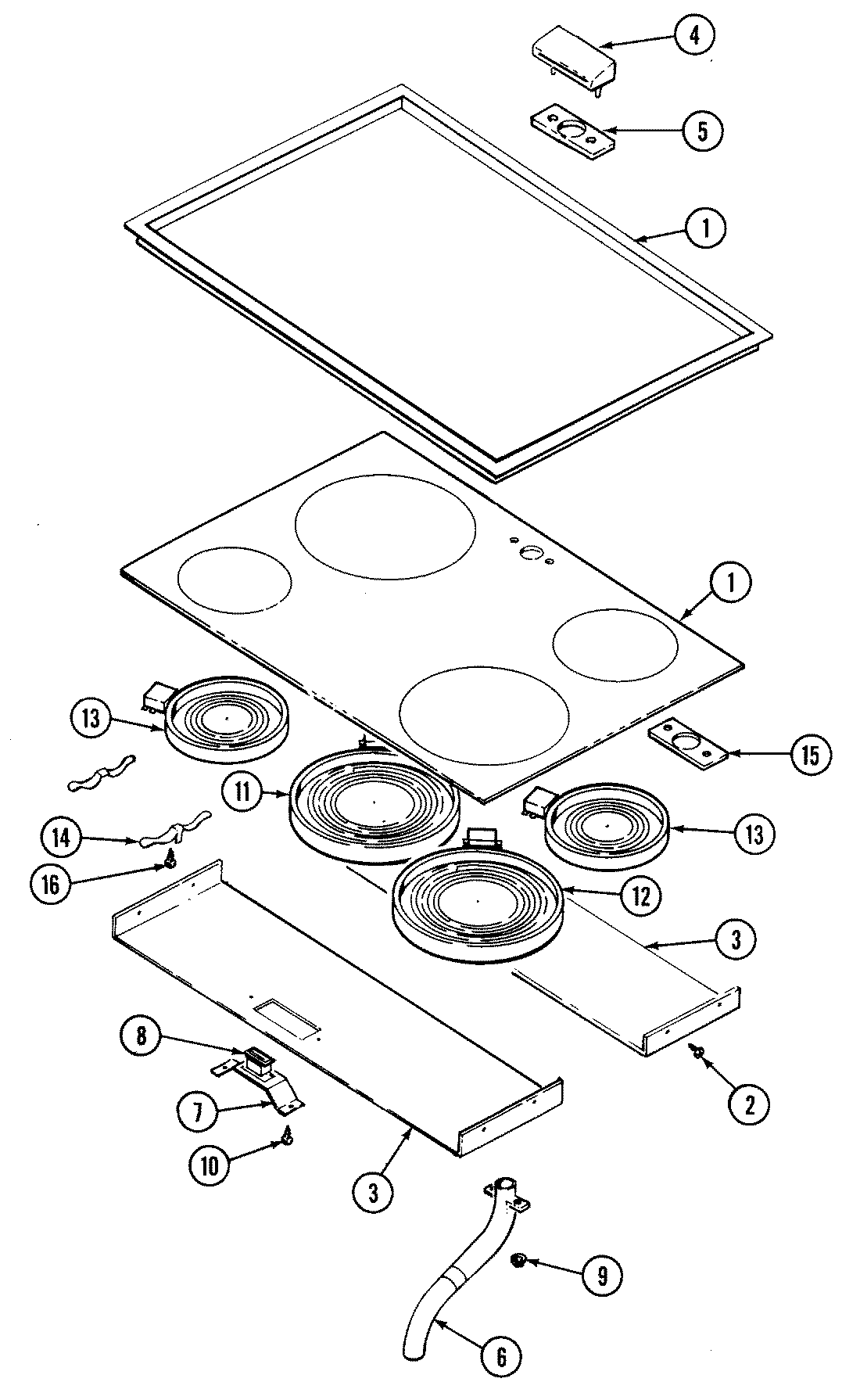

SCE4340W 09 – TOP ASSY.

SCE4340W 09 – TOP ASSY.

Written by

in

SCE4340W 09 – TOP ASSY.

Products

PositionProduct
1MAY 04100831
2MAY Y04100363
3MAY 04100475
4MAY Y04100311
5MAY Y04100462
6MAY 04100461
7MAY 04100476
8MAY Y04100477
97103P166-60 Whirlpool Nut
10WP90767 Whirlpool Screw
11MAY Y04100413
12MAY Y04100414
13MAY Y04100415
14SPRING, ELEMENT SUPPORT
15MAY Y04100478
16MAY 04100467
16MAY 04100468
16MAY Y04100479
