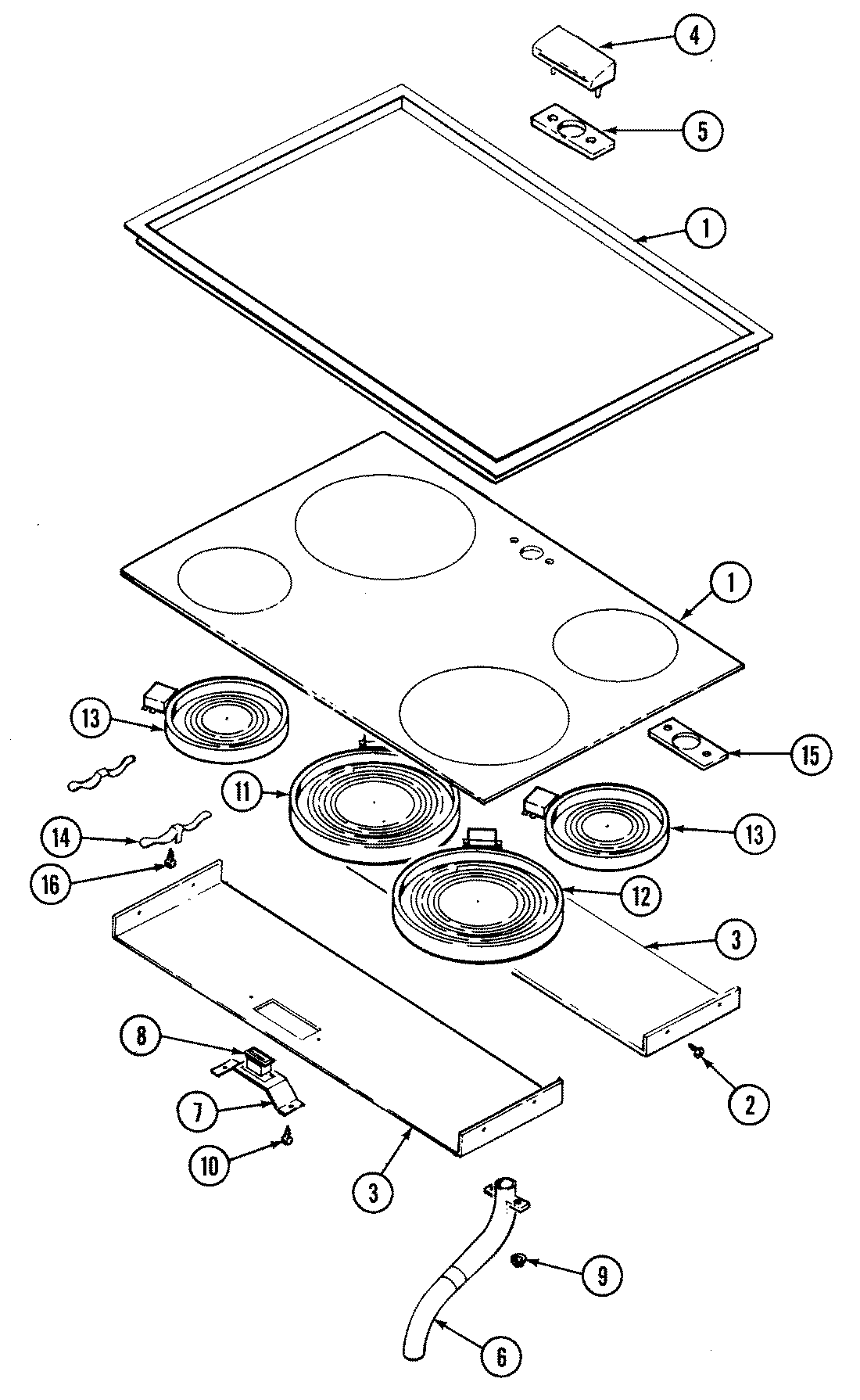

SCE4340W-C 09 – TOP ASSY.
Written by
in
SCE4340W-C 09 – TOP ASSY.
Products
Position
Product
1
MAY 04100831
3
MAY 71001015
4
MAY Y04100311
5
MAY Y04100462
6
MAY Y702711
6
MAY Y702107
6
MAY Y04100363
6
MAY 71001020
7
MAY 04100476
8
MAY Y04100477
9
7103P166-60 Whirlpool Nut
10
WP90767 Whirlpool Screw
11
MAY Y04100413
12
MAY Y04100414
13
MAY Y04100415
14
SPRING, ELEMENT SUPPORT
15
MAY Y04100478
16
MAY 04100467
16
MAY 04100468
16
MAY Y04100479
←
