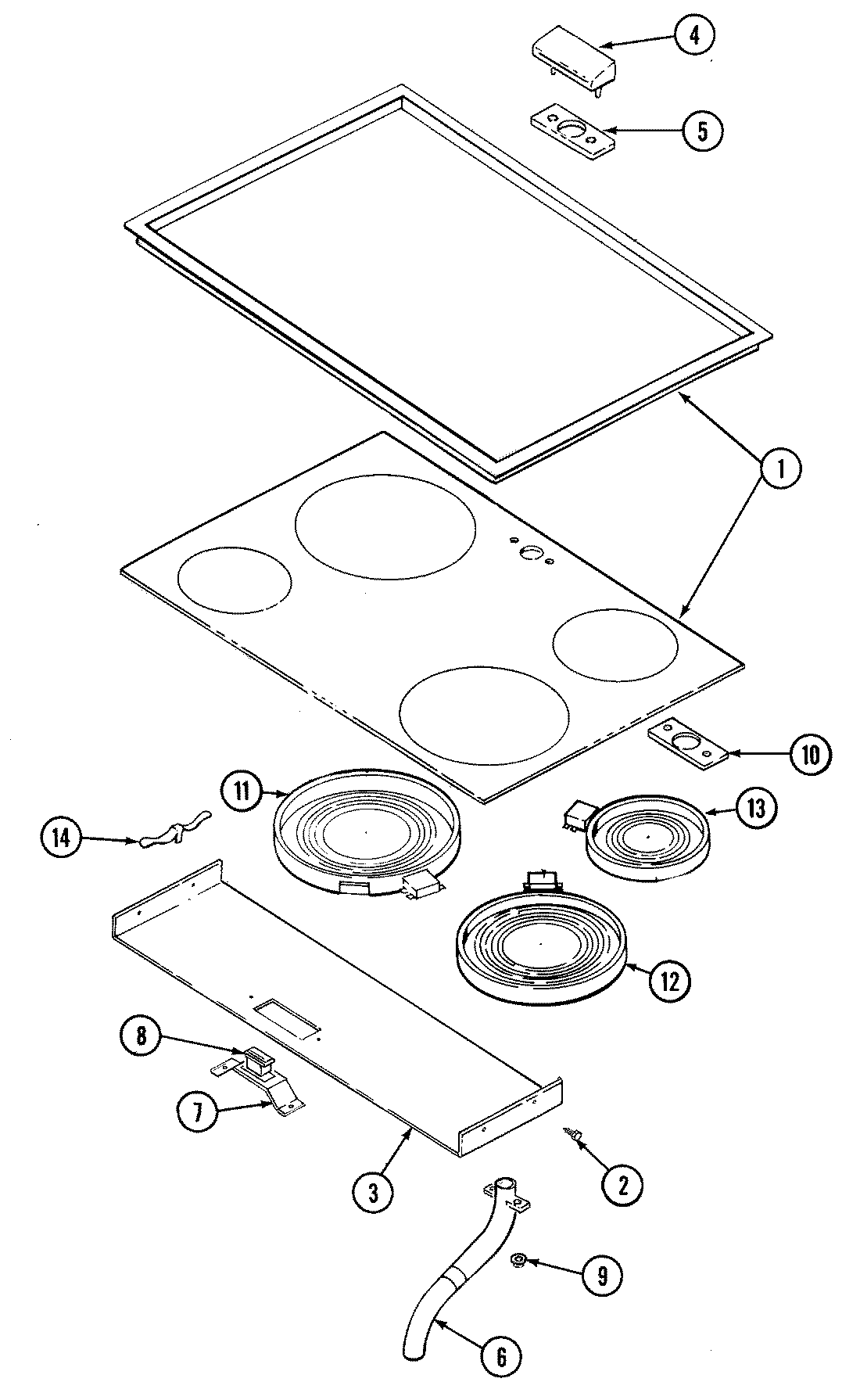

SCE70600W 06 – TOP ASSEMBLY

SCE70600W 06 – TOP ASSEMBLY

Written by

in

SCE70600W 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 71002241
2WP90767 Whirlpool Screw
3MAY 71002237
3MAY 71003086
4MAY Y04100311
5MAY Y04100462
6MAY 71002239
7MAY 04100476
8MAY Y04100477
97103P166-60 Whirlpool Nut
10MAY Y04100478
11W10823694 Whirlpool Surface Element
12W10823697 Whirlpool Surface Element
12MAY 71001424
13MAY 71001423
13W10823711 Whirlpool Surface Element Left Front and Right Rear
14SPRING, ELEMENT SUPPORT
