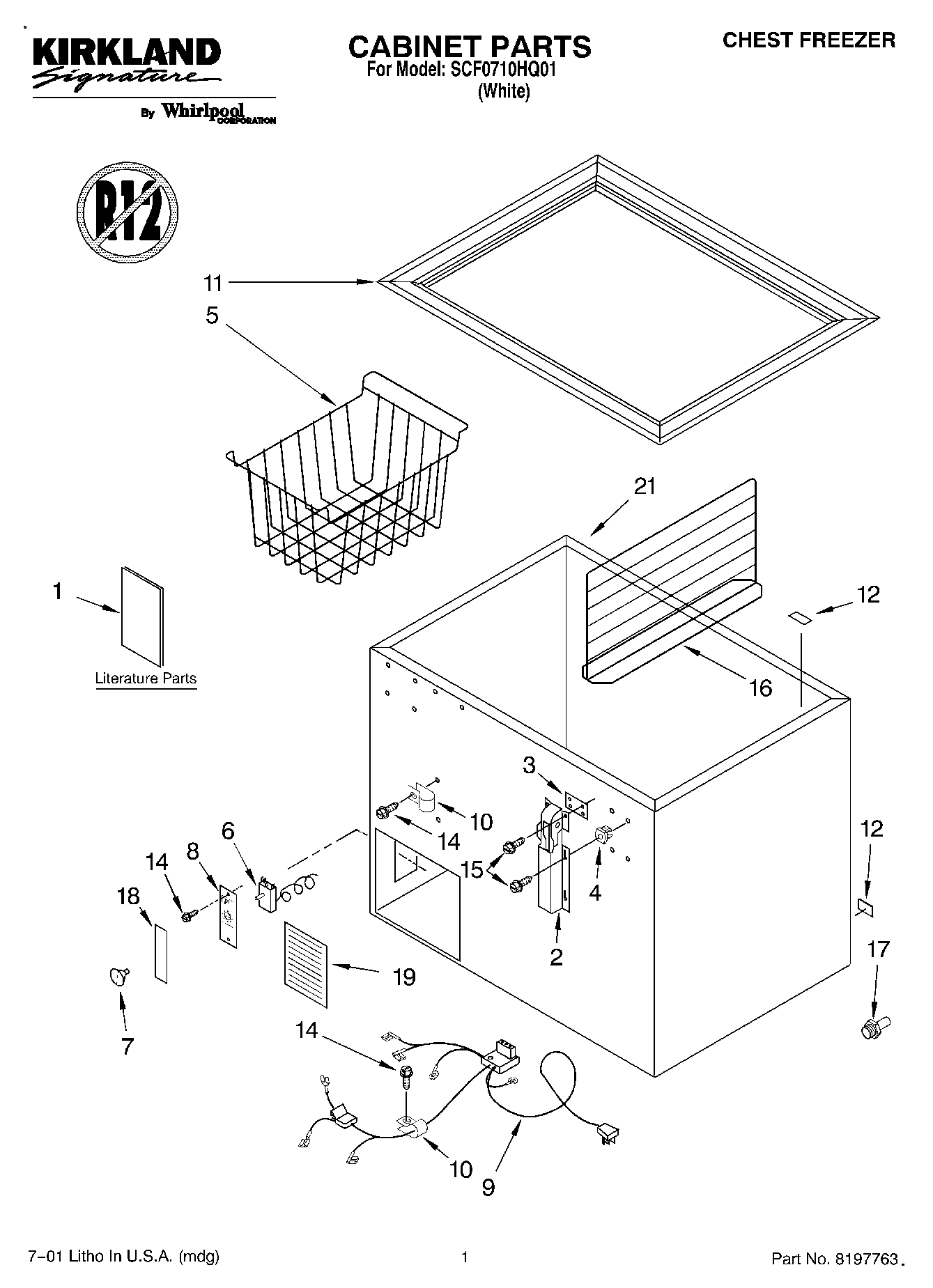

SCF0710HQ01 01 – CABINET

Products

PositionProduct
1Literature Parts (Energy Label)
1Literature Parts (Use & Care Guide)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
94-35130-004 Whirlpool Refrigerator Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Drain, Cap
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17W11663505 Whirlpool Hose Adapter
18Insert, Control
19Access Panel
21Clip, Gasket (Kit Of 60)
21350942 Whirlpool Spray Paint
21799344 Whirlpool Refrigerator Paint
21Cabinet (Not A Serviceable Part)
2172017 Whirlpool Appliance Touch-Up Paint White
