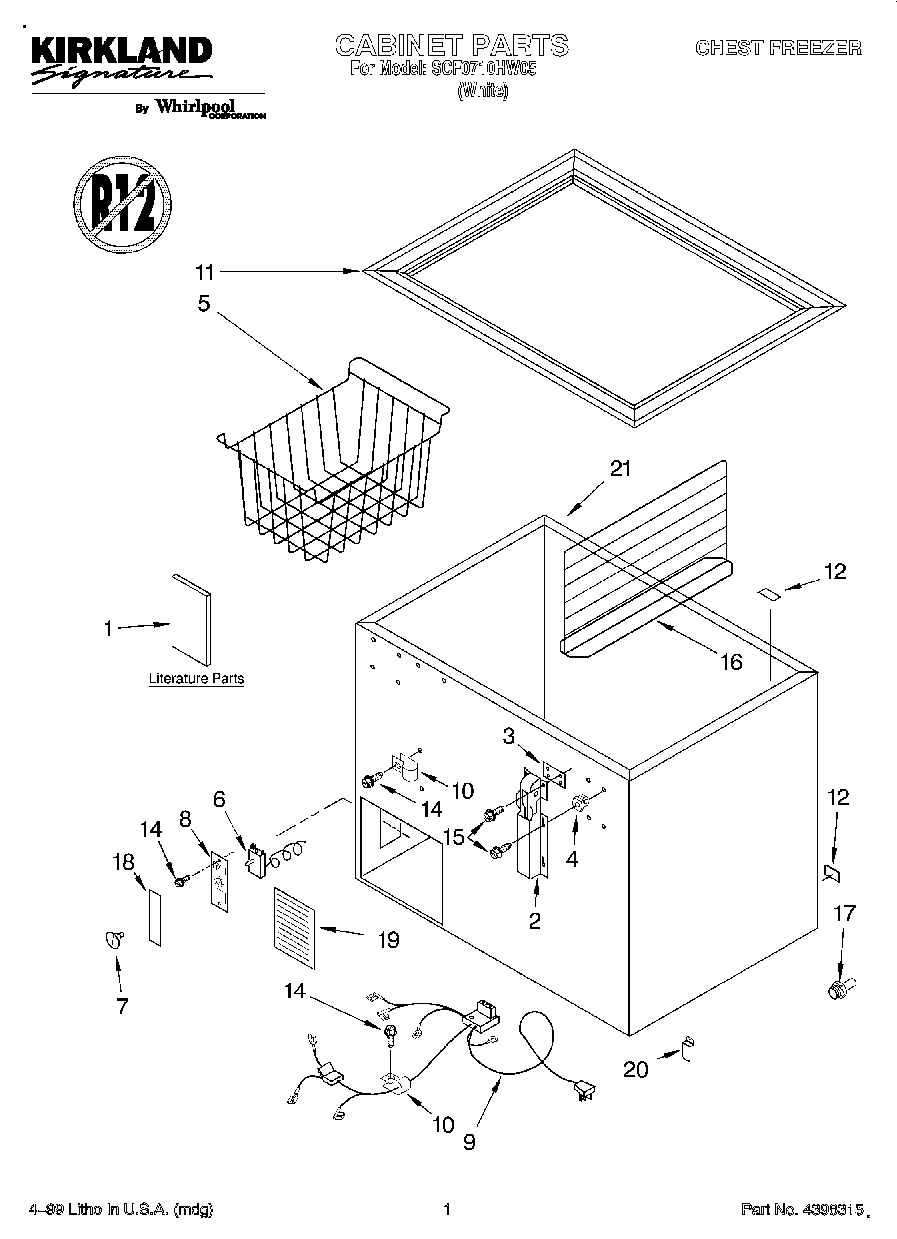

SCF0710HW05 01 – CABINET

SCF0710HW05 01 – CABINET

Written by

in

SCF0710HW05 01 – CABINET

Products

PositionProduct
1Energy Label
1Literature Parts (Use & Care Guide)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Drain, Cap
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17W11663505 Whirlpool Hose Adapter
18Insert, Control
19Access Panel
20Clip
21Clip, Gasket (Kit Of 60)
2172017 Whirlpool Appliance Touch-Up Paint White
21350942 Whirlpool Spray Paint
21799344 Whirlpool Refrigerator Paint
21Cabinet (Not A Serviceable Part)
