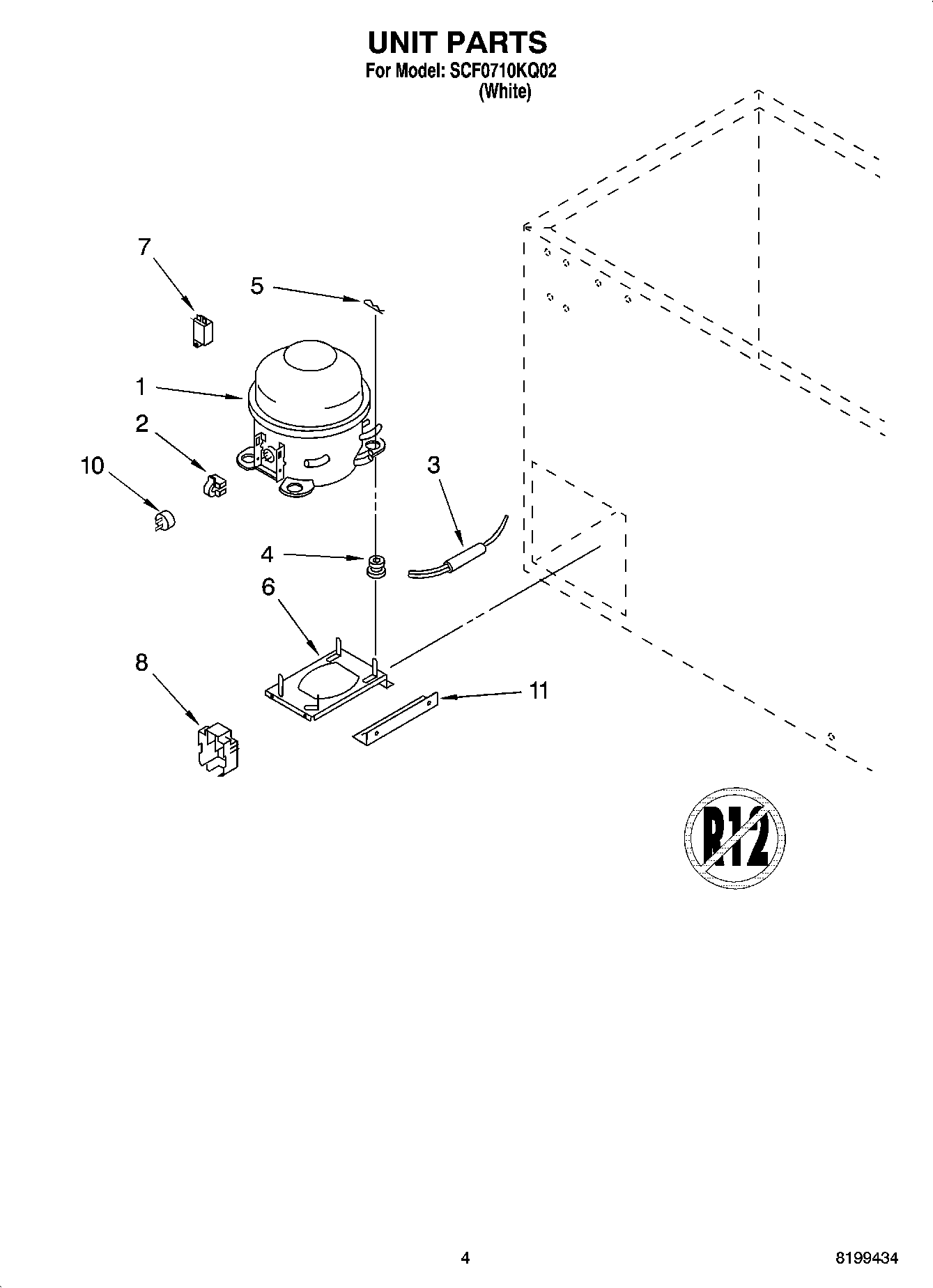

SCF0710KQ02 03 – UNIT PARTS

Written by

Products

Position	Product
1	W10237328 Whirlpool Refrigerator Compressor
2	Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	Clip, Hitch Pin
6	Base, Compressor
7	Capacitor
8	Cover
10	Overload
11	3-81556-001 Whirlpool Brace
11	REFRIGERANT CHARGE 3.7 oz. (R-134A)
