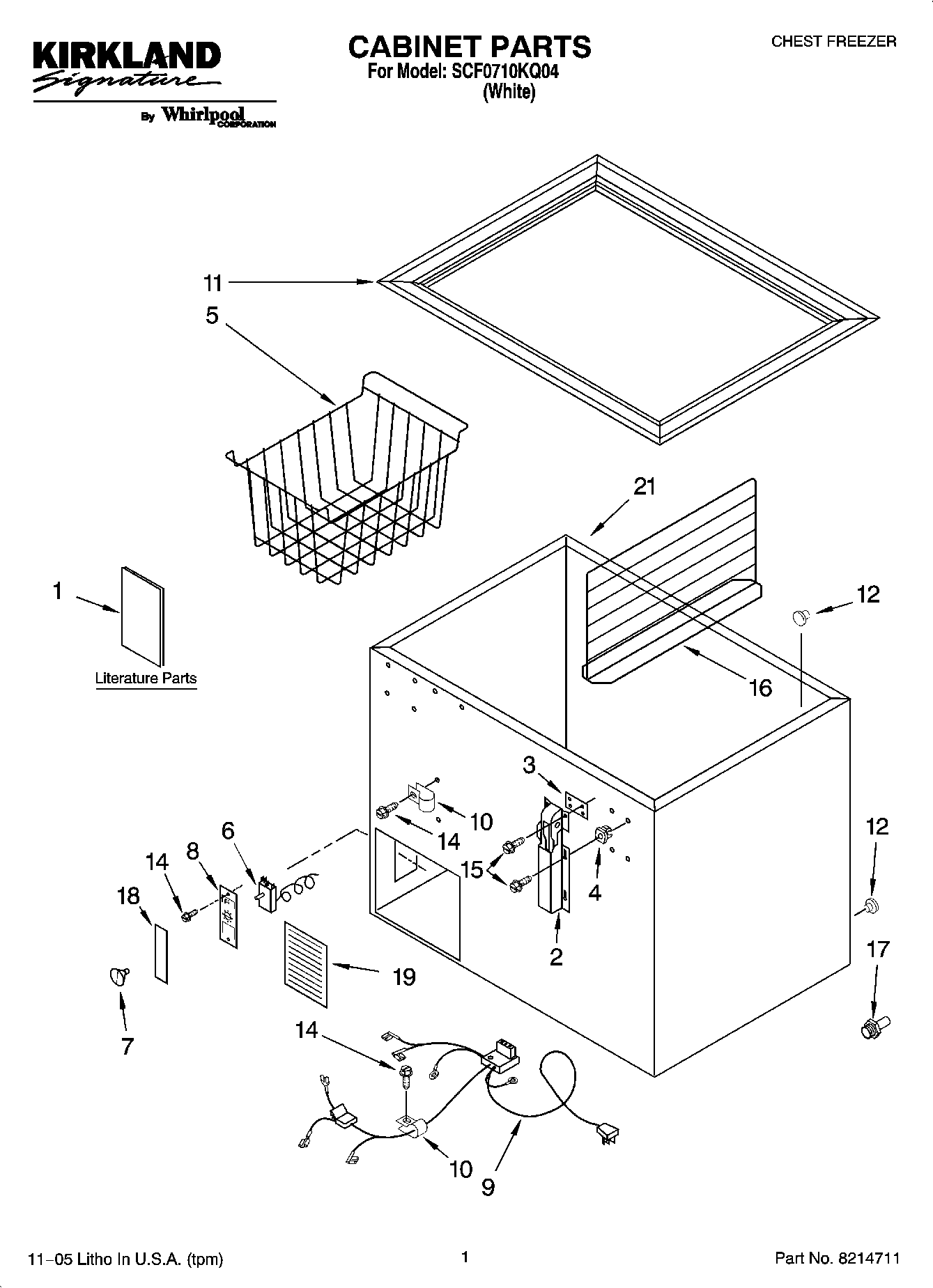

SCF0710KQ04 01 – CABINET PARTS

SCF0710KQ04 01 – CABINET PARTS

Written by

in

SCF0710KQ04 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
2Hinge, Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
94-35130-004 Whirlpool Refrigerator Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Drain, Cap
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17W11663505 Whirlpool Hose Adapter
18Insert, Control
19Access Panel
21Clip, Gasket (Kit Of 60)
21350942 Whirlpool Spray Paint
21Cabinet (Not A Serviceable Part)
21Parts Not Illustrated and Optional Parts (Not Included)
21Customer Touch-Up Material
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
