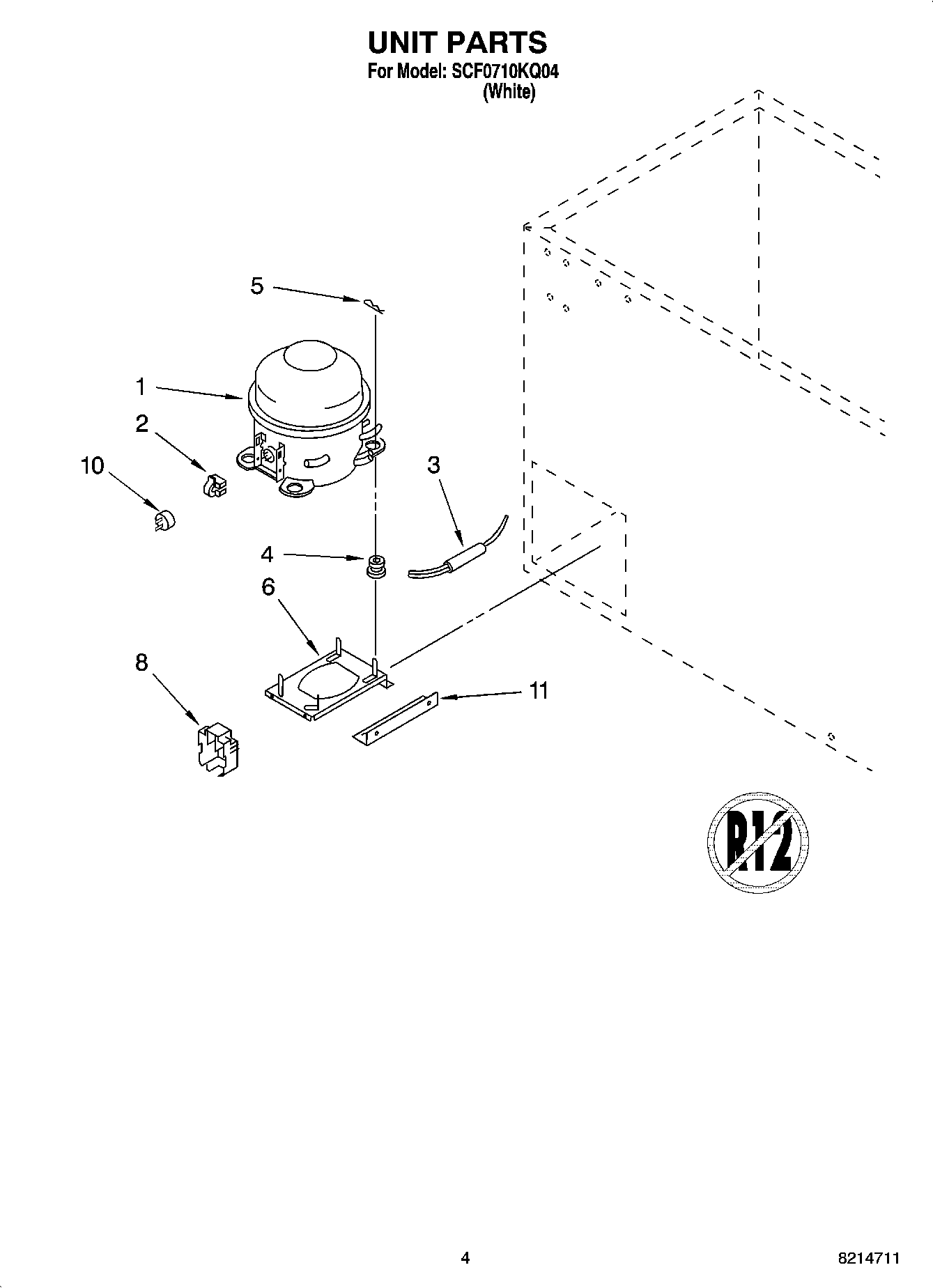

SCF0710KQ04 03 – UNIT PARTSadmin2025-04-26T11:20:28+00:00SCF0710KQ04 03 – UNIT PARTS ProductsPositionProduct1Compressor (Includes Items 2, 3, 4, 5, 8 & 9)24356716 Whirlpool Refrigerator Start Relay3W10843121 Whirlpool Refrigerator Tube4Grommet, Mounting Compressor5Clip, Hitch Pin6Base, Compressor8WP2162358 Whirlpool Refrigerator Terminal Cover102264602 Whirlpool Refrigerator Overload113-81556-001 Whirlpool Brace11REFRIGERANT CHARGE 3.7 oz. (R-134A)
