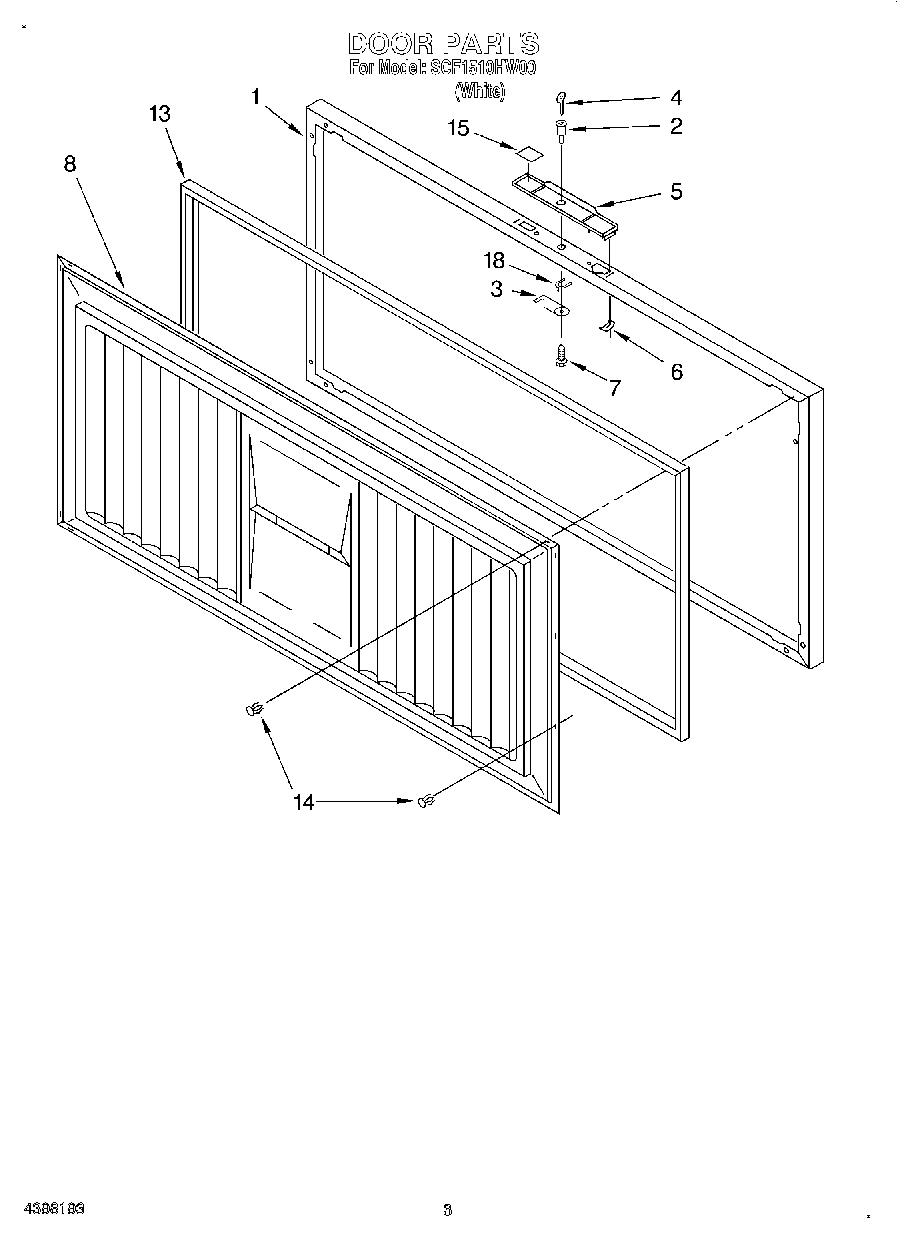

SCF1510HW00 02 – DOOR

Written by

Products

Position	Product
1	Exterior Door Panel (Includes Insulation)
2	3-35284-001 Whirlpool Refrigerator Door Lock
3	2-35195-002 Whirlpool Refrigerator Hook
4	Key
5	Handle
6	3-24059-024 Whirlpool Refrigerator Handle Clip
7	SCREW
8	Interior, Door Panel
13	Gasket
14	Plastic, Mounting Clip
15	Nameplate
18	Clip
