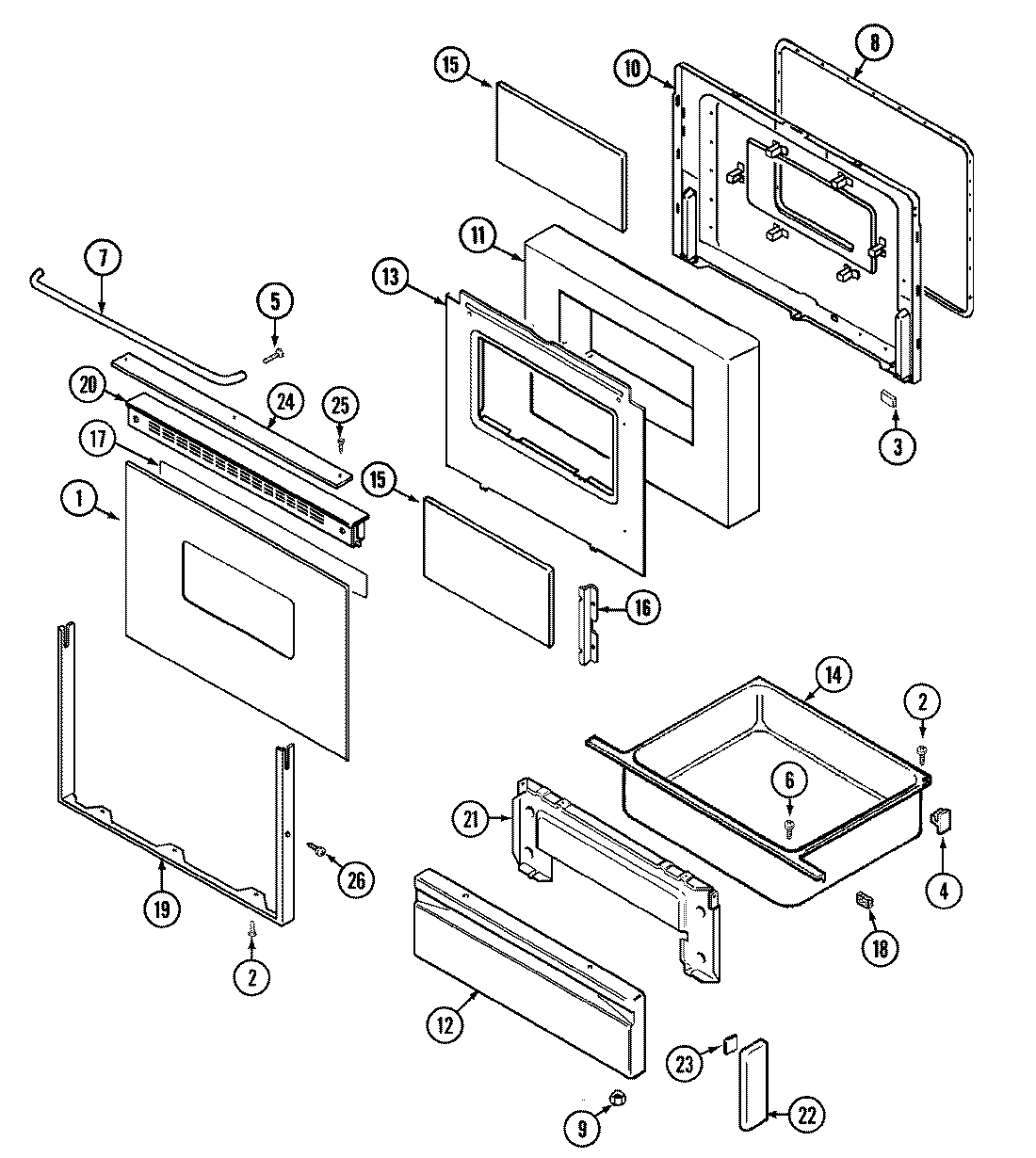

SCG20200A 02 – DOOR/DRAWER

SCG20200A 02 – DOOR/DRAWER

Written by

in

SCG20200A 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002056
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
4MAY 74003566
5MAY 74001521
5SCREW
7MAY 74002060
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
10NUT, SNAP (ROUND-BLK)
10MAY 7103P136-60
10MAY 74003244
11MAY 74001842
12MAY 7101P290-60
12MAY 74001478
12MAY 74003522
13MAY 74001843
14MAY 71003042
14MAY 3405F018-80
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P311-60
20MAY 74002064
21MAY 74001464
21LINING, DRAWER PANEL
22MAY 7744P091-60
23TAPE
24MAY 7728P095-60
24SCREW
25MAY 7101P370-60
26WP74009541 Whirlpool Screw Assembly
