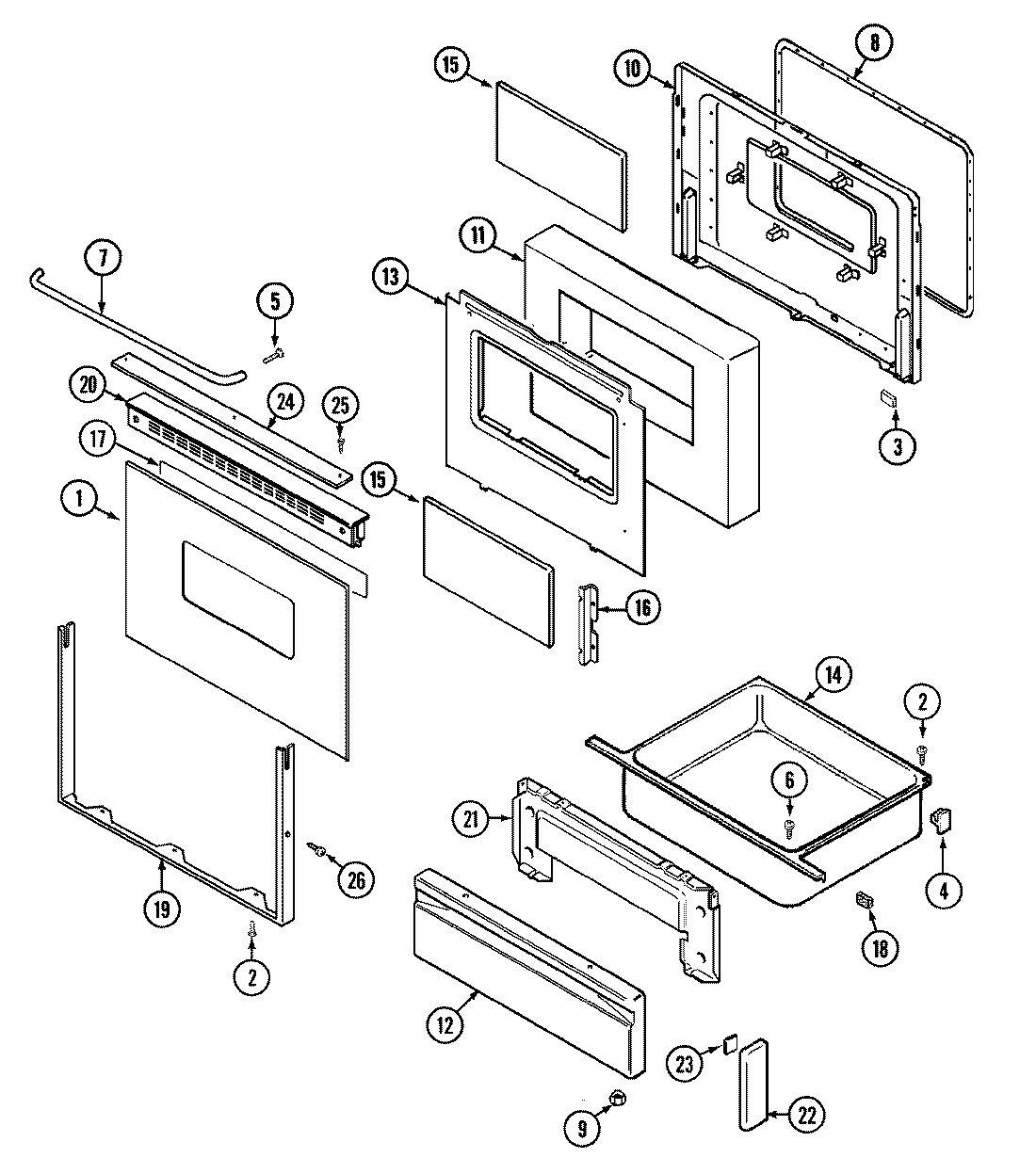

SCG20200B 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002058
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
4	MAY 74003566
5	MAY 74001521
5	SCREW
7	MAY 74002061
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	NUT, SNAP (ROUND-BLK)
10	MAY 7103P136-60
10	MAY 74003244
10	MAY 2402W209-19
10	NUT, SNAP (ROUND-WHT)
11	MAY 74001842
12	MAY 7101P290-60
12	MAY 74001749
13	MAY 74001843
14	MAY 3405F018-80
14	MAY 71003042
15	MAY 74001841
16	MAY 74001844
17	MAY 8270P078-60
18	MAY 7208P011-60
19	MAY 7706P309-60
20	MAY 74002065
20	SCREW
21	MAY 74001464
21	LINING, DRAWER PANEL
22	MAY 7744P087-60
23	TAPE
26	WP98008545 Whirlpool Screw
