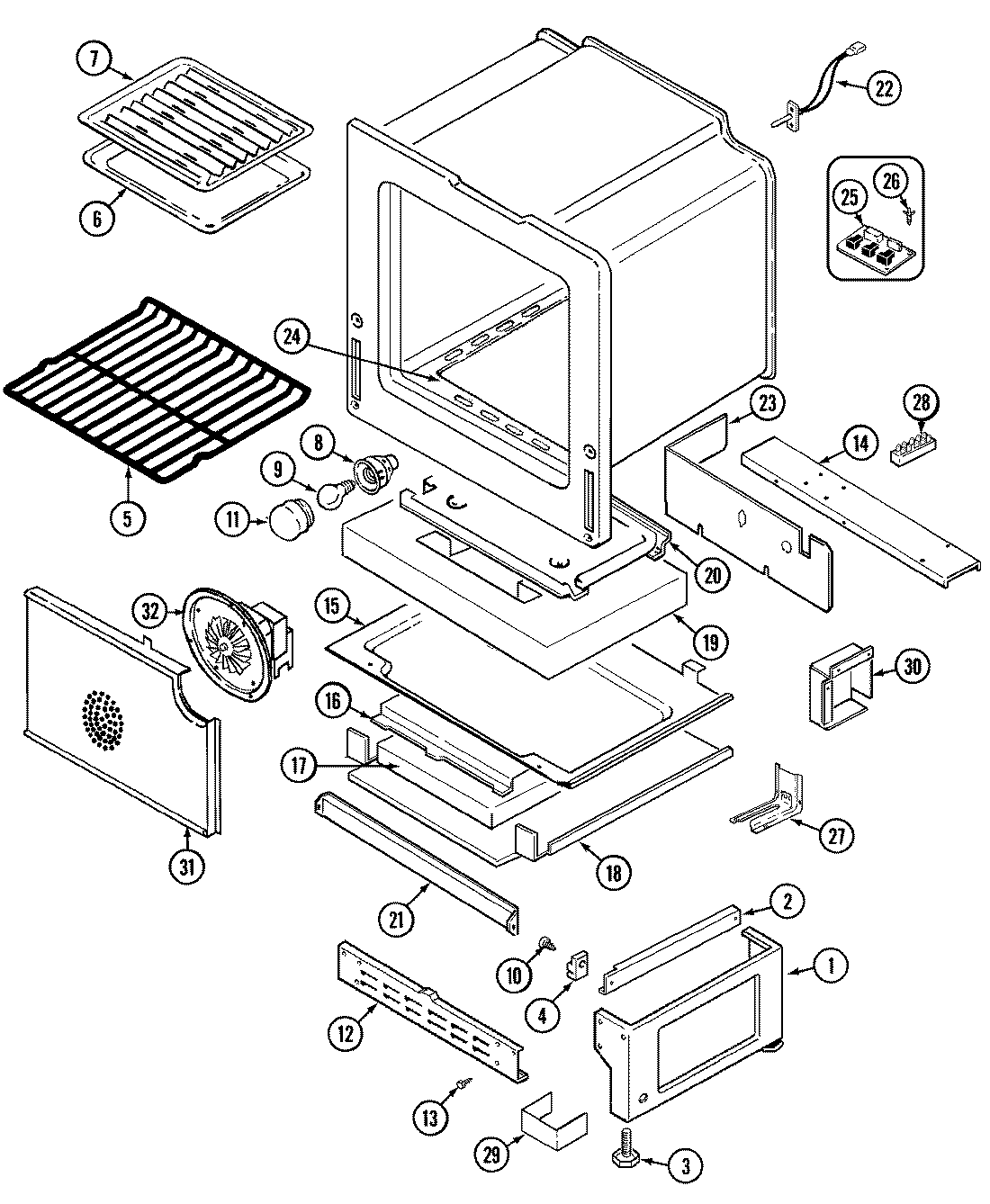

SCG20200B 04 – OVEN/BASE
Written by
in
SCG20200B 04 – OVEN/BASE
Products
Position
Product
1
MAY 4020W015-80
2
MAY 3406F028-51
2
RUNNER, DRAWER
2
MAY 74003566
3
W11665456 Whirlpool Range Level Foot
3
MAY 7101P316-60
4
MAY 74002312
5
MAY 74002105
5
WPW10282492 Whirlpool Oven Rack
6
MAY Y3401F02019
7
MAY Y3413F01619
8
MAY 74003125
8
WP7407P182-60 Whirlpool Lamp
9
RANGE ONLY 40W 120V APPL BULB
10
MAY 74001449
11
WP9781049 Whirlpool Light Lens
12
MAY 4020F001-80
14
MAY 74002593
15
MAY 3804F112-51
16
MAY 3604F204-51
17
INSULATION, DRAWER & SHIELD
18
MAY 3604F205-51
19
MAY 4804F014-60
20
MAY 74001651
21
BAFFLE, OVEN FRONT
21
WP74003976 Whirlpool Screw
22
MAY W10127322
23
MAY 4005F429-51
23
SCREW
24
MAY 5504M004-19
24
BAFFLE, OVEN BOTTOM
25
MAY 74002594
26
MAY 8004P020-60
26
SUPPORT, RELAY
27
MAY 3801F218-51
27
MAY 7101P344-60
28
MAY 7401P037-60
29
MAY 4005F420-80
30
MAY 3807F473-51
31
MAY 74002943
32
MAY 74002596
32
MAY 74003815
←
