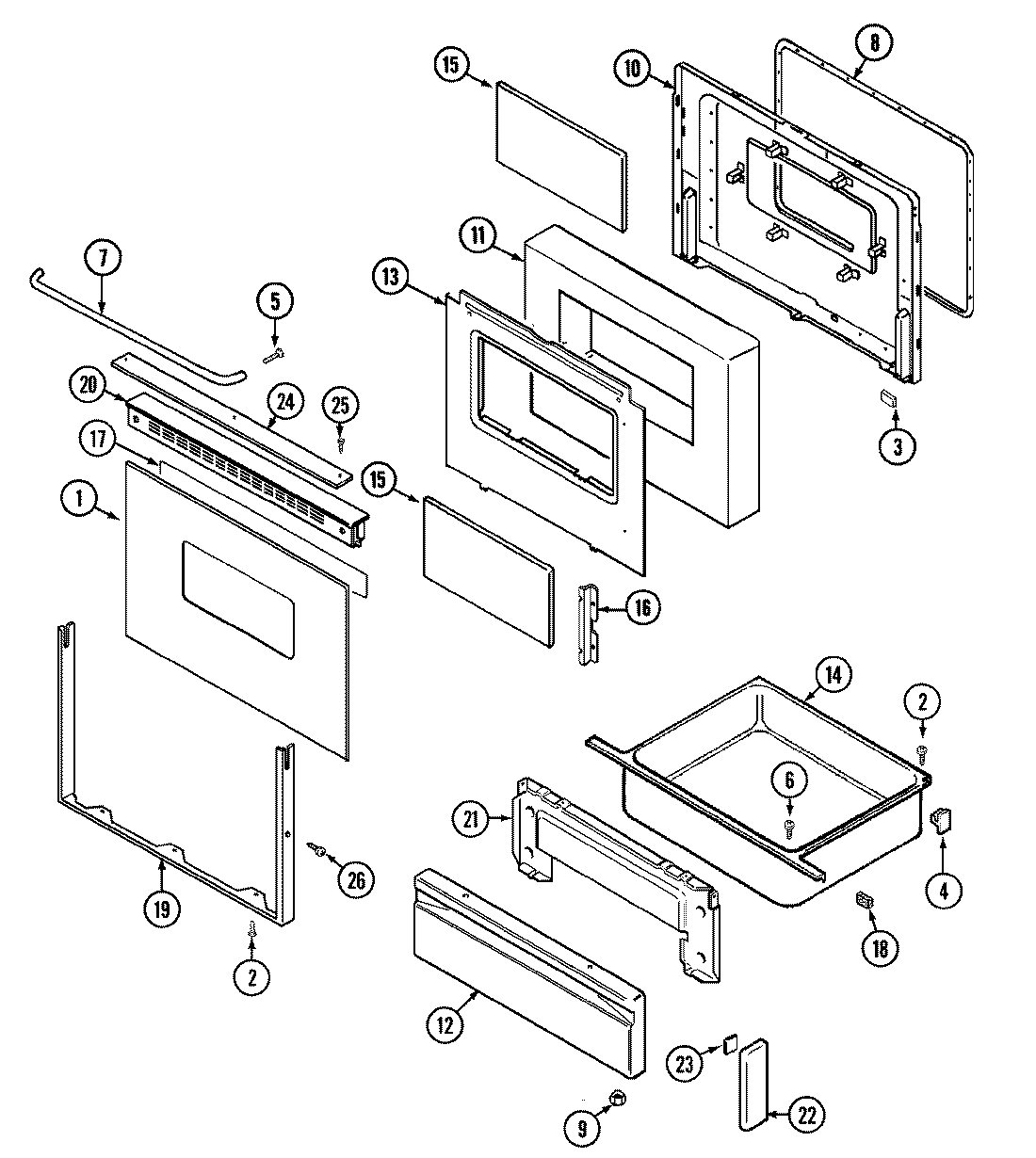

SCG20200W 02 – DOOR/DRAWER

SCG20200W 02 – DOOR/DRAWER

Written by

in

SCG20200W 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002057
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
4MAY 74003566
5MAY 74001521
5SCREW
7MAY 74002062
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10MAY 7103P136-60
10MAY 2402W209-19
10NUT, SNAP (ROUND-BLK)
10MAY 74003244
11MAY 74001842
12MAY 2416W002-71
12PANEL, DRAWER (WHT)
12PANEL, DRAWER (BLK)
12MAY 7101P290-60
13MAY 74001843
14MAY 3405F018-80
14MAY 71003042
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P310-60
20MAY 74002066
20SCREW
21MAY 74001464
21LINING, DRAWER PANEL
22MAY 7744P090-60
23TAPE
24MAY 7728P094-60
24MAY 74001278
25WP98008544 Whirlpool Screw Assembly
26WP7101P072-60 Whirlpool Screw
