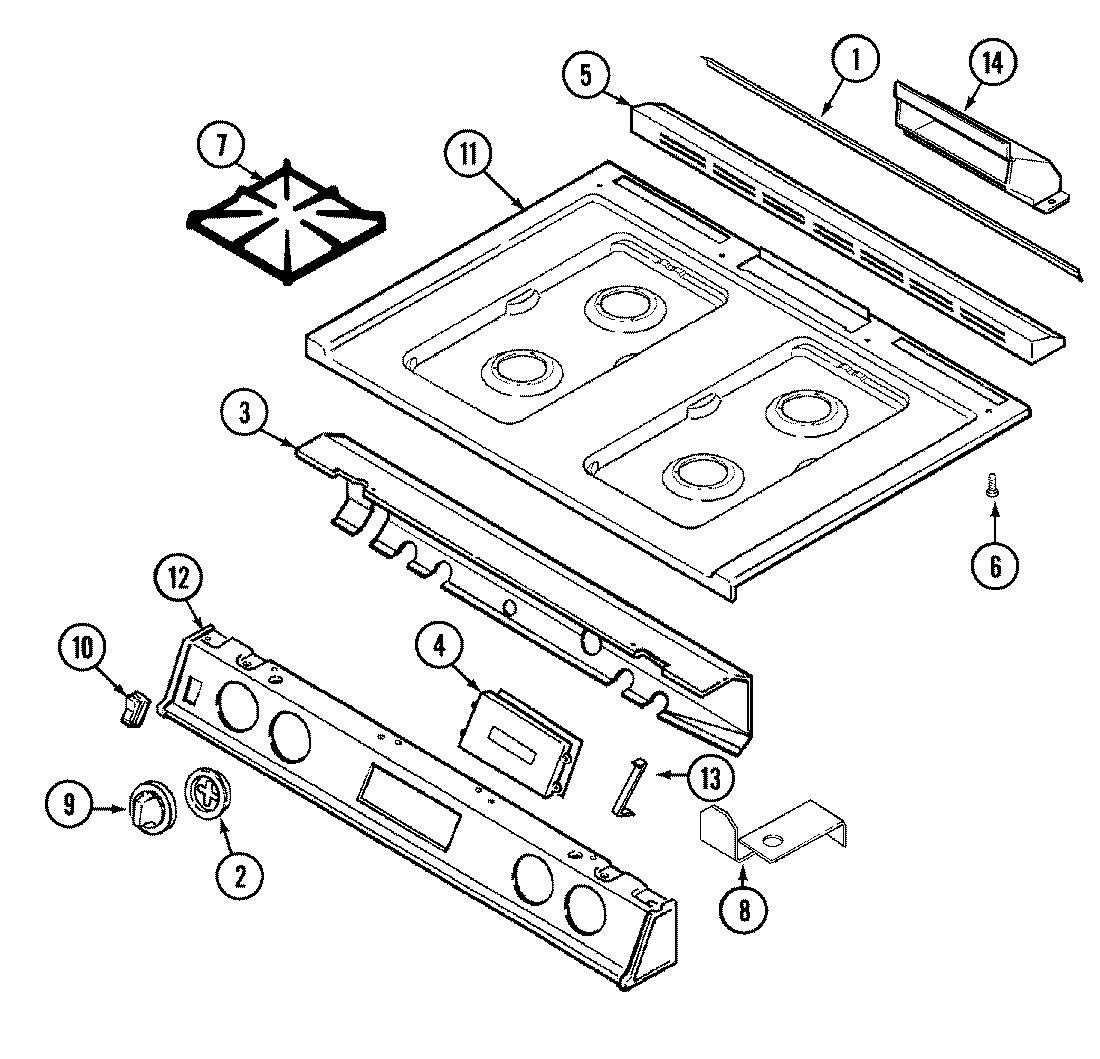

SCG20200W 05 – TOP ASSEMBLY

SCG20200W 05 – TOP ASSEMBLY

Written by

in

SCG20200W 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7201P061-60
2W10856847 Whirlpool Knob Bezel
3MAY 74002588
4MAY 74002951
5MAY 4825D001-59
6SCREW
7MAY 74001770
8MAY 3801F318-51
8MAY 7101P074-60
9WP74003769 Whirlpool Valve Knob
10MAY 7403P200-60
11MAY 74001558
12MAY 74002960
13MAY 7101P346-60
13MAY 74003191
14BAFFLE,VENT COVER
14WP59002061 Whirlpool Microwave Screw
15MAY 12001323
15MAY 74001575
15MAY 5170P228-60
16MAY 74002759
16MAY 16008701
17MAY 16000326
