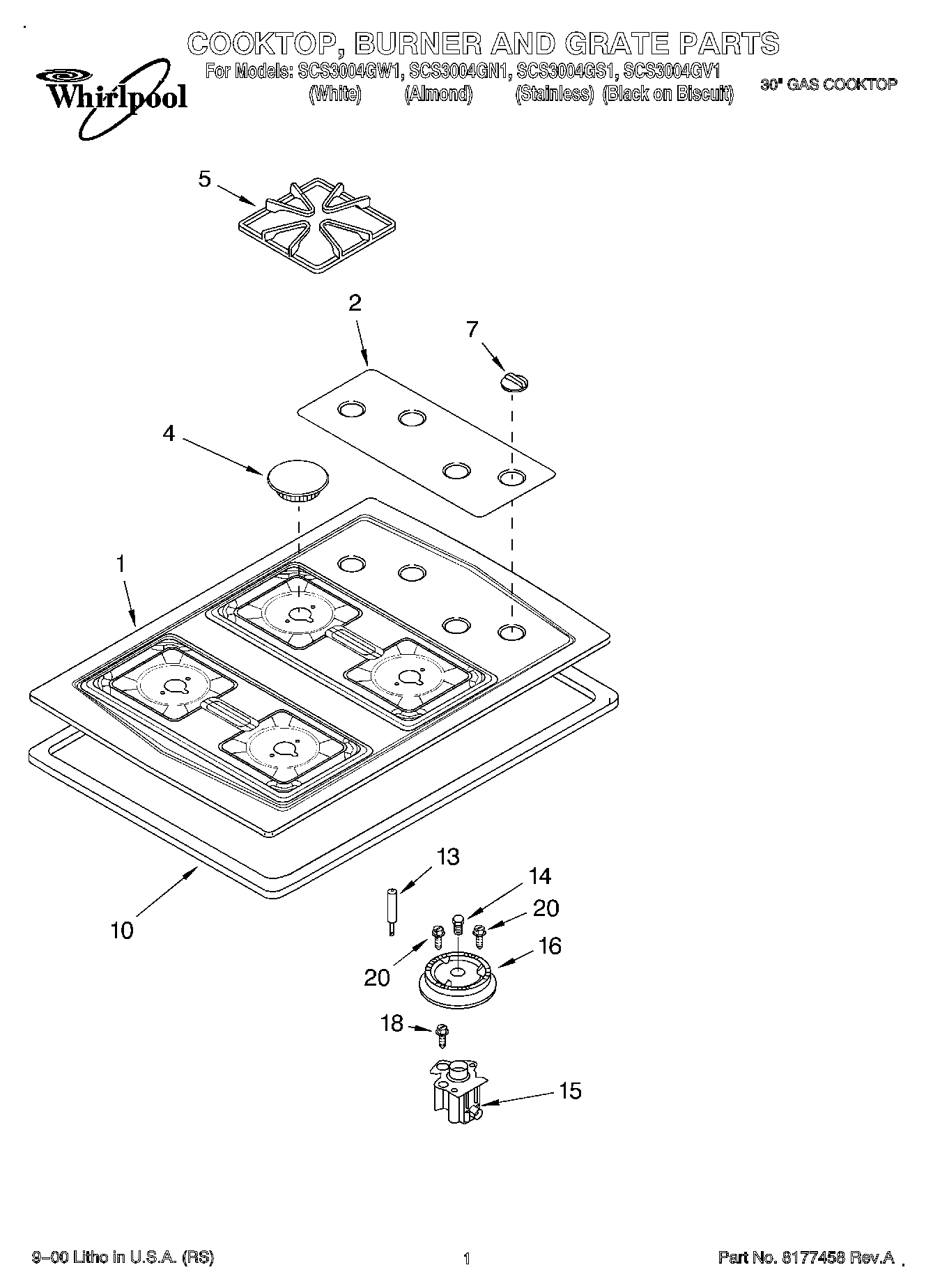

SCS3004GN1 01 – COOKTOP, BURNER AND GRATE

SCS3004GN1 01 – COOKTOP, BURNER AND GRATE

Written by

in

SCS3004GN1 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Cooktop (Biscuit)
1W11230936 Whirlpool Cooktop
1WP3191243 Whirlpool Cooktop Assembly
1WP3191242 Whirlpool Cooktop
1Cooktop (Almond)
2Panel, Control (Almond)
2Panel, Control (White)
2Panel, Control (Black)
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
7WP3191328 Whirlpool Control Knob
10Seal, Foam
13WP9754215 Whirlpool Surface Igniter
14WP3192523 Whirlpool Orifice
14Orifice (RF)
14WP9753930 Whirlpool Orifice
15814513 Whirlpool Top Burner
15Holder, Orifice (Includes 13 & 14) (RF 6K)
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
18WP4449809 Whirlpool Screw
2028“
2015“
20WP3368921 Whirlpool Screw
