SCS3004GS0 01 – COOKTOP, BURNER AND GRATE

SCS3004GS0 01 – COOKTOP, BURNER AND GRATE

Written by

in

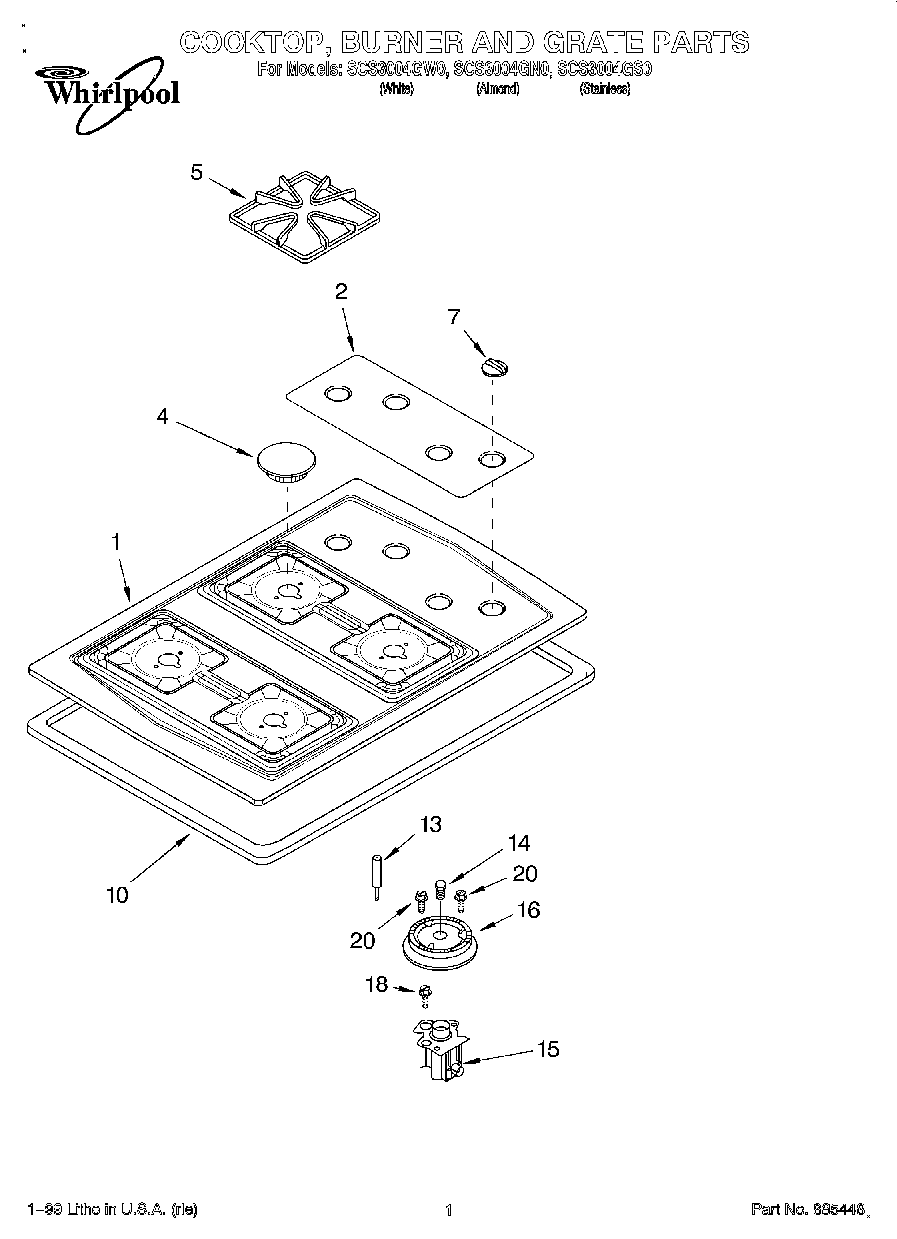

SCS3004GS0 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1WP3191242 Whirlpool Cooktop
1WP3191243 Whirlpool Cooktop Assembly
1W11230936 Whirlpool Cooktop
1Cooktop (Almond)
2Panel, Control (Almond)
2Panel, Control (White)
2Panel, Control (Black)
4WP3191901 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
5WPW10268483 Whirlpool Grate Kit
7WP3191328 Whirlpool Control Knob
10Seal, Foam
13Ignitor
14WP3192523 Whirlpool Orifice
14WP9753930 Whirlpool Orifice
14Orifice (RF)
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15814513 Whirlpool Top Burner
16Head, Burner (RF)
18WP4449809 Whirlpool Screw
2015“
2028“
20WP3368921 Whirlpool Screw
