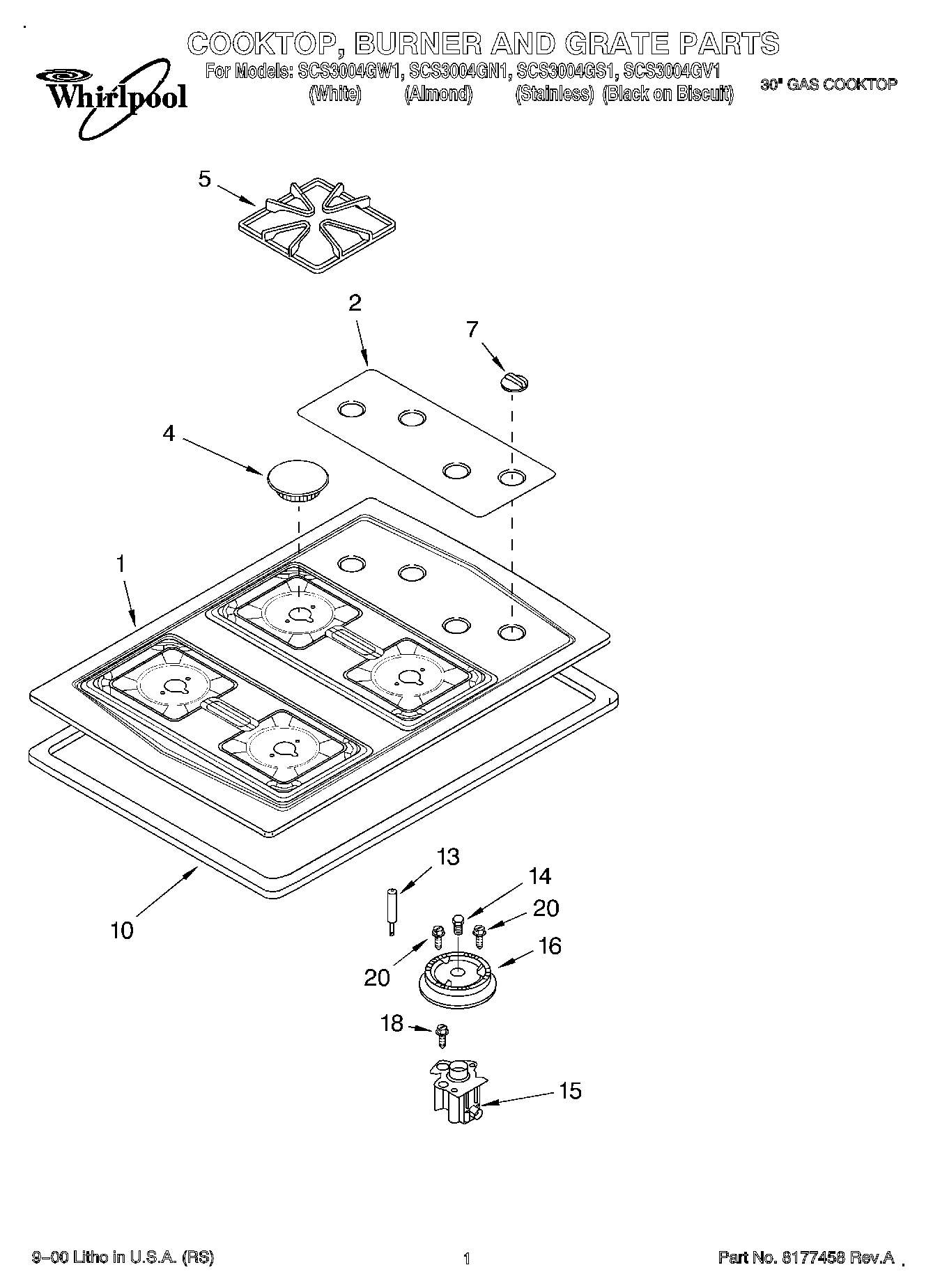

SCS3004GS1 01 – COOKTOP, BURNER AND GRATE
Written by
in
SCS3004GS1 01 – COOKTOP, BURNER AND GRATE
Products
Position
Product
1
Cooktop (Biscuit)
1
W11230936 Whirlpool Cooktop
1
WP3191243 Whirlpool Cooktop Assembly
1
WP3191242 Whirlpool Cooktop
1
Cooktop (Almond)
2
Panel, Control (Almond)
2
Panel, Control (White)
2
Panel, Control (Black)
4
WP3191898 Whirlpool Surface Burner Cap Black
4
WP3191901 Whirlpool Burner Cap
5
WPW10268483 Whirlpool Grate Kit
7
WP3191328 Whirlpool Control Knob
10
Seal, Foam
13
WP9754215 Whirlpool Surface Igniter
14
WP3192523 Whirlpool Orifice
14
Orifice (RF)
14
WP9753930 Whirlpool Orifice
15
814513 Whirlpool Top Burner
15
Holder, Orifice (Includes 13 & 14) (RF 6K)
16
WP4455980 Whirlpool Burner Head
16
WP4455979 Whirlpool Range Small Burner Head
18
WP4449809 Whirlpool Screw
20
28“
20
15“
20
WP3368921 Whirlpool Screw
←
