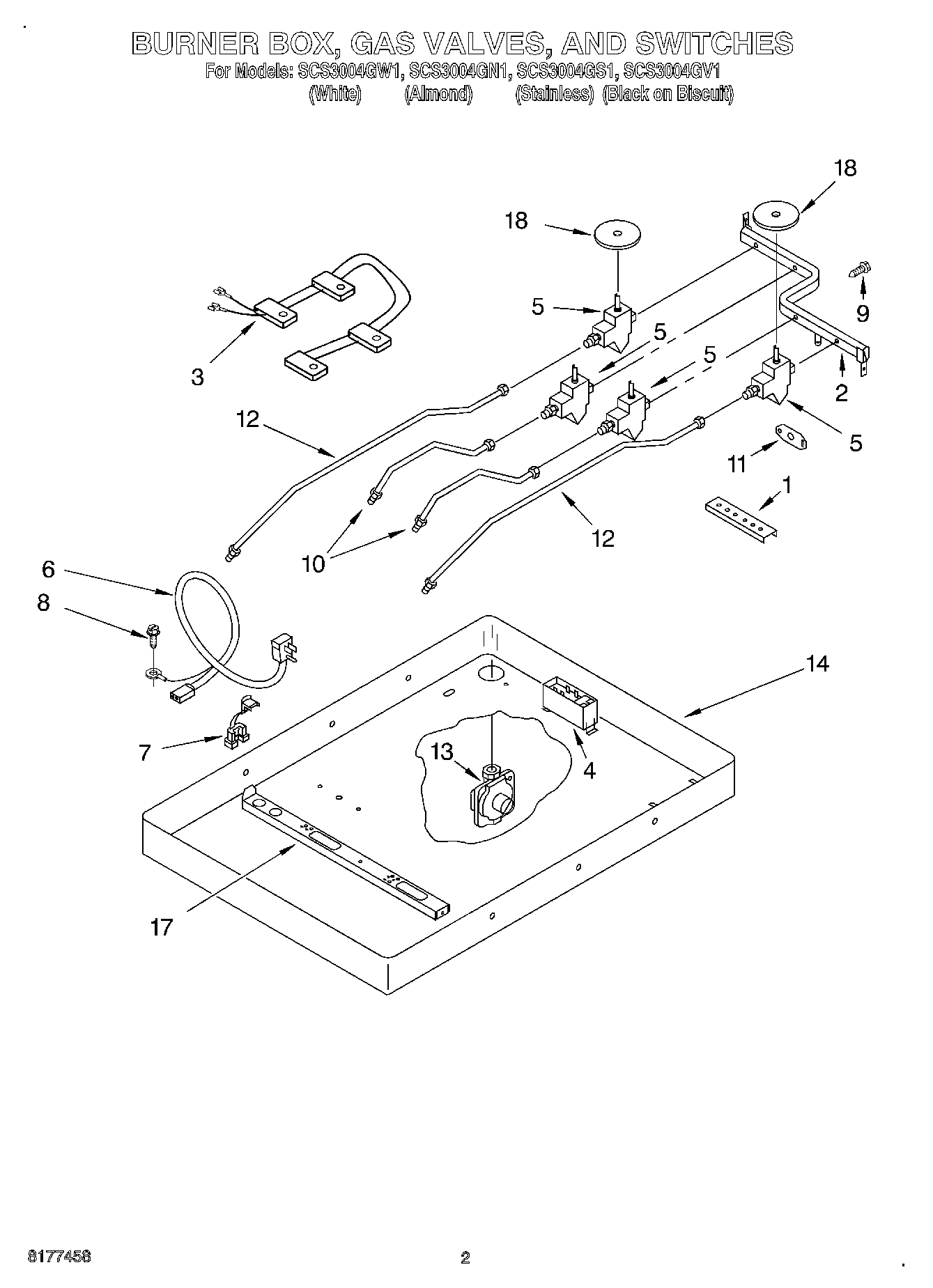

SCS3004GS1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

SCS3004GS1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

SCS3004GS1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
WP3192741 Whirlpool LP Conversion Kit
Insert Sheet – Wiring Diagram
Use And Care Guide
Wiring Diagram
Installation Instructions
Safer Cooking Tips
Hardware, Mounting
18186533 Whirlpool Hardware
1Screw
1Nut, Tinnerman (2)
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3WP3191334 Whirlpool Wire Harness
4WP8053421 Whirlpool Oven Spark Module
5Valve, Burner (Small (1))
5Valve, Burner (Large (3))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt, Gas Valve
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13Regulator, Pressure
14Box, Burner
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
