SCS3004GS2 01 – COOKTOP, BURNER AND GRATE
Written by
in

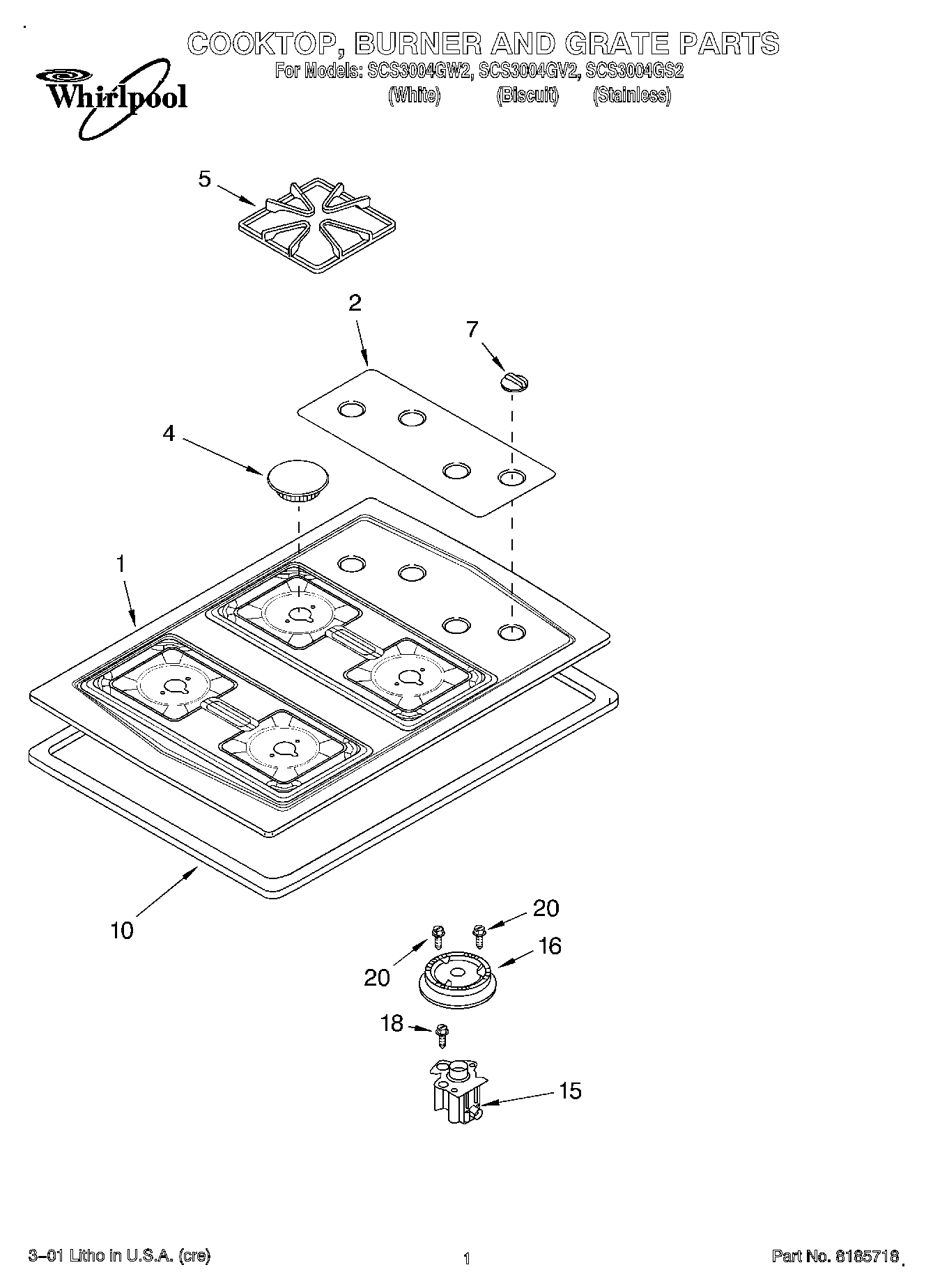

SCS3004GS2 01 – COOKTOP, BURNER AND GRATE
Products
Position
Product
1
W11230936 Whirlpool Cooktop
1
Cooktop (Biscuit)
1
WP3191242 Whirlpool Cooktop
1
WP3191243 Whirlpool Cooktop Assembly
2
Panel, Control (White)
2
Panel, Control (Black)
4
WP3191901 Whirlpool Burner Cap
4
WP3191898 Whirlpool Surface Burner Cap Black
5
WPW10268483 Whirlpool Grate Kit
7
WP3191328 Whirlpool Control Knob
10
Seal, Foam
15
Holder, Orifice (Includes 13 & 14) (RF 6K)
15
814513 Whirlpool Top Burner
16
WP4455979 Whirlpool Range Small Burner Head
16
WP4455980 Whirlpool Burner Head
18
WP4449809 Whirlpool Screw
20
28“
20
WP3368921 Whirlpool Screw
20
15“
←
