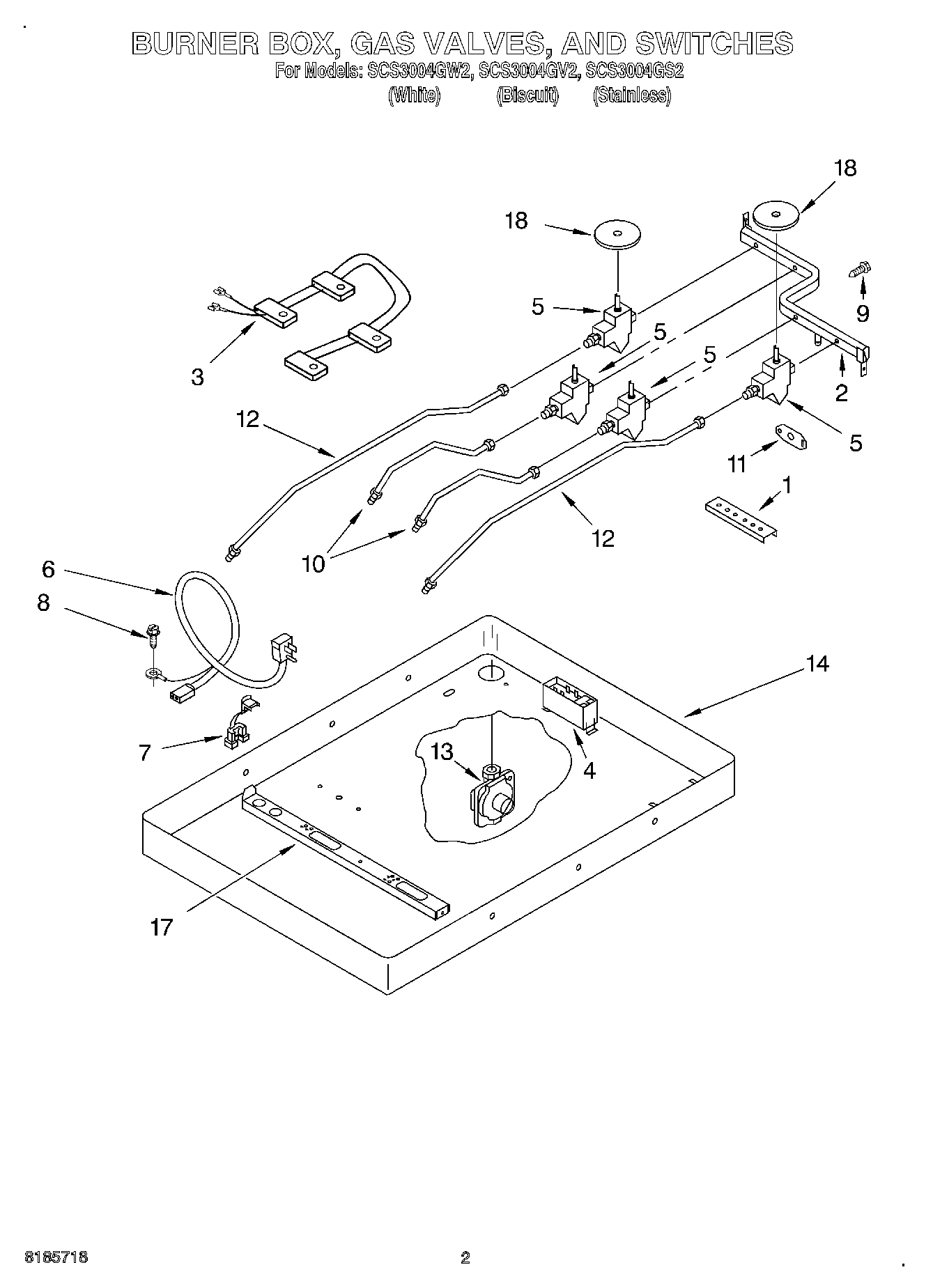

SCS3004GV2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Insert Sheet - Wiring Diagram
	Use And Care Guide
	Wiring Diagram
	Installation Instructions
	Safer Cooking Tips
	Hardware, Mounting
1	Screw
1	Nut, Tinnerman (2)
1	8186533 Whirlpool Hardware
2	W10491985 Whirlpool Screw
2	9759354 Whirlpool Oven Manifold Pipe
3	WP3191334 Whirlpool Wire Harness
4	WP8053421 Whirlpool Oven Spark Module
5	Valve, Burner (Large (3))
5	Valve, Burner (Small (1))
6	W10392007 Whirlpool Power Cord
7	4173634 Whirlpool Bushing
8	WP3177991 Whirlpool Screw
9	Bolt (Gas Valve)
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	3191320 Whirlpool Oven Gas Tubing
13	Regulator, Pressure
14	Box, Burner
17	WP4449809 Whirlpool Screw
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
