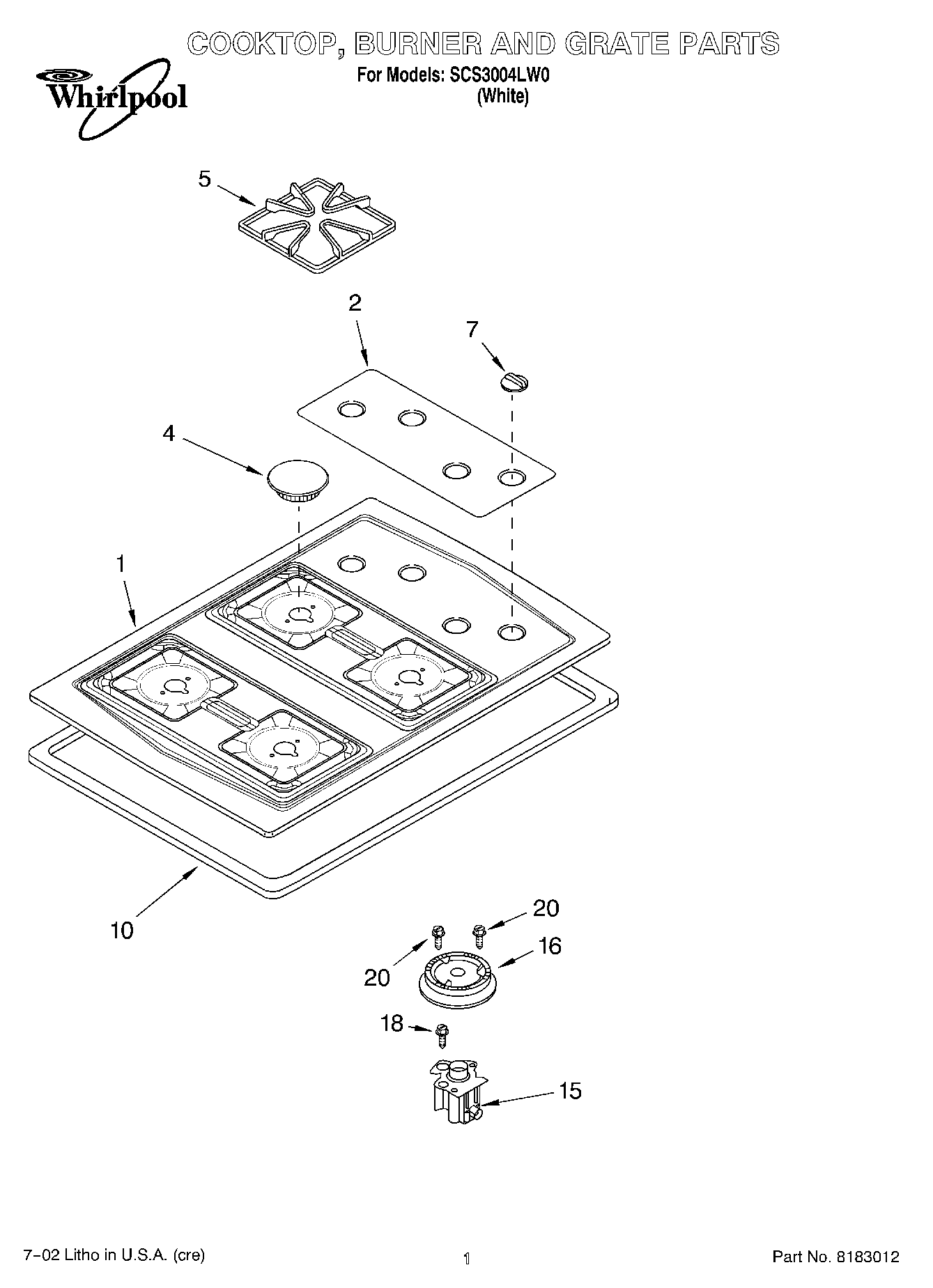

SCS3004LW0 01 – COOKTOP, BURNER AND GRATE

SCS3004LW0 01 – COOKTOP, BURNER AND GRATE

Written by

in

SCS3004LW0 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1WP3191243 Whirlpool Cooktop Assembly
2Panel, Control (Black)
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
7Knob, Control (4) (Black)
10Seal, Foam
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15814513 Whirlpool Top Burner
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
18WP4449809 Whirlpool Screw
2028“
2015“
20WP3368921 Whirlpool Screw
