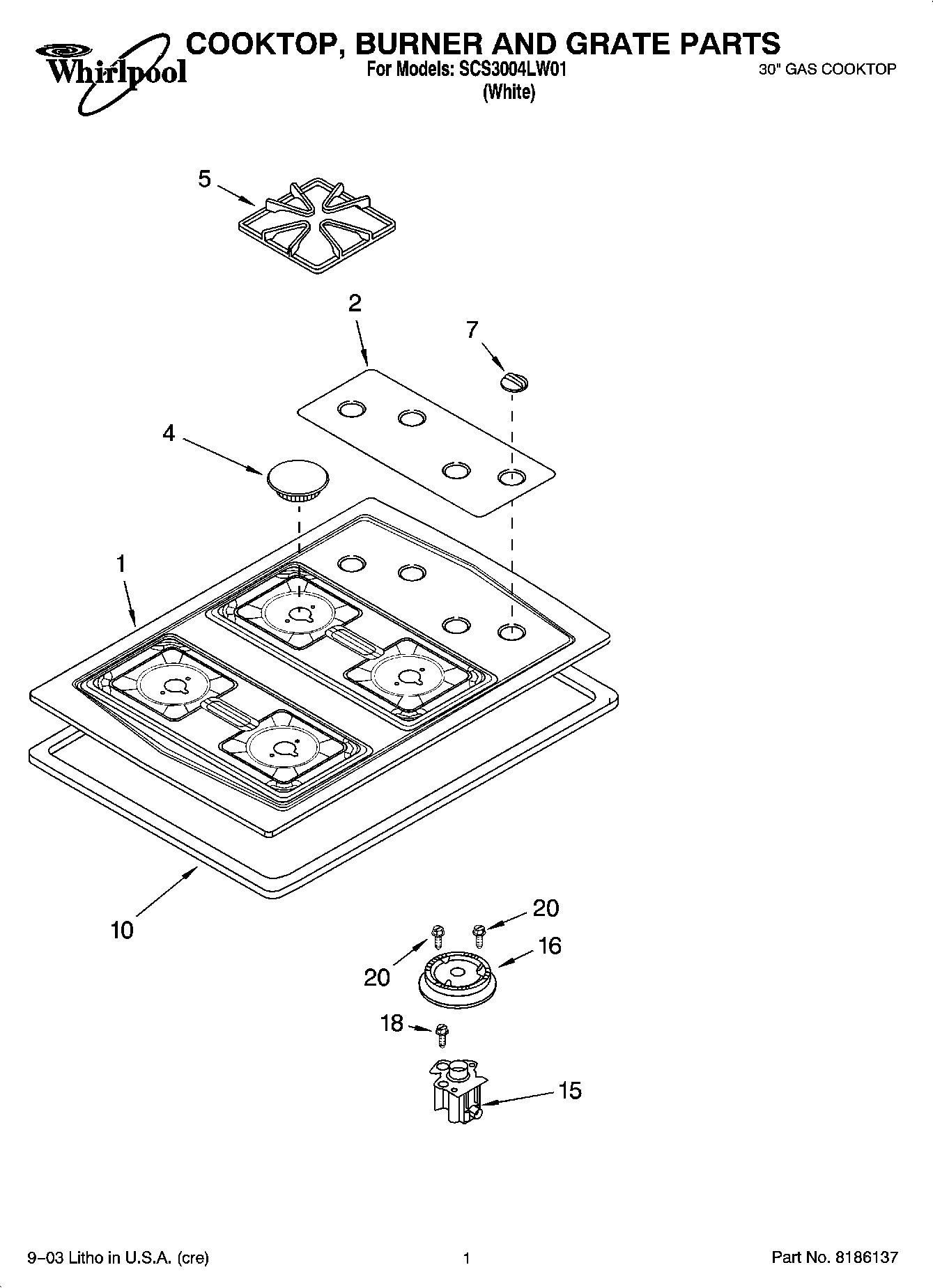

SCS3004LW01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1WP3191243 Whirlpool Cooktop Assembly
2Panel, Control (Black)
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
7Knob, Control (4) (Black)
10Seal, Foam
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10155784 Whirlpool Orifice Holder
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
18WP4449809 Whirlpool Screw
204456626 Whirlpool Wire
204456627 Whirlpool Wire Harness
20WP3368921 Whirlpool Screw
20WIRING HARNESS PARTS Harness, Wire Ignitor
