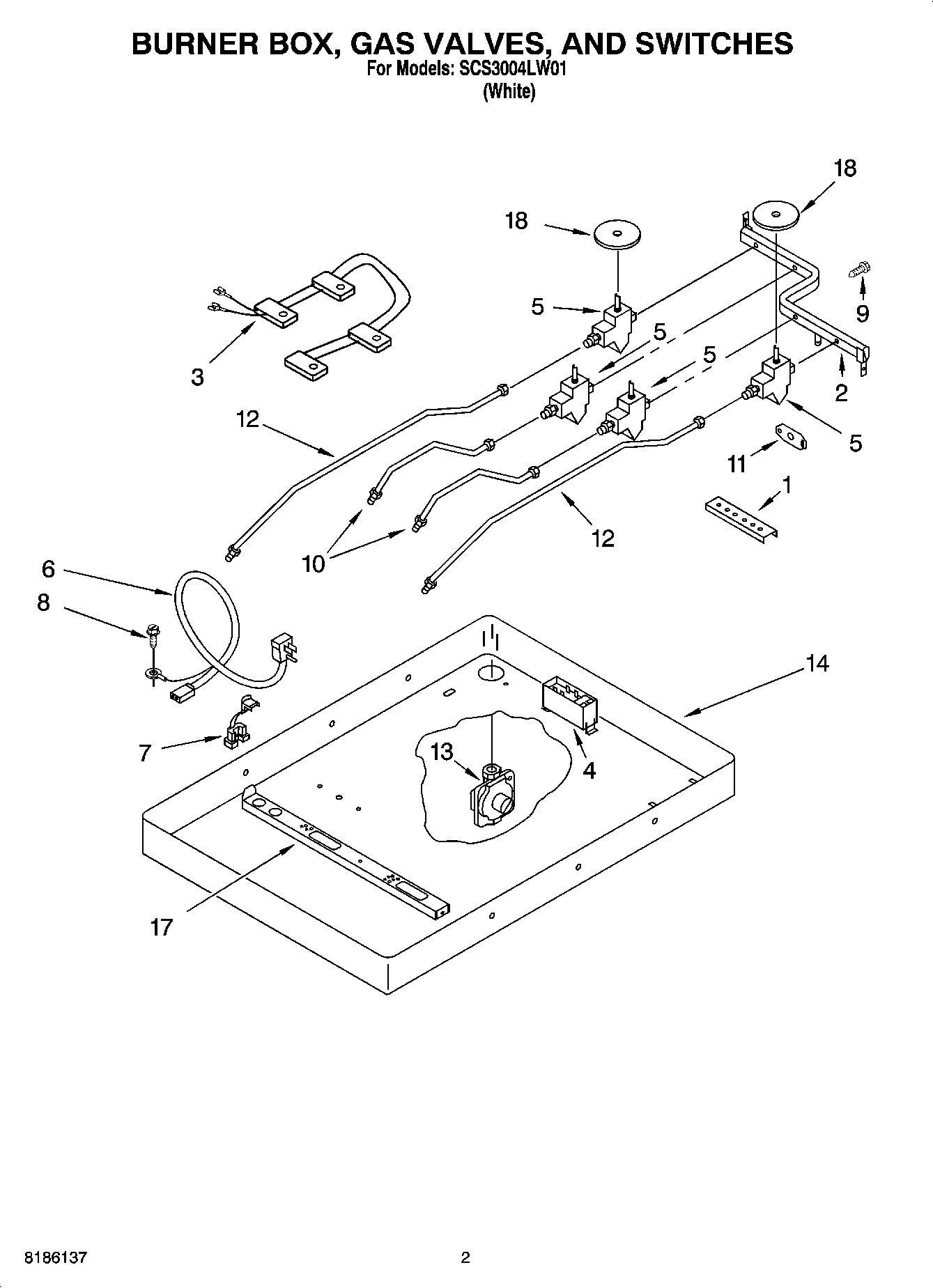

SCS3004LW01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1WP3400093 Whirlpool Screw
18186533 Whirlpool Hardware
2W10491985 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
3Harness & Switches
4WP12990527 Whirlpool Microwave Screw
4WPW10110491 Whirlpool Spark Module
5Valve, Burner (Small (1))
5Valve, Burner (Large (3))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13Regulator, Pressure
144456780 Whirlpool Oven Burner Box
14WP3196557 Whirlpool Screw
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18Hardware Kit (Mounting)
18LITERATURE PARTS
18Literature Parts (Use & Care Guide)
18Literature Parts (Installation Instructions)
18WP3188425 Whirlpool Seal Switch
18WP3192741 Whirlpool LP Conversion Kit
18LP Conversion Instructions
18Wiring Diagram
18Safer Cooking Tips
18Following Parts Not Illustrated and Optional Parts Not Included
