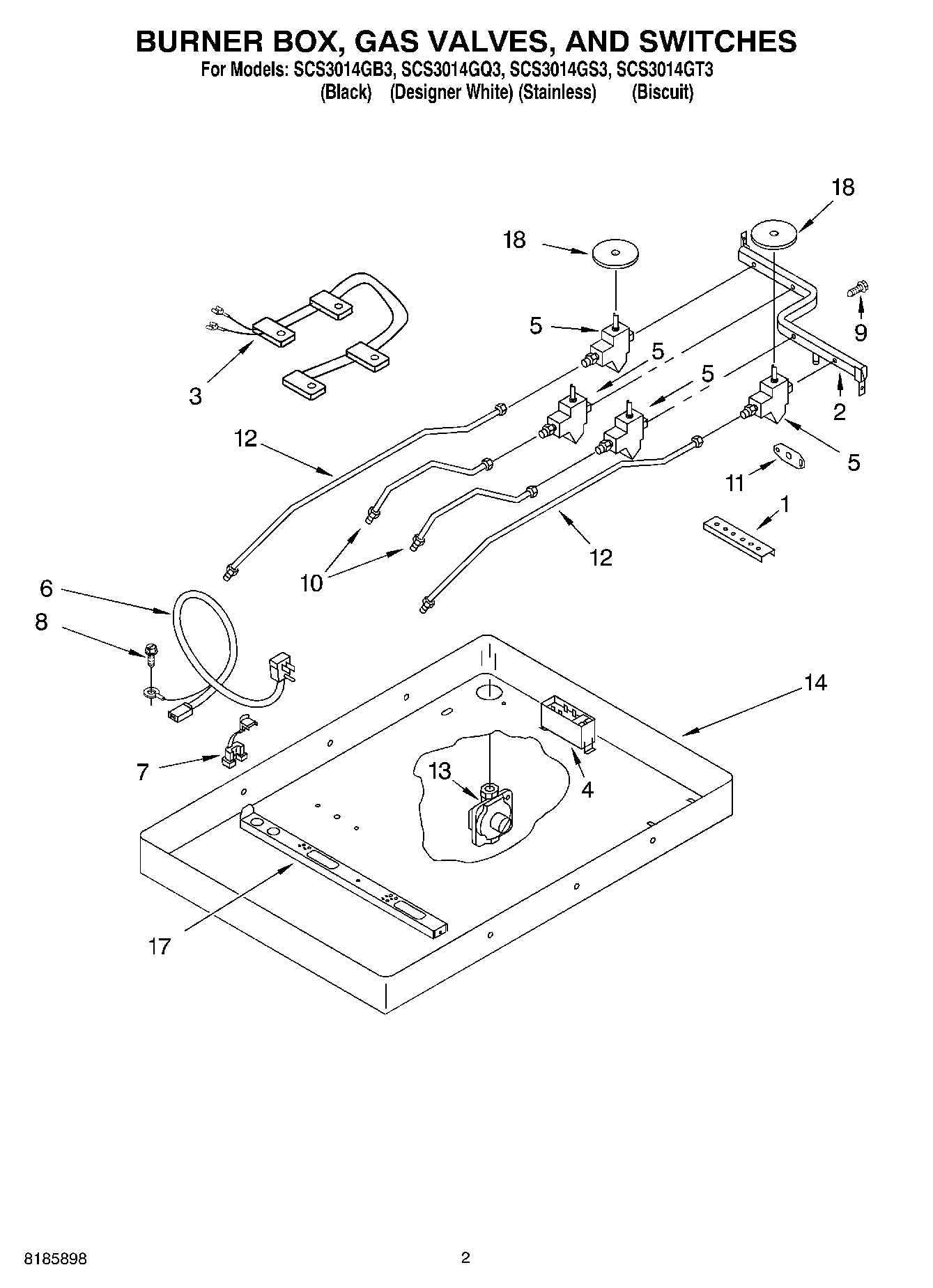

SCS3014GB3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	8186533 Whirlpool Hardware
1	Screw
1	Nut, Tinnerman (2)
2	9759354 Whirlpool Oven Manifold Pipe
2	W10491985 Whirlpool Screw
3	WP3191334 Whirlpool Wire Harness
4	WP12990527 Whirlpool Microwave Screw
4	WPW10110491 Whirlpool Spark Module
5	Valve, Burner (Large (3))
5	Valve, Burner (Small (1))
6	W10392007 Whirlpool Power Cord
7	4173634 Whirlpool Bushing
8	WP3177991 Whirlpool Screw
9	Bolt (Gas Valve)
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	3191320 Whirlpool Oven Gas Tubing
13	Regulator, Pressure
14	4456780 Whirlpool Oven Burner Box
17	WP4449809 Whirlpool Screw
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
18	Hardware, Mounting
18	WP3192741 Whirlpool LP Conversion Kit
