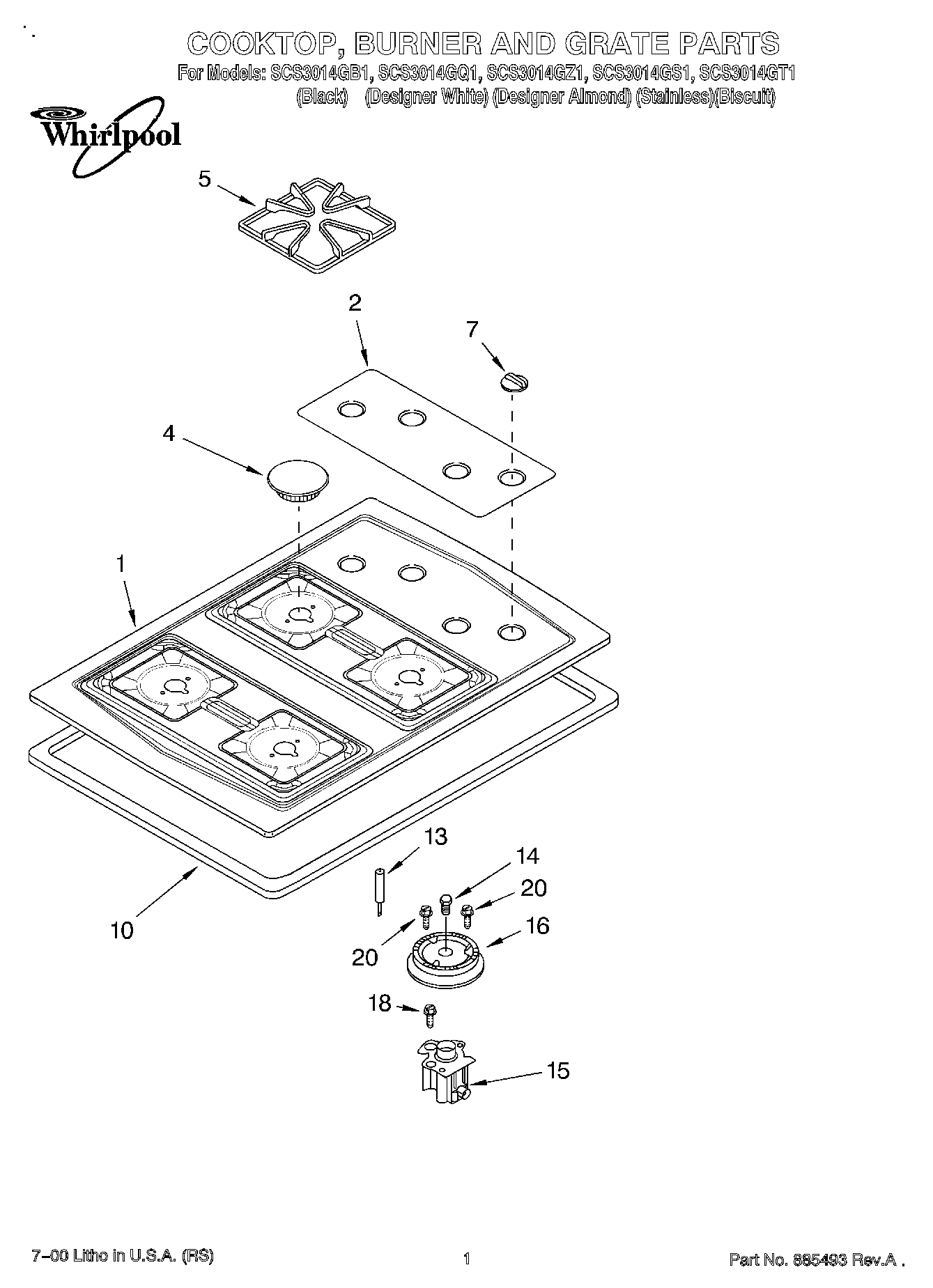

SCS3014GS1 01 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	W11230936 Whirlpool Cooktop
1	WP3191243 Whirlpool Cooktop Assembly
1	WP3191242 Whirlpool Cooktop
1	Cooktop (Biscuit)
1	Cooktop (Almond)
2	Panel, Control (Black)
2	Panel, Control (White)
2	Panel, Control (Biscuit)
2	Panel, Control (Almond)
4	Cap, Burner 6K (1) (Gray)
4	WP3191898 Whirlpool Surface Burner Cap Black
4	WP3191901 Whirlpool Burner Cap
4	WP3191903 Whirlpool Burner Cap
4	WP3191904 Whirlpool Burner Cap
4	WP3191905 Whirlpool Burner Cap
5	WPW10447925 Whirlpool Grate Kit
5	WP8053456 Whirlpool Burner Grate
7	WP3191328 Whirlpool Control Knob
10	Seal, Foam
13	Ignitor
14	Orifice (RF)
14	WP9753930 Whirlpool Orifice
14	WP3192523 Whirlpool Orifice
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	814513 Whirlpool Top Burner
16	WP4455981 Whirlpool Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	28``
20	15``
20	WP3368921 Whirlpool Screw
