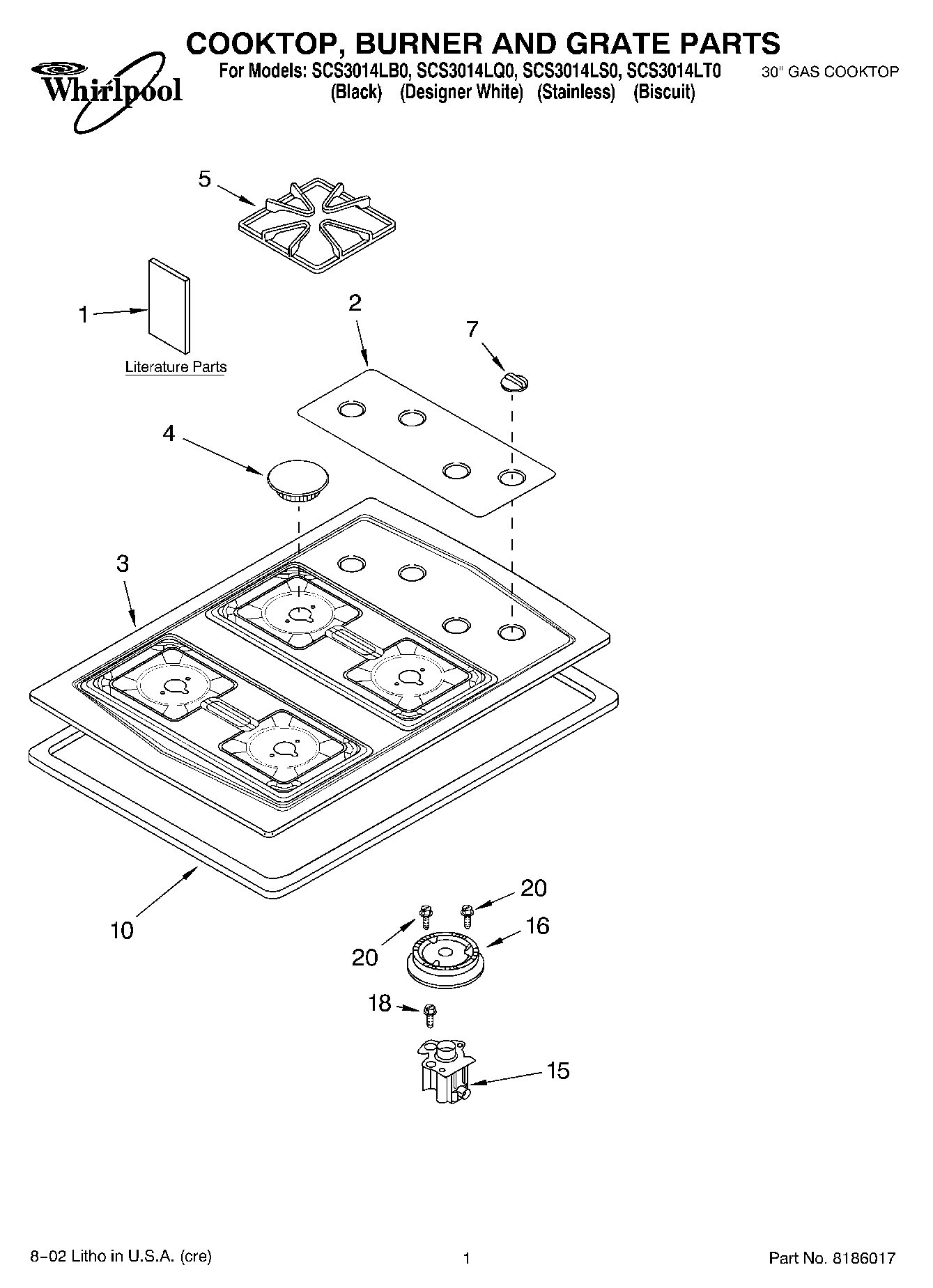

SCS3014LB0 01 – COOKTOP, BURNER AND GRATE

SCS3014LB0 01 – COOKTOP, BURNER AND GRATE

Written by

in

SCS3014LB0 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Safer Cooking Tips
1Wiring Diagram
1LP Conversion Instructions
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
2Panel, Control (White)
2Panel, Control (Black)
2Panel, Control (Biscuit)
3WP3191242 Whirlpool Cooktop
3Cooktop (Biscuit)
3W11230936 Whirlpool Cooktop
3WP3191243 Whirlpool Cooktop Assembly
4WP3191901 Whirlpool Burner Cap
4WP8273343 Whirlpool Burner Cap
4WP8273344 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP8273345 Whirlpool Burner Cap
4WP3191905 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
4Cap, Burner 6K (1) (Gray)
4WP3191903 Whirlpool Burner Cap
5Grate (4) (Espresso)
5WPW10447925 Whirlpool Grate Kit
7Knob, Control (4) (Biscuit)
7Knob, Control (4) (White)
7Knob, Control (4) (Black)
10Seal, Foam
15814513 Whirlpool Top Burner
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15Holder, Orifice (Includes 13 & 14) (LF 12K)
16WP4455979 Whirlpool Range Small Burner Head
16WP4455980 Whirlpool Burner Head
16WP4455981 Whirlpool Burner Head
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
2028“
2015“
