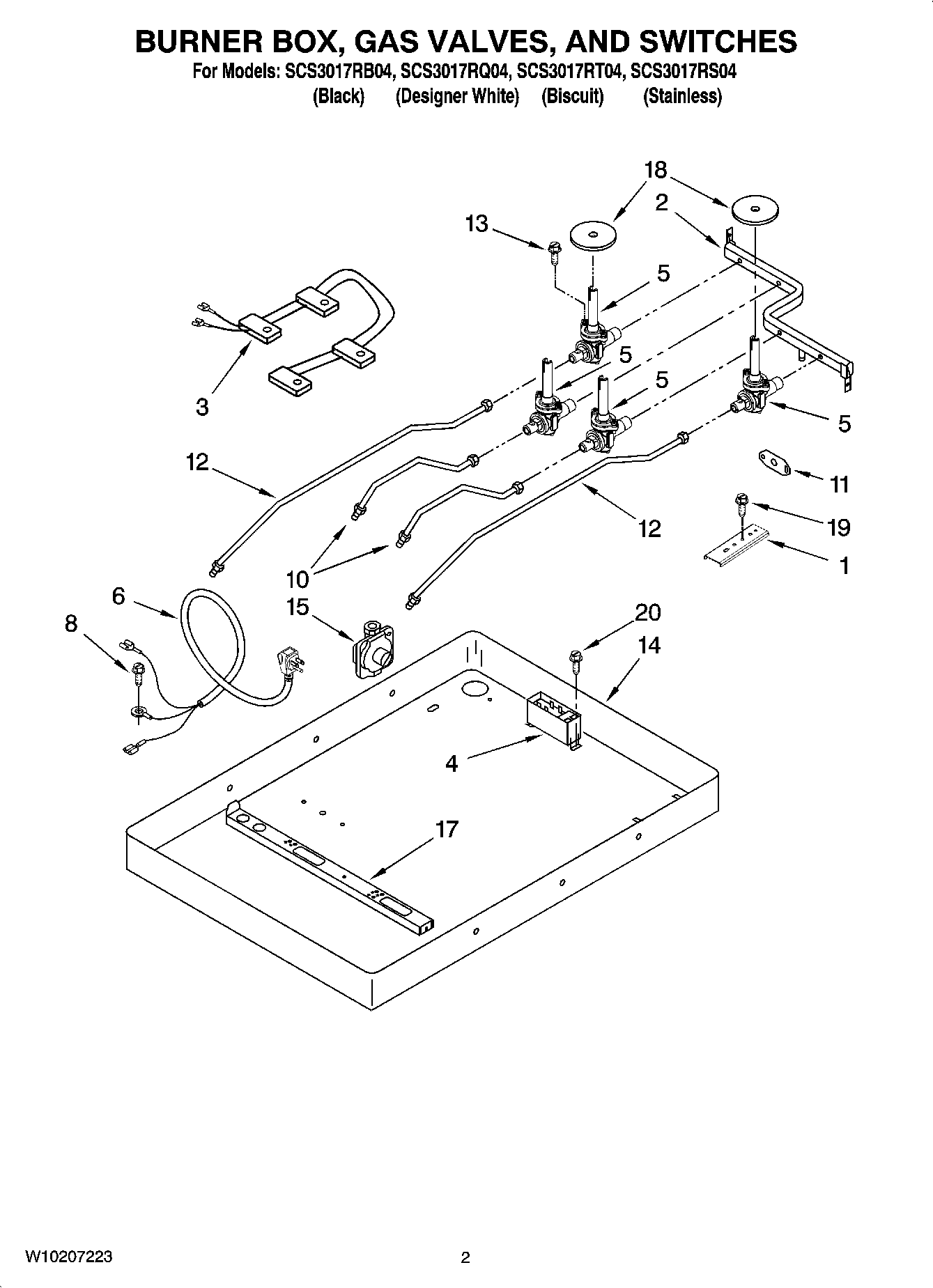

SCS3017RB04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Following Parts Not Illustrated and Optional Parts Not Included
	WP8286320 Whirlpool Spud Orifice
1	8186533 Whirlpool Hardware
2	9759354 Whirlpool Oven Manifold Pipe
3	WP4456905 Whirlpool Wire Harness
4	WPW10110491 Whirlpool Spark Module
5	WP4456817 Whirlpool Burner Valve
5	Valve, Gas Burner (Yellow)
5	Valve, Gas Burner (White)
6	W10392007 Whirlpool Power Cord
8	WP3177991 Whirlpool Screw
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	3191320 Whirlpool Oven Gas Tubing
13	W10491985 Whirlpool Screw
14	4456780 Whirlpool Oven Burner Box
15	Regulator, Pressure
15	W11170853 Whirlpool Regulator Assembly
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
19	WP3400093 Whirlpool Screw
20	WP12990527 Whirlpool Microwave Screw
