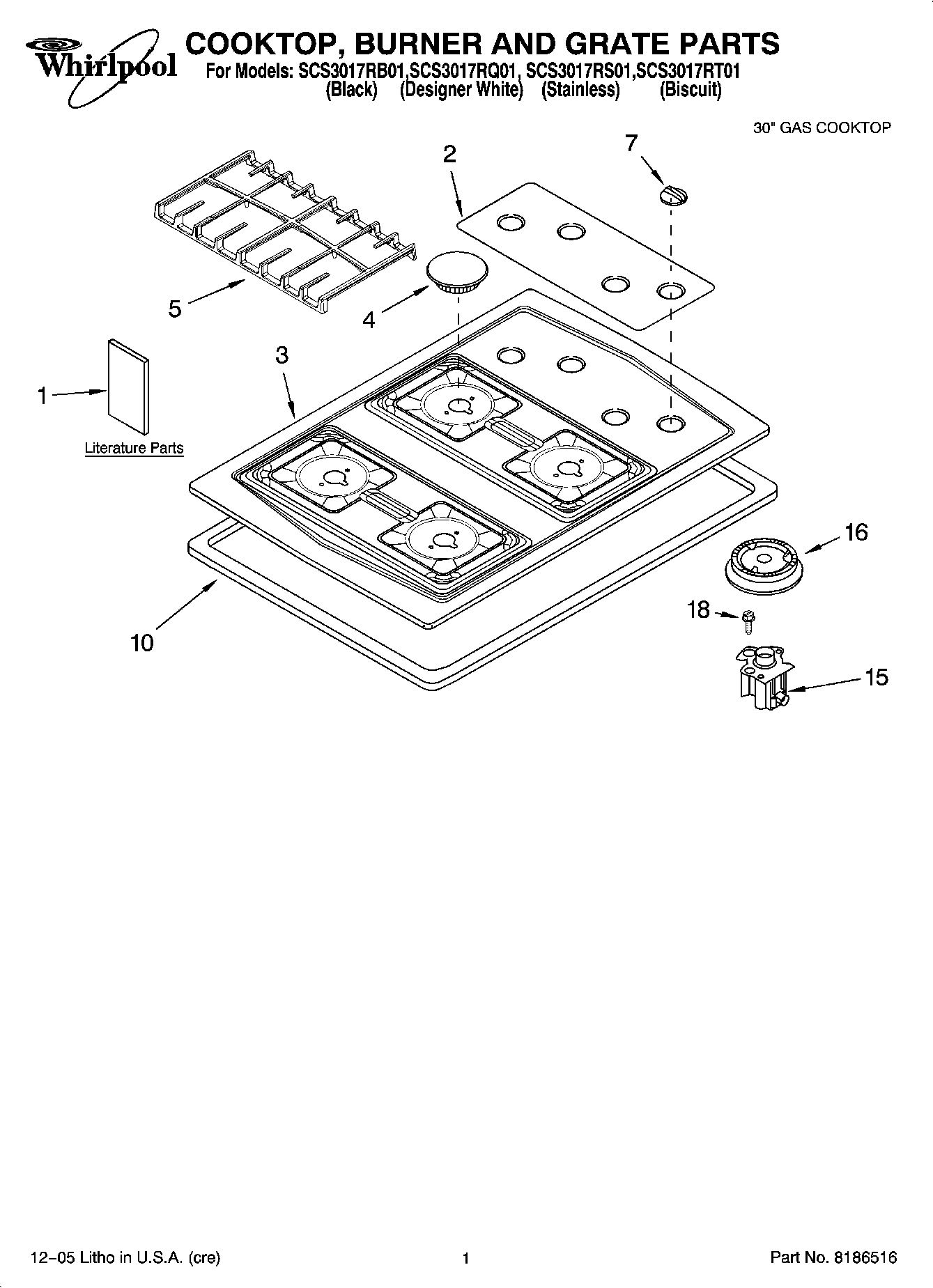

SCS3017RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

SCS3017RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

SCS3017RQ01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Installation Instructions
1L.P. Conversion Instructions
1Use & Care Guide
2WP8286502 Whirlpool Control Panel
28286503 Whirlpool Oven Control Panel
2Panel, Control (Biscuit)
3WP3191242 Whirlpool Cooktop
3WP3191243 Whirlpool Cooktop Assembly
3W11230936 Whirlpool Cooktop
3Cooktop (Biscuit)
4WP8286154CG Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4Cap, Burner 6K (RR) (Espresso)
4WP8286155CG Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286153CG Whirlpool Burner Cap
48286155EP Whirlpool Burner Cap
5GRATE LEFT HAND (CUMBERLAND GRAY)
5GRATE LEFT HAND (ESPRESSO)
5GRATE RIGHT HAND (ESPRESSO)
5Grate Left (Coal Matte Black)
5Grate Right (Coal Matte Black)
5GRATE RIGHT HAND (CUMBERLAND GRAY)
7WP8286057BL Whirlpool Knob Replacement
78286057BT Whirlpool Knob
7WP8286057WH Whirlpool Knob
10Seal, Foam
15WPW10128450 Whirlpool Orifice Holder
15WPW10128449 Whirlpool Orifice Holder
15WPW10128451 Whirlpool Orifice Holder
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
18WPL ARI128741A
184456627 Whirlpool Wire Harness
18WP4449809 Whirlpool Screw
184456626 Whirlpool Wire
