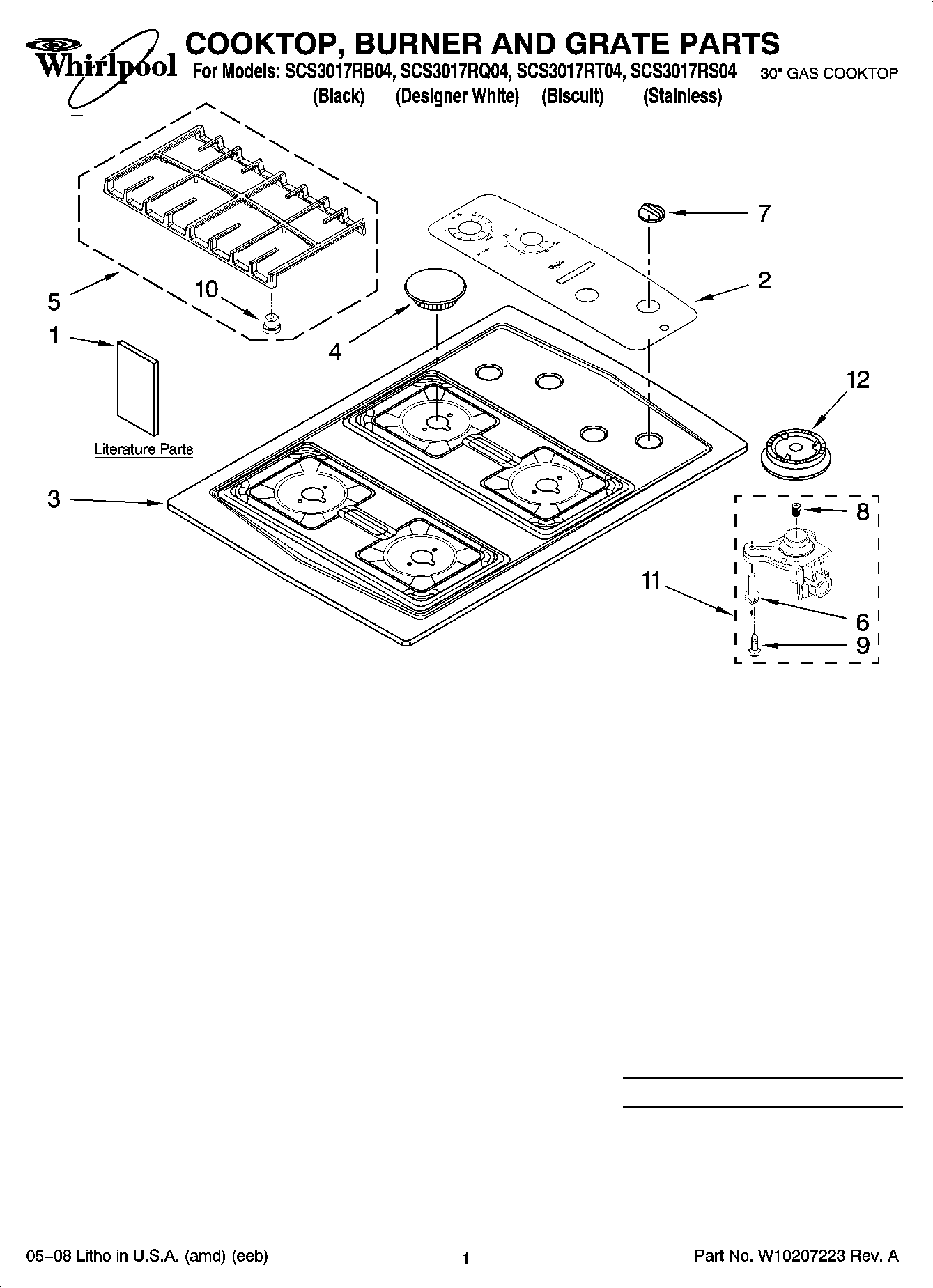

SCS3017RQ04 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
SCS3017RQ04 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
WPL ARI128747A
4456626 Whirlpool Wire
4456627 Whirlpool Wire Harness
1
Installation Instructions
1
Safe Cooking Tips
1
Safe Cooking Tips (French)
1
Use & Care Guide
1
Wiring Diagram
2
WP8286502 Whirlpool Control Panel
2
Panel, Control (Biscuit)
2
8286503 Whirlpool Oven Control Panel
3
Cooktop (Biscuit)
3
WP3191242 Whirlpool Cooktop
3
WP3191243 Whirlpool Cooktop Assembly
3
W11230936 Whirlpool Cooktop
4
8286155EP Whirlpool Burner Cap
4
Cap, Burner 9.5K (LR) (Espresso)
4
Cap, Burner 6K (RR) (Espresso)
4
WP8286154CG Whirlpool Burner Cap
4
WP8286155CG Whirlpool Burner Cap
4
WP8286153CG Whirlpool Burner Cap
4
WP8286155CB Whirlpool Burner Cap
4
WP8286154CB Whirlpool Burner Cap
4
WP8286153CB Whirlpool Burner Cap
5
Grate Left (Coal Matte Black)
5
GRATE RIGHT HAND (CUMBERLAND GRAY)
5
GRATE LEFT HAND (ESPRESSO)
5
GRATE LEFT HAND (CUMBERLAND GRAY)
5
Grate Right (Coal Matte Black)
5
GRATE RIGHT HAND (ESPRESSO)
6
WP9782116 Whirlpool Surface Igniter
7
8286057BT Whirlpool Knob
7
WP8286057BL Whirlpool Knob Replacement
7
WP8286057WH Whirlpool Knob
8
WP3192523 Whirlpool Orifice
8
8286473 Whirlpool Oven Orifice
8
8286551 Whirlpool Oven Orifice
9
WP8273062 Whirlpool Screw
10
W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
11
WPW10128450 Whirlpool Orifice Holder
11
WPW10128451 Whirlpool Orifice Holder
11
WPW10128449 Whirlpool Orifice Holder
12
WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
12
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12
WPW10406243 Whirlpool Burner Head Auxiliary 6K
←
