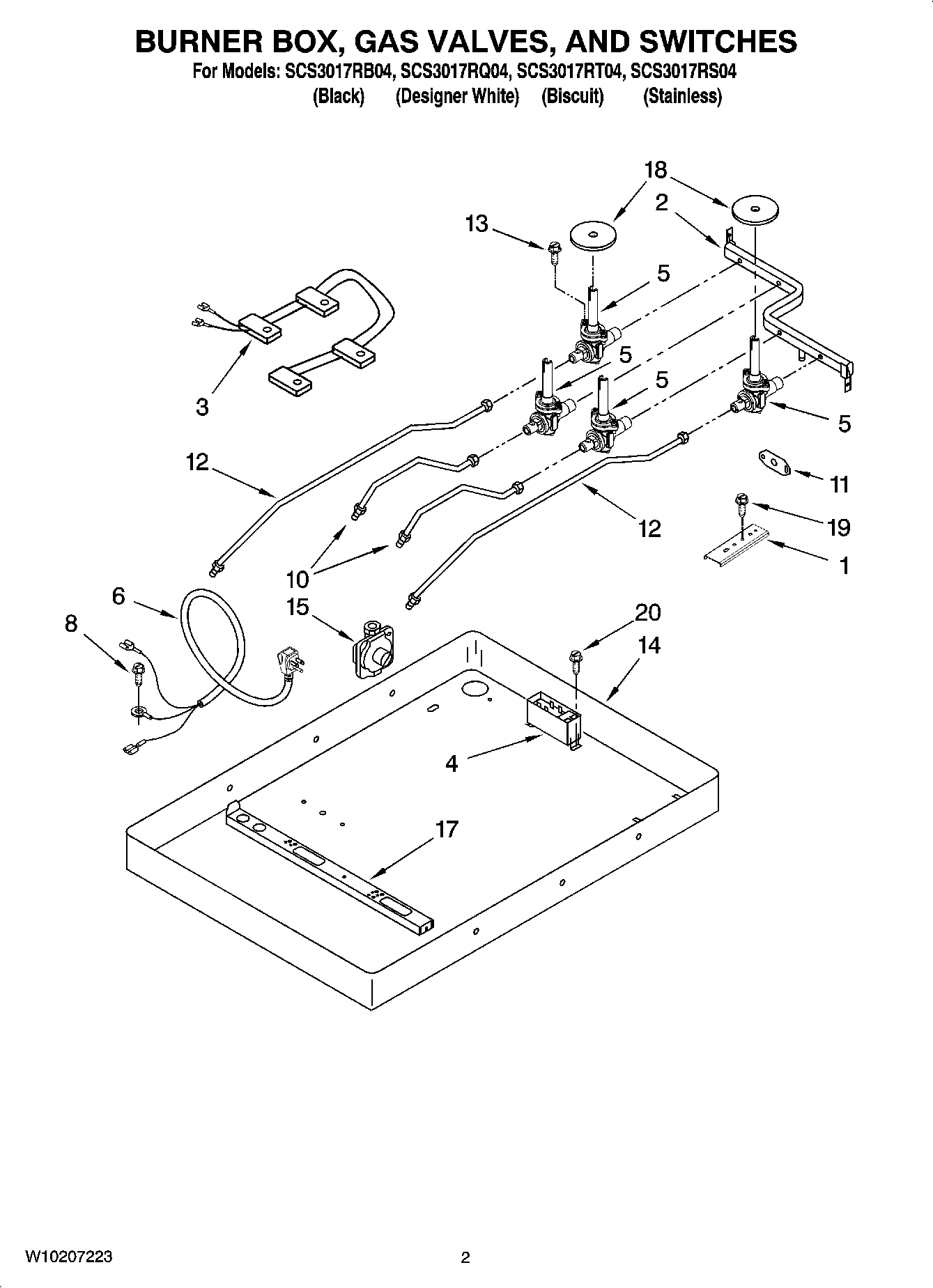

SCS3017RQ04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Following Parts Not Illustrated and Optional Parts Not Included
WP8286320 Whirlpool Spud Orifice
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5WP4456817 Whirlpool Burner Valve
5Valve, Gas Burner (Yellow)
5Valve, Gas Burner (White)
6W10392007 Whirlpool Power Cord
8WP3177991 Whirlpool Screw
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13W10491985 Whirlpool Screw
144456780 Whirlpool Oven Burner Box
15Regulator, Pressure
15W11170853 Whirlpool Regulator Assembly
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
19WP3400093 Whirlpool Screw
20WP12990527 Whirlpool Microwave Screw
