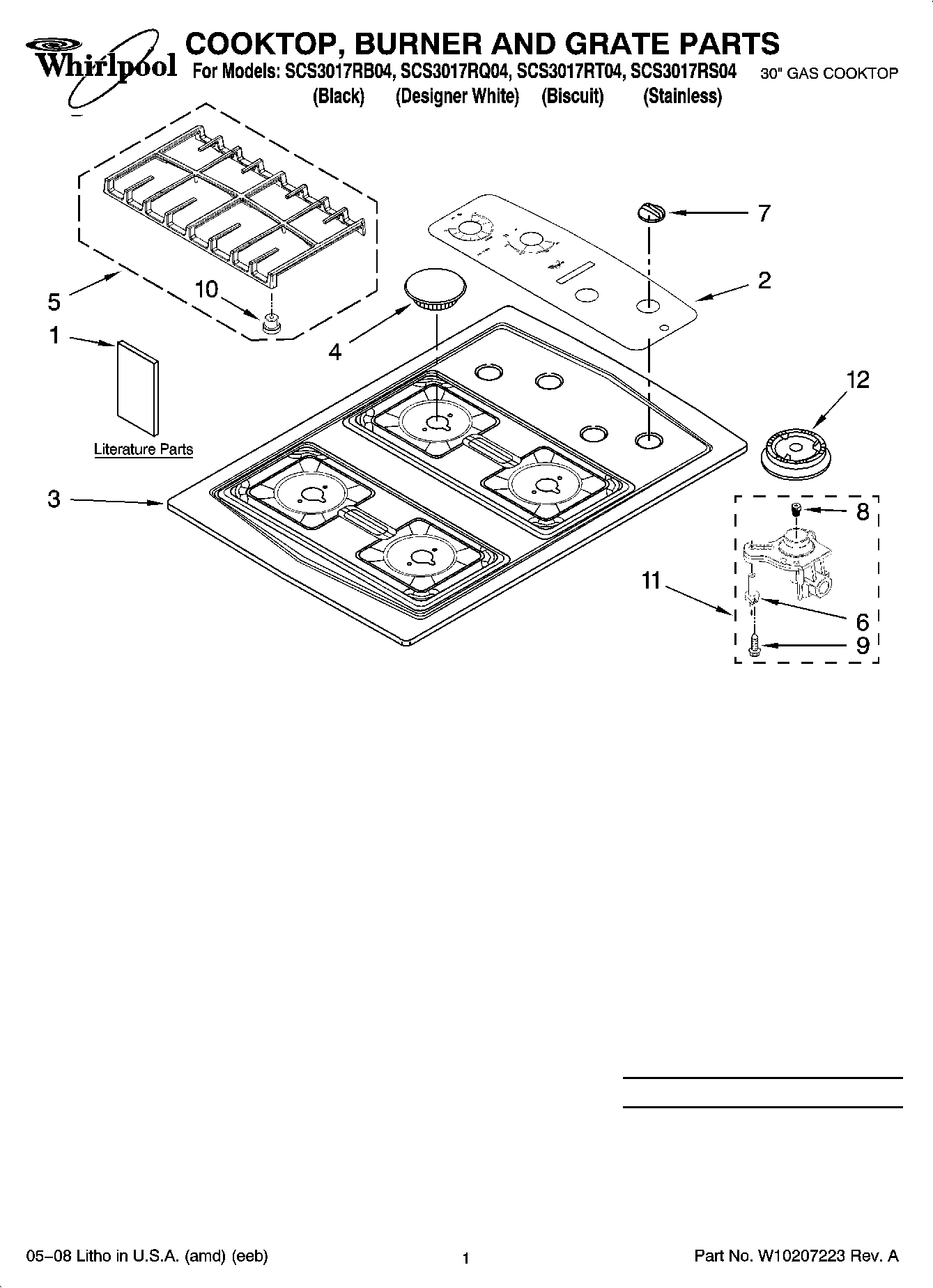

SCS3017RT04 01 – COOKTOP, BURNER AND GRATE PARTS

SCS3017RT04 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

SCS3017RT04 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
WPL ARI128763A
4456627 Whirlpool Wire Harness
4456626 Whirlpool Wire
1Installation Instructions
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Use & Care Guide
1Wiring Diagram
2WP8286502 Whirlpool Control Panel
28286503 Whirlpool Oven Control Panel
2Panel, Control (Biscuit)
3Cooktop (Biscuit)
3WP3191243 Whirlpool Cooktop Assembly
3W11230936 Whirlpool Cooktop
3WP3191242 Whirlpool Cooktop
4WP8286154CG Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4WP8286153CG Whirlpool Burner Cap
4WP8286155CG Whirlpool Burner Cap
48286155EP Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4Cap, Burner 6K (RR) (Espresso)
5Grate Right (Coal Matte Black)
5Grate Left (Coal Matte Black)
5GRATE RIGHT HAND (CUMBERLAND GRAY)
5GRATE LEFT HAND (ESPRESSO)
5GRATE LEFT HAND (CUMBERLAND GRAY)
5GRATE RIGHT HAND (ESPRESSO)
6WP9782116 Whirlpool Surface Igniter
78286057BT Whirlpool Knob
7WP8286057BL Whirlpool Knob Replacement
7WP8286057WH Whirlpool Knob
8WP3192523 Whirlpool Orifice
88286473 Whirlpool Oven Orifice
88286551 Whirlpool Oven Orifice
9WP8273062 Whirlpool Screw
10W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
11WPW10128450 Whirlpool Orifice Holder
11WPW10128451 Whirlpool Orifice Holder
11WPW10128449 Whirlpool Orifice Holder
12WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
12WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12WPW10406243 Whirlpool Burner Head Auxiliary 6K
