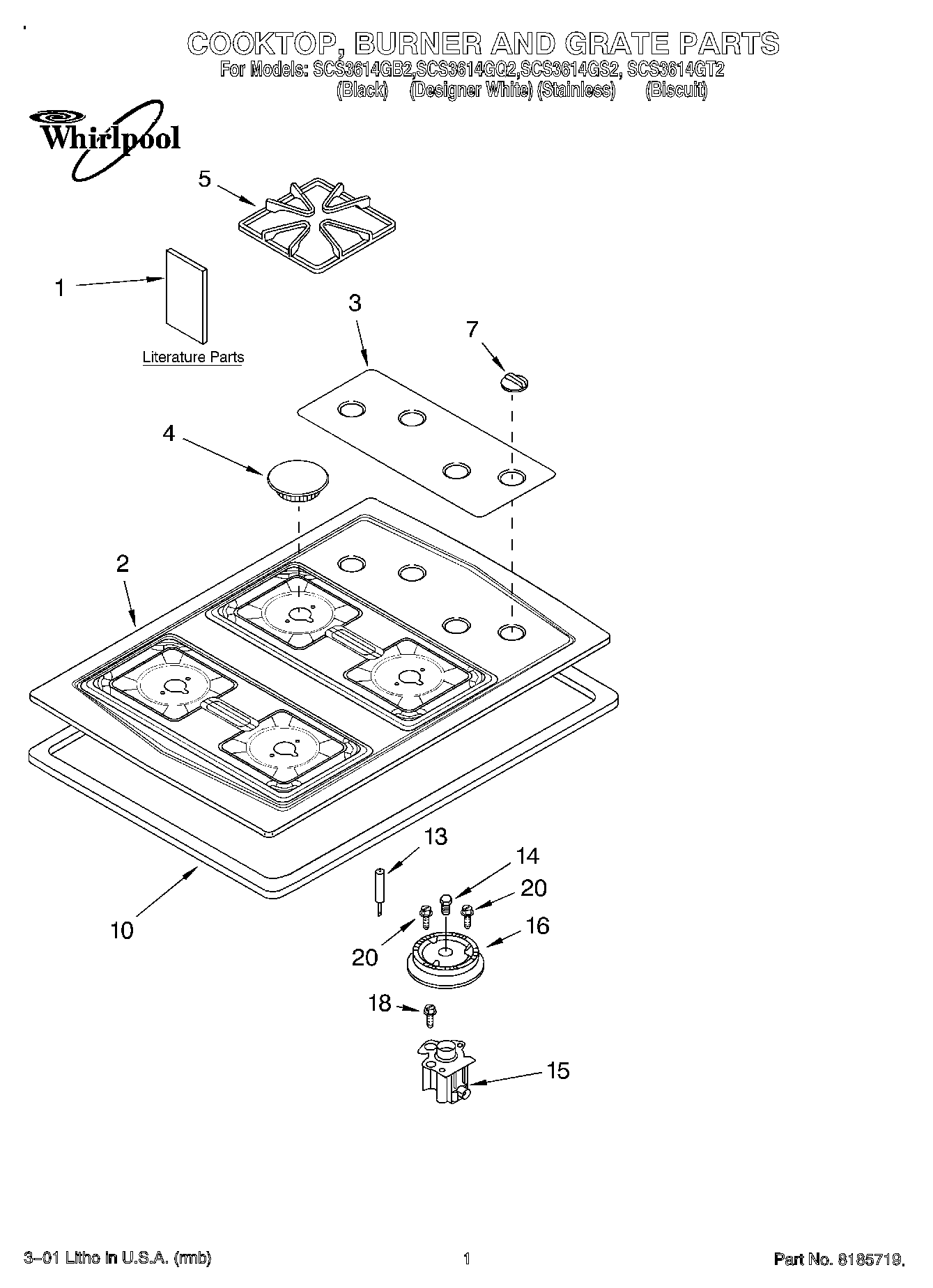

SCS3614GB2 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Safer Cooking Tips
1Installation Instructions
1Wiring Diagram
1LP Conversion Instructions
1Use And Care Guide
2Cooktop (Black)
2Cooktop (White)
2Cooktop (Stainless)
2Cooktop (Biscuit)
3Panel, Control (White)
3Panel, Control (Black)
3Panel, Control (Biscuit)
4Cap, Burner 6K (1) (Gray)
4WP3191905 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
5WP8053456 Whirlpool Burner Grate
5WPW10447925 Whirlpool Grate Kit
7WP3191328 Whirlpool Control Knob
10Seal, Foam
13WP9754215 Whirlpool Surface Igniter
14Orifice (RF)
14WP3192523 Whirlpool Orifice
14WP9753930 Whirlpool Orifice
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15814513 Whirlpool Top Burner
15Holder, Orifice (Includes 13 & 14) (LF 12K)
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
16WP4455981 Whirlpool Burner Head
18WP4449809 Whirlpool Screw
2028“
2015“
20WP3368921 Whirlpool Screw
