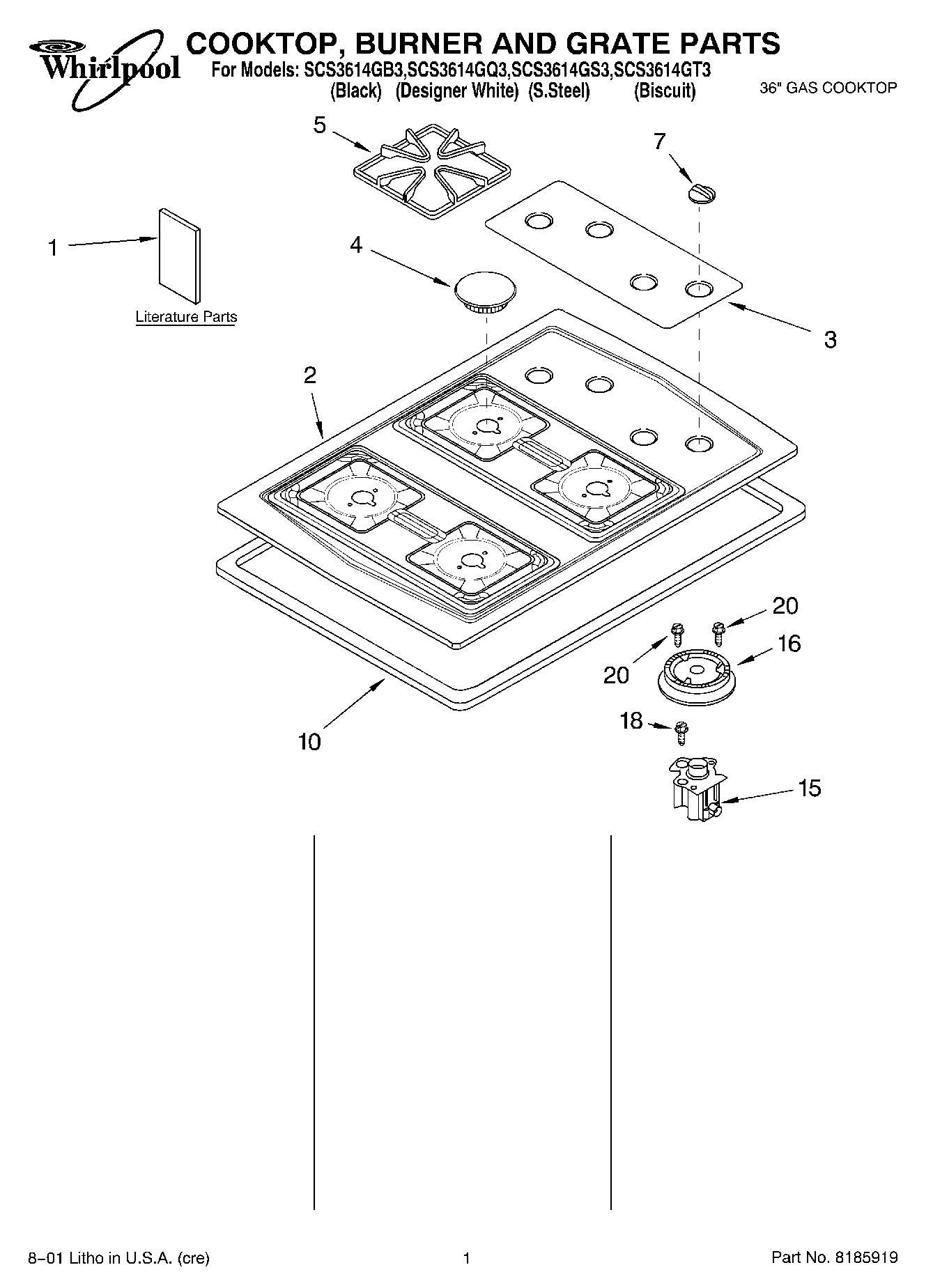

SCS3614GQ3 01 – COOKTOP, BURNER AND GRATE

SCS3614GQ3 01 – COOKTOP, BURNER AND GRATE

Written by

in

SCS3614GQ3 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Safer Cooking Tips
1Wiring Diagram
1LP Conversion Instructions
1Use And Care Guide
1Literature Parts (Installation Instructions)
2Cooktop (Black)
2Cooktop (White)
2Cooktop (Stainless)
2Cooktop (Biscuit)
3Panel, Control (White)
3Panel, Control (Black)
3Panel, Control (Biscuit)
4Cap, Burner 6K (1) (Gray)
4WP3191905 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191901 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
5WP8053456 Whirlpool Burner Grate
5WPW10447925 Whirlpool Grate Kit
7WP3191328 Whirlpool Control Knob
10Seal, Foam
15Holder, Orifice (Includes 13 & 14) (LF 12K)
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15814513 Whirlpool Top Burner
16WP4455981 Whirlpool Burner Head
16WP4455980 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
18WP4449809 Whirlpool Screw
2015“
20WP3368921 Whirlpool Screw
2028“
