SCS3614LB0 01 – SECTION

SCS3614LB0 01 – SECTION

Written by

in

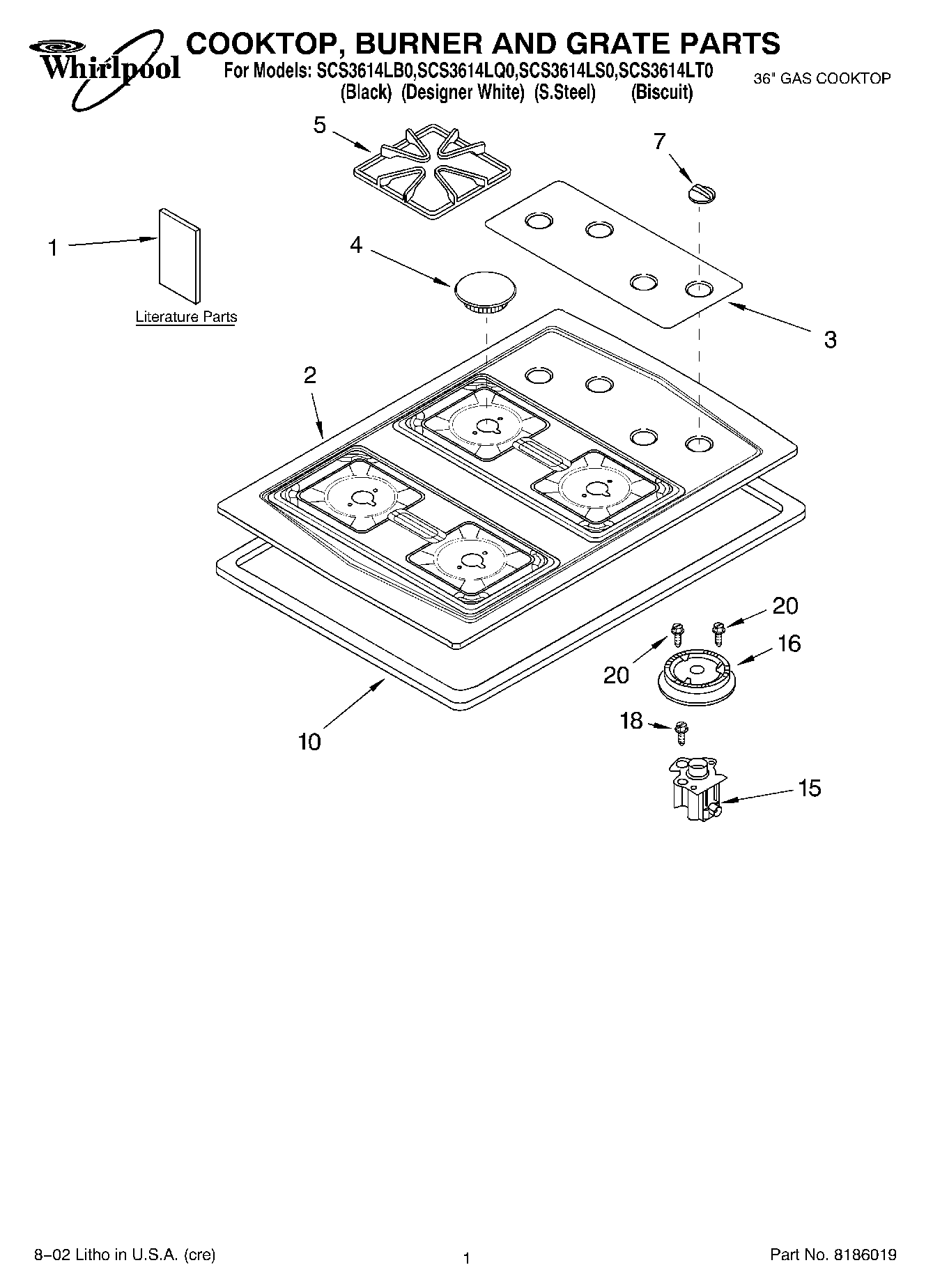

SCS3614LB0 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Wiring Diagram
1LP Conversion Instructions
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Cooktop (Black)
2Cooktop (White)
2Cooktop (Stainless)
2Cooktop (Biscuit)
3Panel, Control (Black)
3Panel, Control (White)
3Panel, Control (Biscuit)
4Cap, Burner 6K (1) (Gray)
4WP8273343 Whirlpool Burner Cap
4WP8273345 Whirlpool Burner Cap
4WP8273344 Whirlpool Burner Cap
4WP3191905 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191903 Whirlpool Burner Cap
4WP3191901 Whirlpool Burner Cap
5WPW10447925 Whirlpool Grate Kit
5Grate (4) (Espresso)
7Knob, Control (4) (White)
7Knob, Control (4) (Black)
7Knob, Control (4) (Biscuit)
10Seal, Foam
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15Holder, Orifice (Includes 13 & 14) (LF 12K)
15814513 Whirlpool Top Burner
16WP4455979 Whirlpool Range Small Burner Head
16WP4455980 Whirlpool Burner Head
16WP4455981 Whirlpool Burner Head
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
2028“
2015“
