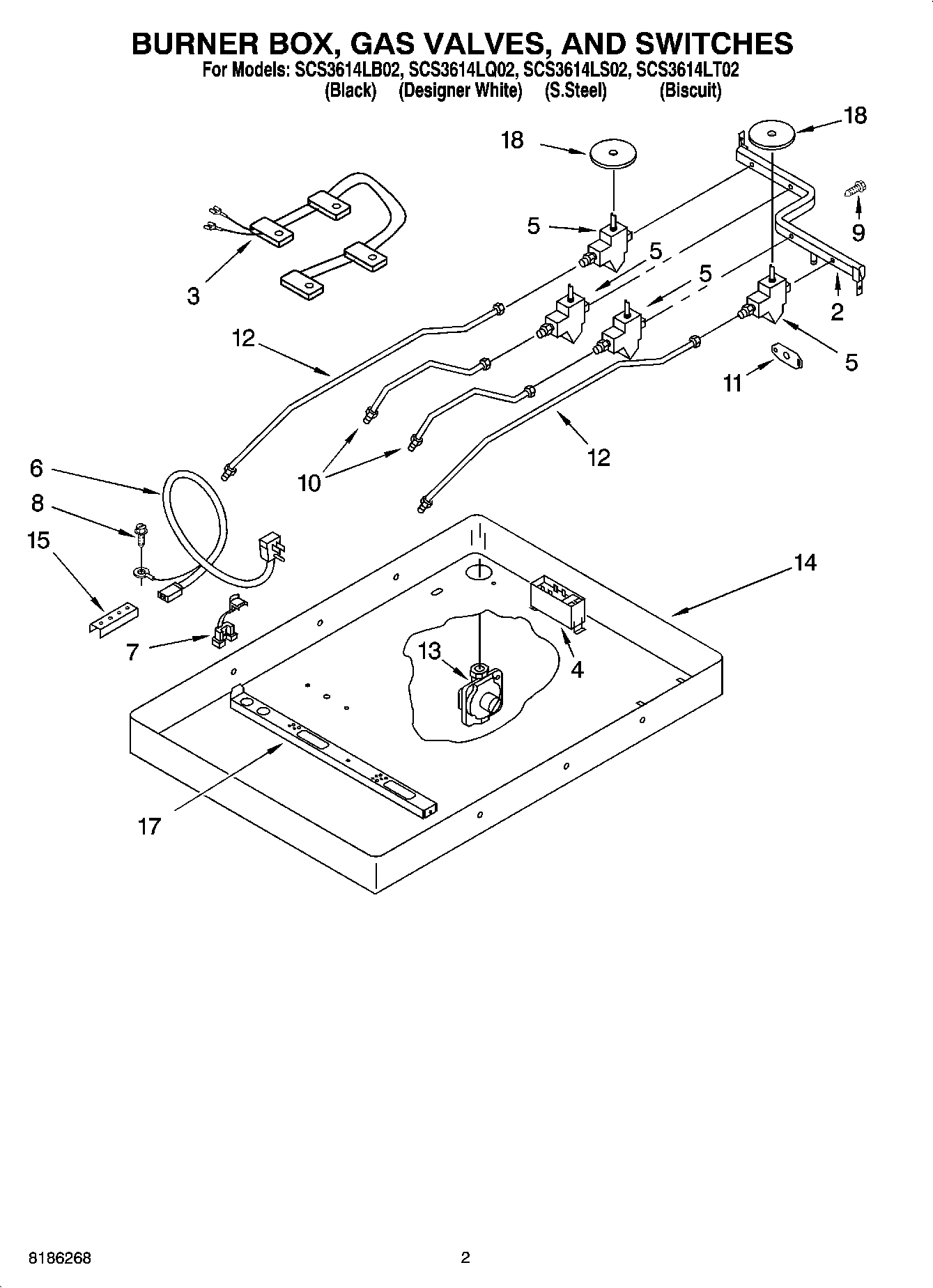

SCS3614LB02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
WP3192741 Whirlpool LP Conversion Kit
Hardware Kit (Mounting)
Following Parts Not Illustrated and Optional Parts Not Included
2W10491985 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
4WP12990527 Whirlpool Microwave Screw
5WP4456817 Whirlpool Burner Valve
5WP4456816 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
12Tubing, Burner LR & LF
13Regulator, Pressure
14WP3196557 Whirlpool Screw
14Box, Burner
158186533 Whirlpool Hardware
15WP3400093 Whirlpool Screw
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
