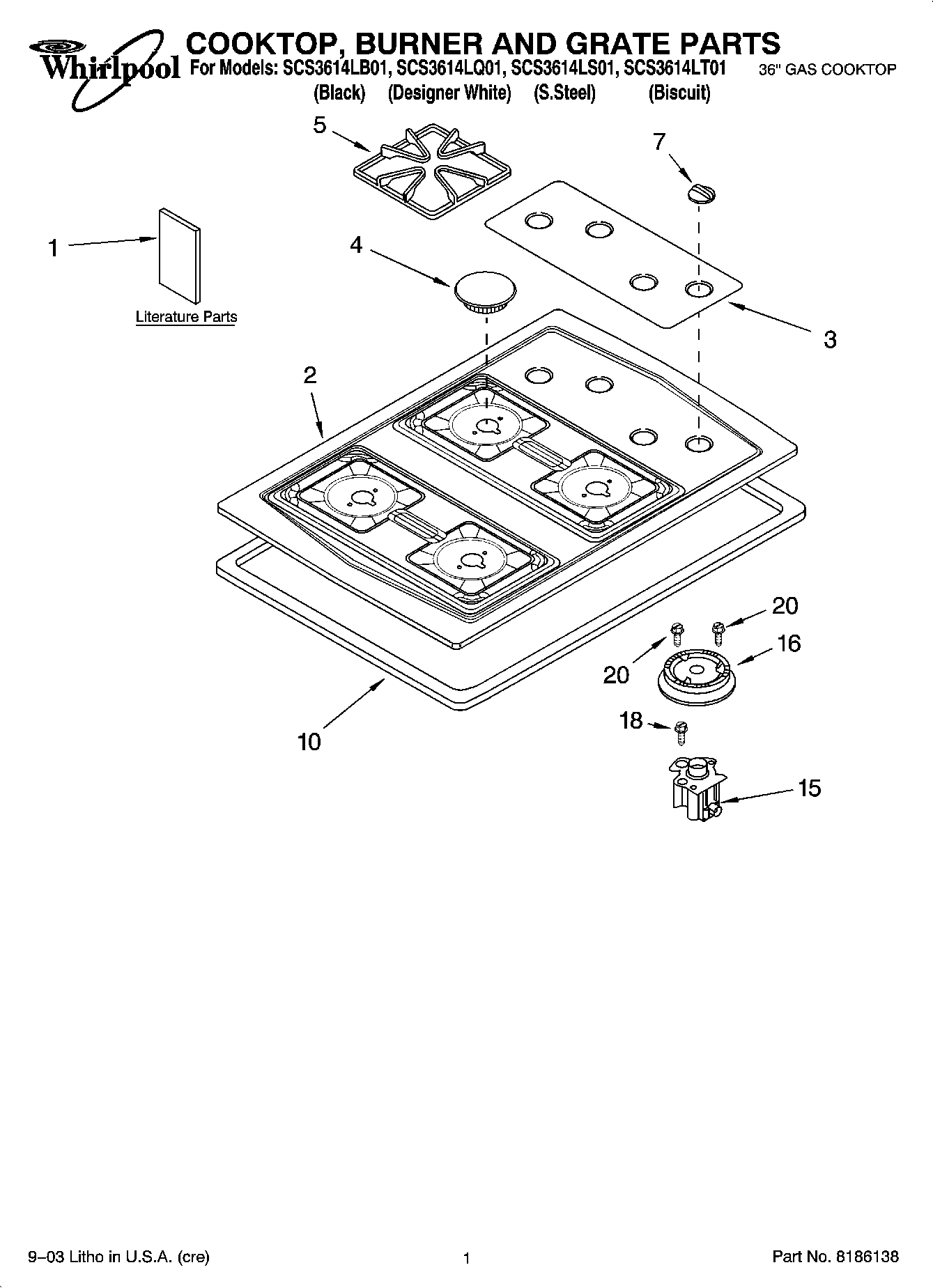

SCS3614LQ01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (LP Conversion Instructions)
1	Wiring Diagram
2	Cooktop (Stainless)
2	Cooktop (White)
2	Cooktop (Biscuit)
2	Cooktop (Black)
3	Panel, Control (Black)
3	Panel, Control (Biscuit)
3	Panel, Control (White)
4	WP8273345 Whirlpool Burner Cap
4	Cap, Burner 6K (1) (Gray)
4	WP8273343 Whirlpool Burner Cap
4	WP3191904 Whirlpool Burner Cap
4	WP8273344 Whirlpool Burner Cap
4	WP3191903 Whirlpool Burner Cap
4	WP3191901 Whirlpool Burner Cap
4	WP3191898 Whirlpool Surface Burner Cap Black
4	WP3191905 Whirlpool Burner Cap
5	Grate (4) (Espresso)
5	WPW10447925 Whirlpool Grate Kit
7	Knob, Control (4) (Biscuit)
7	Knob, Control (4) (Black)
7	Knob, Control (4) (White)
10	Seal, Foam
15	WPW10155785 Whirlpool Orifice Holder
15	WPW10155784 Whirlpool Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
18	WP4449809 Whirlpool Screw
20	FOLLOWING PARTS NOT ILLUSTRA
20	4456626 Whirlpool Wire
20	4456627 Whirlpool Wire Harness
20	WP3368921 Whirlpool Screw
20	WPL ARI128772A
