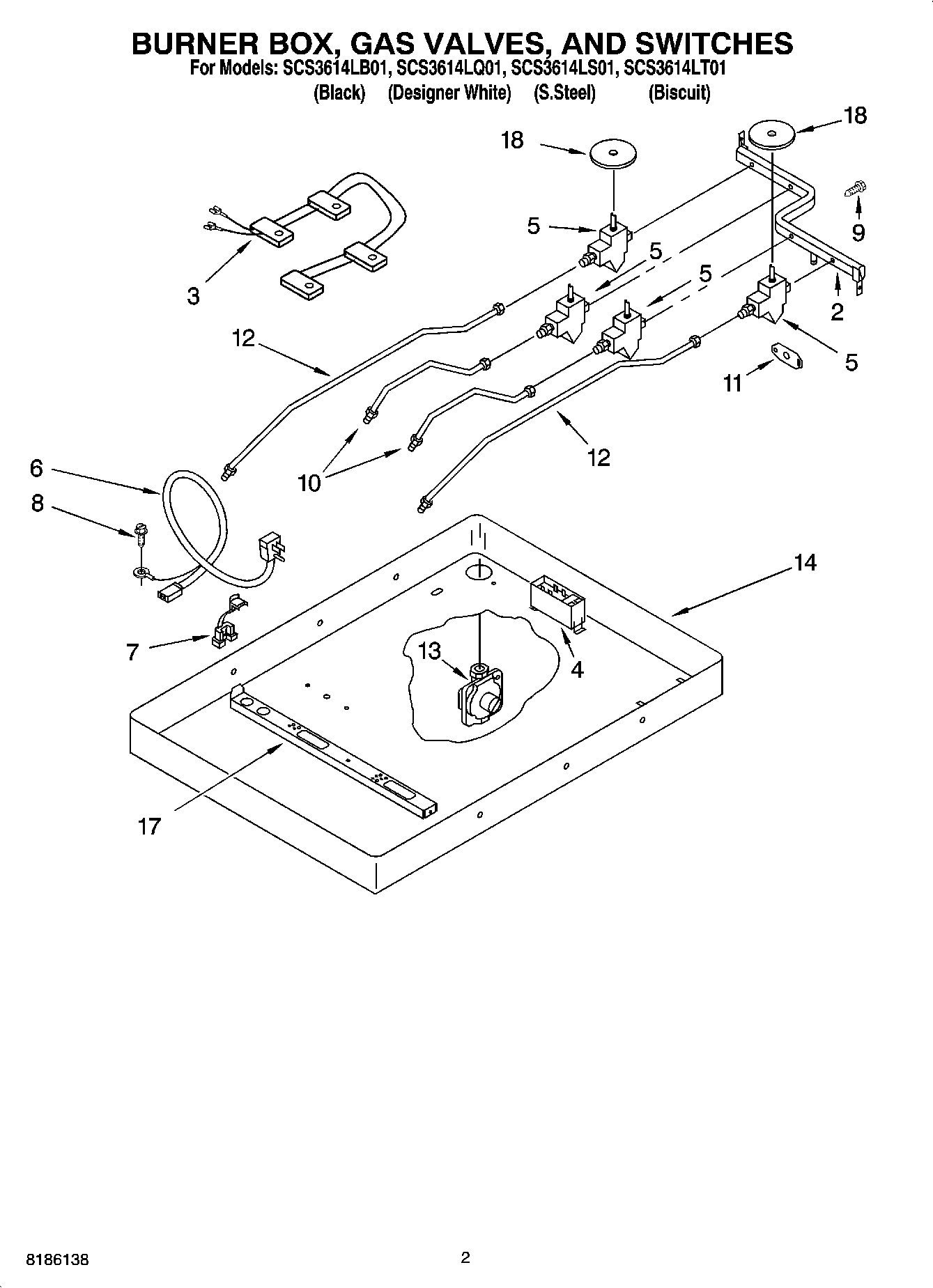

SCS3614LS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3WP3191334 Whirlpool Wire Harness
4WP12990527 Whirlpool Microwave Screw
4WPW10110491 Whirlpool Spark Module
5Valve, Burner (Small (1))
5Valve, Burner (Large (3))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
12Tubing, Burner LR & LF
13Regulator, Pressure
14Box, Burner
14WP3196557 Whirlpool Screw
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18Gas Conversion Kit (Natural Gas To LP Gas)
18Hardware Kit (Mounting)
18WP3188425 Whirlpool Seal Switch
18WP3192741 Whirlpool LP Conversion Kit
18Following Parts Not Illustrated and Optional Parts Not Included
