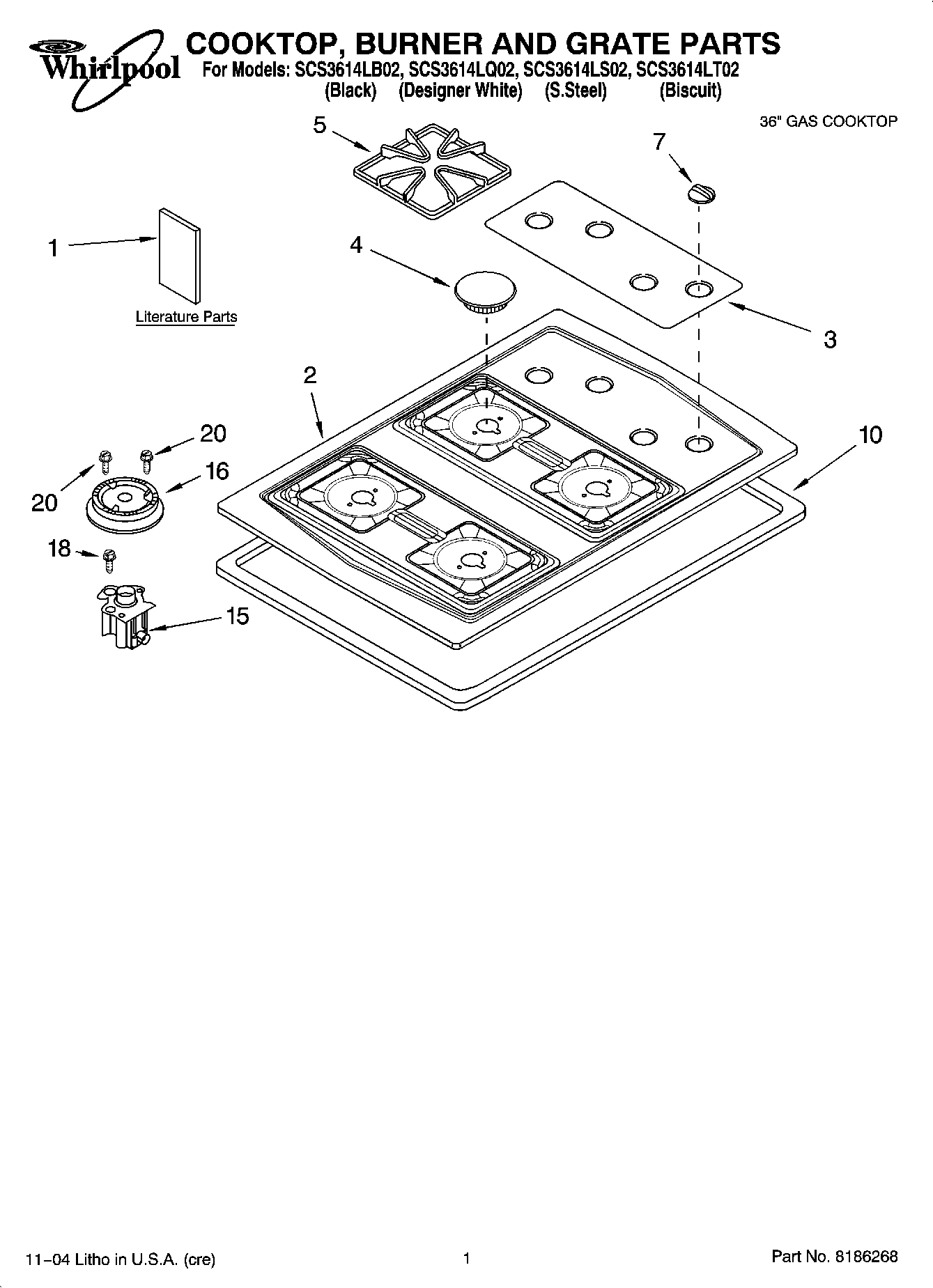

SCS3614LT02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
1	Safe Cooking Tips
1	LP Conversion Instructions
2	Cooktop (Biscuit)
2	Cooktop (Black)
2	Cooktop (White)
2	Cooktop (Stainless)
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Control (Biscuit)
4	WP3191898 Whirlpool Surface Burner Cap Black
4	WP3191901 Whirlpool Burner Cap
4	WP3191903 Whirlpool Burner Cap
4	WP3191904 Whirlpool Burner Cap
4	WP3191905 Whirlpool Burner Cap
4	Cap, Burner 6K (1) (Gray)
5	WPW10447925 Whirlpool Grate Kit
7	Knob, Control (4) (White)
7	Knob, Control (4) (Black)
7	Knob, Control (4) (Biscuit)
10	Seal, Foam
15	WPW10155784 Whirlpool Orifice Holder
15	WPW10155785 Whirlpool Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
16	WP4455981 Whirlpool Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	4456626 Whirlpool Wire
20	4456627 Whirlpool Wire Harness
20	WP3368921 Whirlpool Screw
20	FOLLOWING PARTS NOT ILLUSTRATED
20	Harness, Wire
