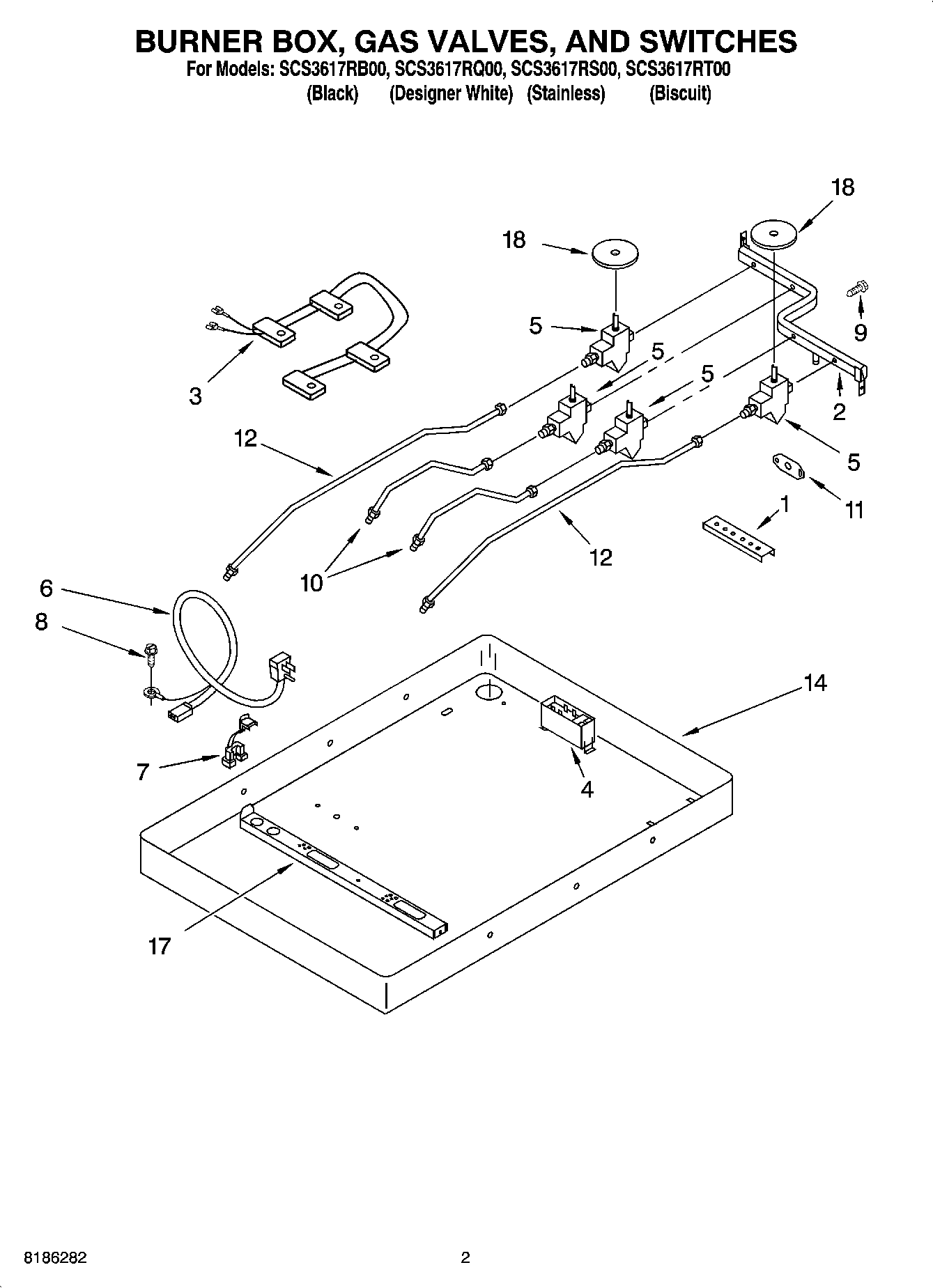

SCS3617RB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
1WP3400093 Whirlpool Screw
2W10491985 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
4WP12990527 Whirlpool Microwave Screw
5WP4456817 Whirlpool Burner Valve
5Valve, Gas Burner (Yellow)
5Valve, Gas Burner (White)
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9WP3186217 Whirlpool Screw
113192491 Whirlpool Support Bracket
12Tubing, Burner LR & LF
14Screw (4)
14Box, Burner
17W10203756 Whirlpool Support
17WP4449809 Whirlpool Screw
18WP8286320 Whirlpool Spud Orifice
18Hardware Kit (Mounting)
18WP3188425 Whirlpool Seal Switch
18Following Parts Not Illustrated and Optional Parts Not Included
