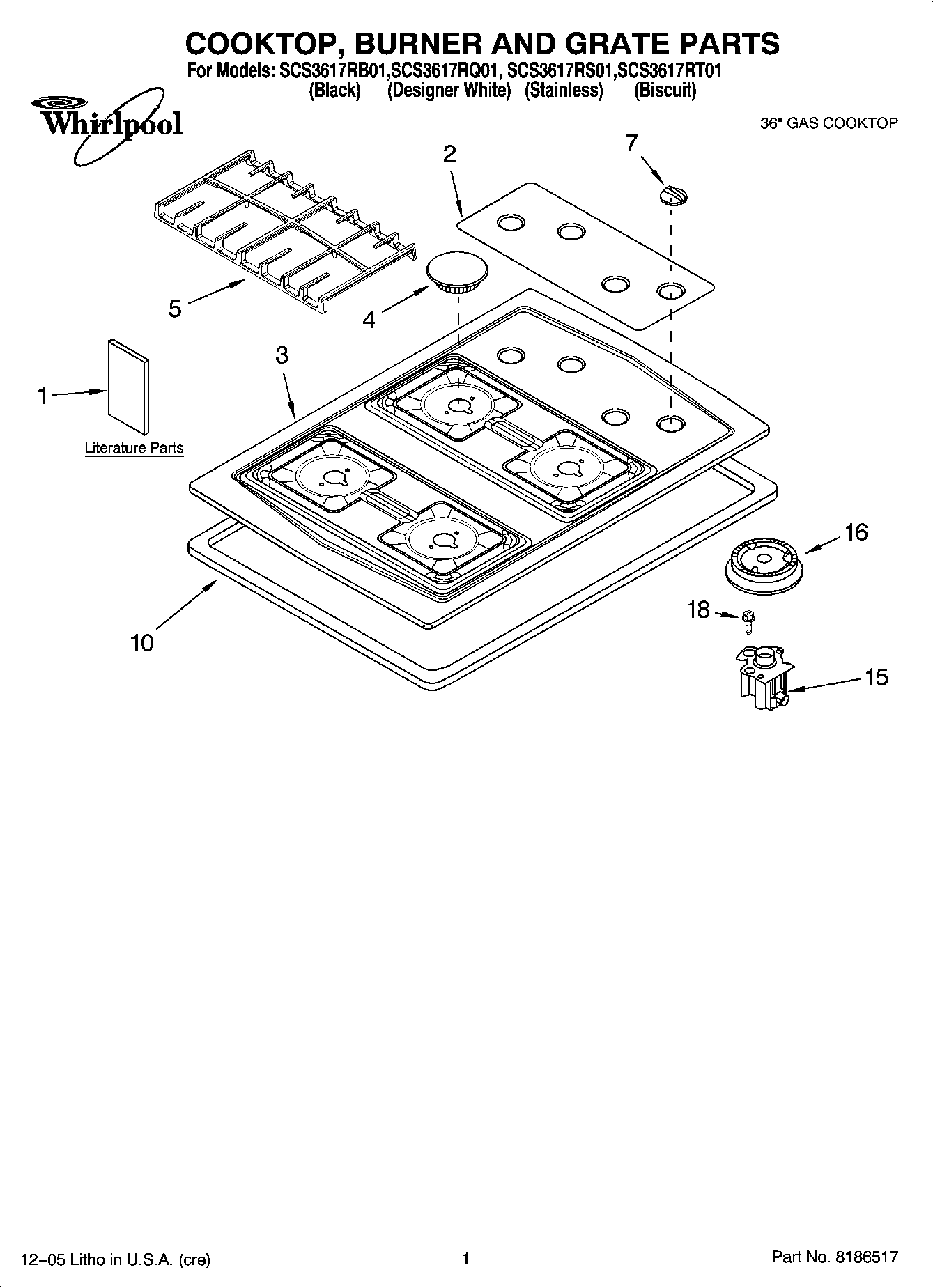

SCS3617RB01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Installation Instructions
1Use & Care Guide
1L.P. Conversion Instructions
1Wiring Diagram
2Panel, Control (Biscuit)
2WP8286502 Whirlpool Control Panel
28286503 Whirlpool Oven Control Panel
3Cooktop (Biscuit)
3Cooktop (White)
3Cooktop (Black)
3WPW10140169 Whirlpool Cooktop
4Cap, Burner 9.5K (LR) (Espresso)
4Cap, Burner 6K (RR) (Espresso)
4WP8286155CG Whirlpool Burner Cap
4WP8286153CG Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
48286155EP Whirlpool Burner Cap
4WP8286154CG Whirlpool Burner Cap
5Grate Right (Cumberland Gray)
5Grate Right (Coal Matte Black)
5Grate Left (Coal Matte Black)
5Grate Left (Cumberland Gray)
5Grate Left (Espresso)
5Grate Right (Espresso)
7WP8286057BL Whirlpool Knob Replacement
78286057BT Whirlpool Knob
7WP8286057WH Whirlpool Knob
10Seal, Foam
15WPW10128449 Whirlpool Orifice Holder
15WPW10128451 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
184456627 Whirlpool Wire Harness
18WP4449809 Whirlpool Screw
184456626 Whirlpool Wire
18WPL ARI128792A
